2.42inch Display Screen Pixhaw Flight Control Voltage Showing

  • Product: 2.42inch OLED Display Screen
  • Measurement: 72*43*5.2mm
  • N.W.: about 21.9g

  • Parameters
  • Product: 2.42inch OLED Display Screen
  • Measurement: 72*43*5.2mm
  • N.W.: about 21.9g

2.42inch Display Screen Pixhaw Flight Control Voltage Showing OLED Current Module For DIY Drone JMRRC


Specification:

Driver chip: SSD1309

Supporting Interface: I2C

Resolution: 128*64

Display color: white

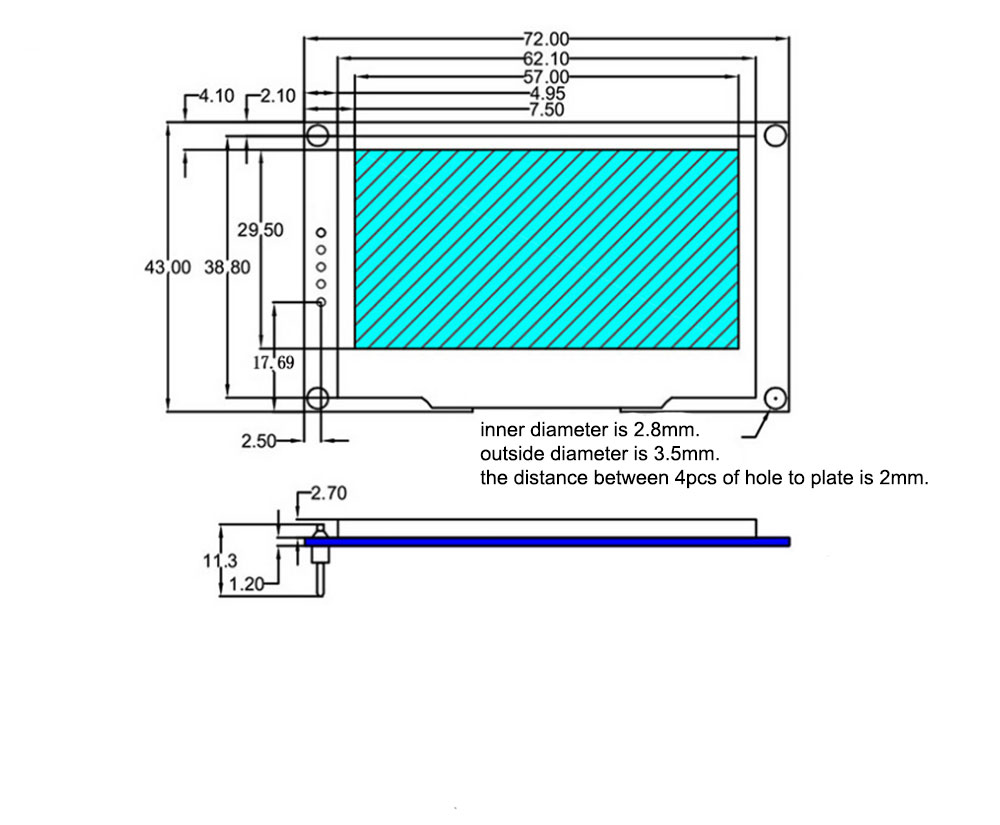

Screen outside size: 72*43*5.2mm

Display area size: 55.01*27.49mm

Character size: 0.43*0.43mm

Dot size: 0.40*0.40mm

Pin: 5pin

Power dissipation: normal display 80ma-120max

Working temperature: -40℃-70℃

Storage temperature: -40℃-80

Power supply: 5V








2.42inch Display Screen Pixhaw Flight Control Voltage Showing
