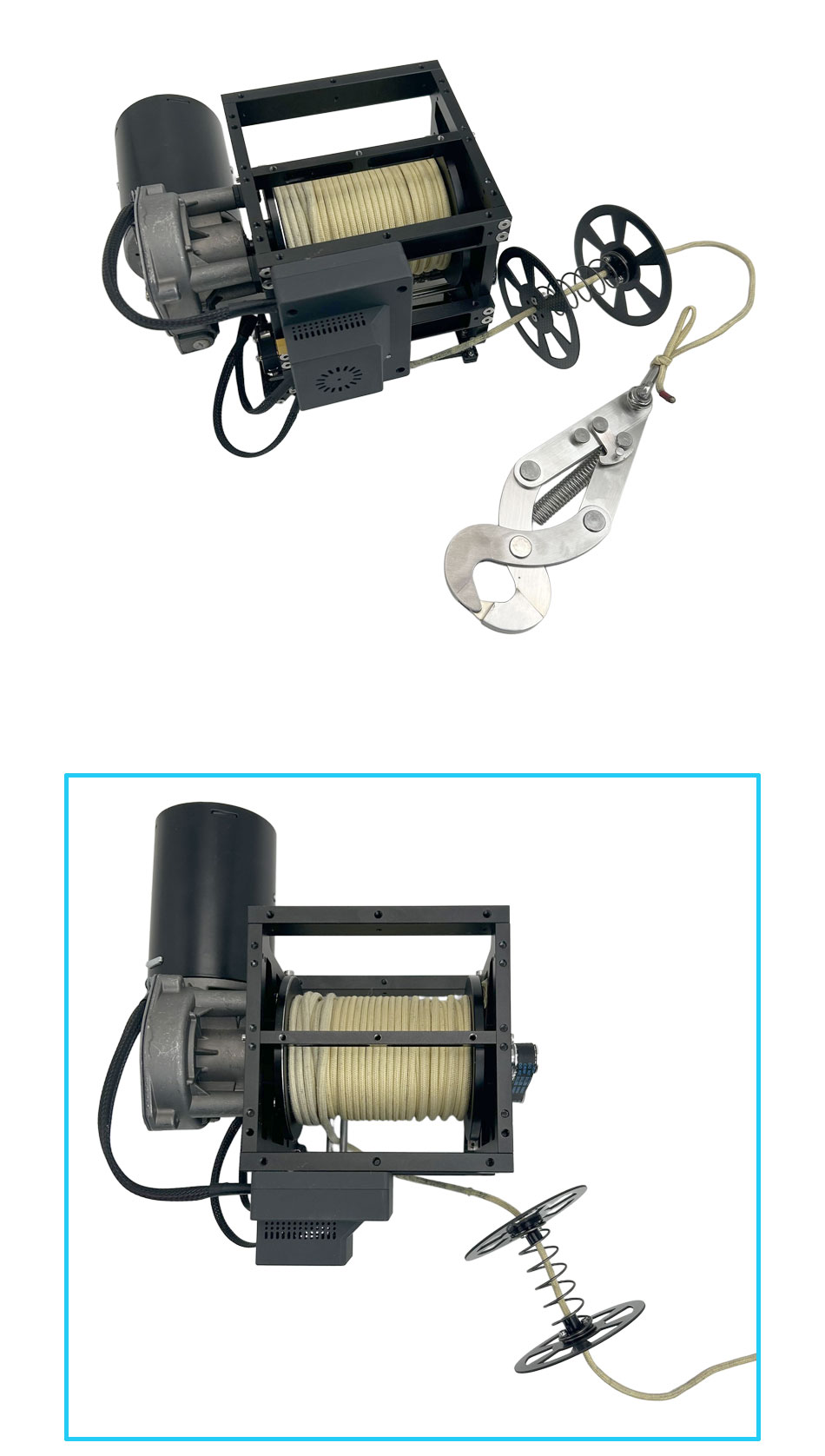

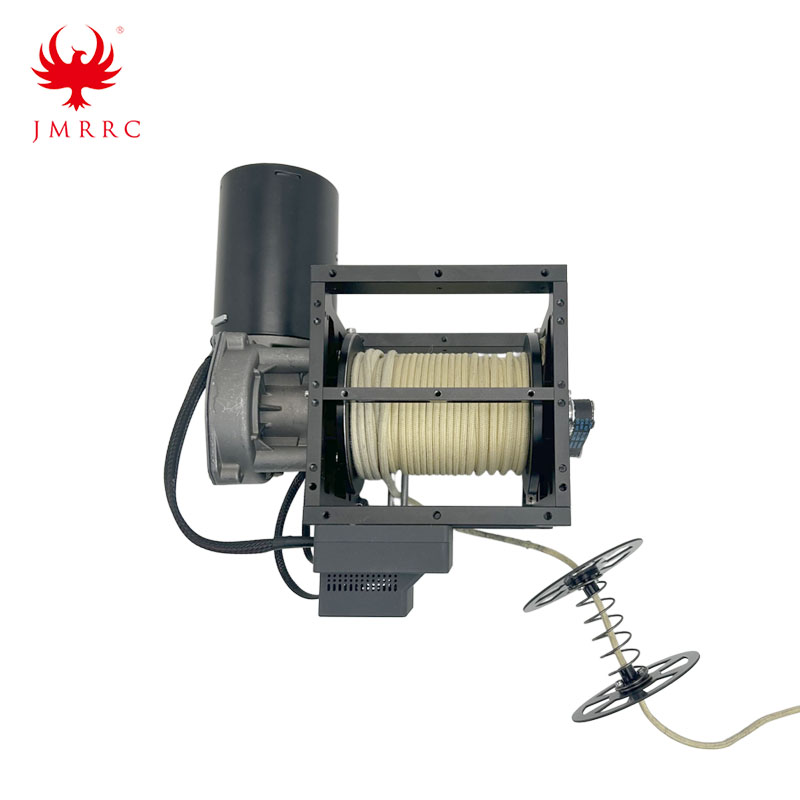

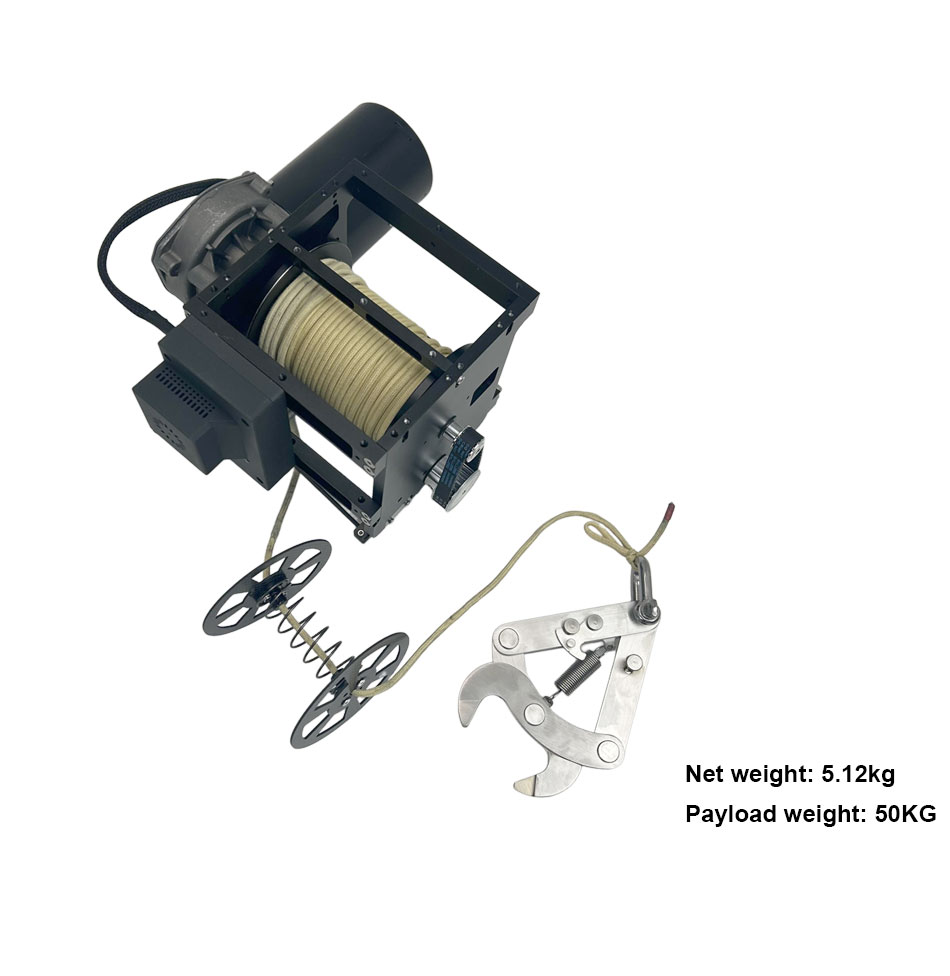

50kg Remote Control Electric Winch DC Motorized Lifting Winch with 30m Rope for Equipment
The DW50 DC Remote Control Electric Winch is designed for reliable lifting and lowering applications. It features a 30m rope, 50kg rated load and 55kg maximum load, with lifting speed of 5.5–6 m/min and lowering speed of 7–8.5 m/min. Powered by a 200W motor, the winch supports remote-controlled operation for convenient and precise movement. Its compact structure and integrated overload protection make it suitable for installation on various equipment. The winch uses PWM control and provides stable lifting performance for equipment handling and material lifting applications.
Specification:
Model | DW50 | Net Weight | 5.12kg |
Operating voltage | 40-80V | Max power | 200W |
Rope length | 30m | Lifting speed | 5.5-6m / min |
Rated load | 50kg | Lowering speed | 7-8.5m / min |
Max load | 55kg | Control signal | PWM |
Application Scenarios
1- Logistics and Transportation
- Material delivery in special terrains such as mountainous areas and islands
- Cross-building transportation within industrial zones
- Heavy goods delivery for the 'last mile'
2- Emergency Rescue
- Airdropping supplies at disaster sites
- Deployment of water rescue equipment
- Hoisting power repair equipment
3- Engineering Construction
- Transporting tools and materials at construction sites
- Assisting in the installation of high-altitude equipment
- Hoisting bridge inspection equipment
4- Agricultural Operations
- Material distribution on large-scale farms
- Feed delivery for aquaculture
- Precise pesticide spraying in orchards
