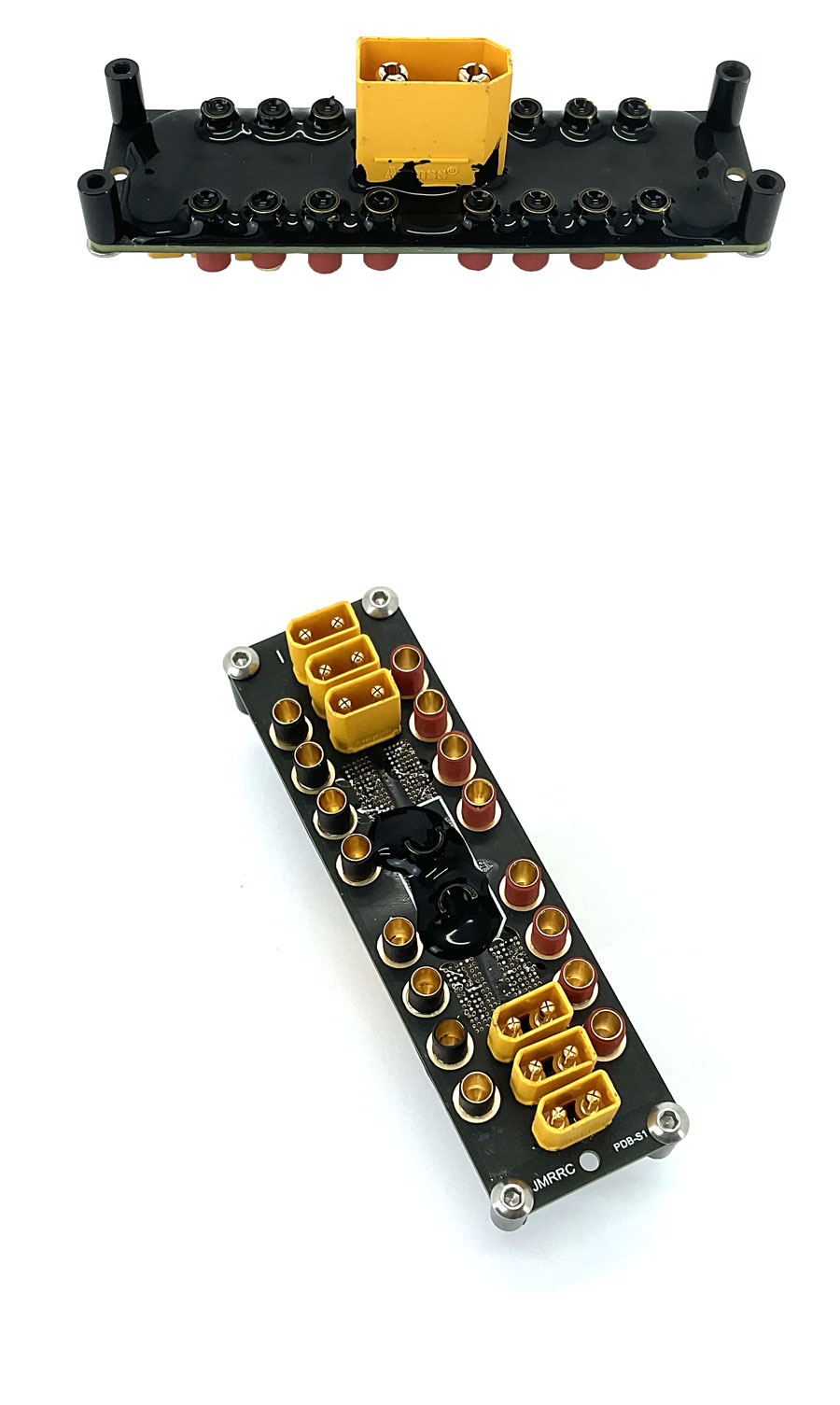

6S Power Distribution Board With XT90 Male Plug

  • N.W.: about 48g

  • Parameters
  • N.W.: about 48g

DIY 6S Power Distribution Board XT90 Male Plug Board Drone Battery Plug Connector PDB Board For Multirotor Drone JMRRC



Package Including:

PDB-S1 with XT90 plug * 1pcs (Soldering the 3.0mm gold connector and XT30 plug well)

M3*6mm standoffs * 4pcs

Screws * 1 set


Features:

1- Mainly used for drone carbon fiber frame kit.

2- With small size, assmebled on the drone frame side plate, save the center plate assembling space.

3- Soldering the XT90 male plug directly on the PDB board. No need to use the power cables, this way can bear larger current.

4- The negative and positive power are arrange up and down, which is convenient for multiple rotor drone.

5- Using 3.5mm gold connector (rated current is 25A) and XT30 plug (rated current is 20A). This PDB board is suitable for 120A rated current, peak current within 180A drone all can be used as well.

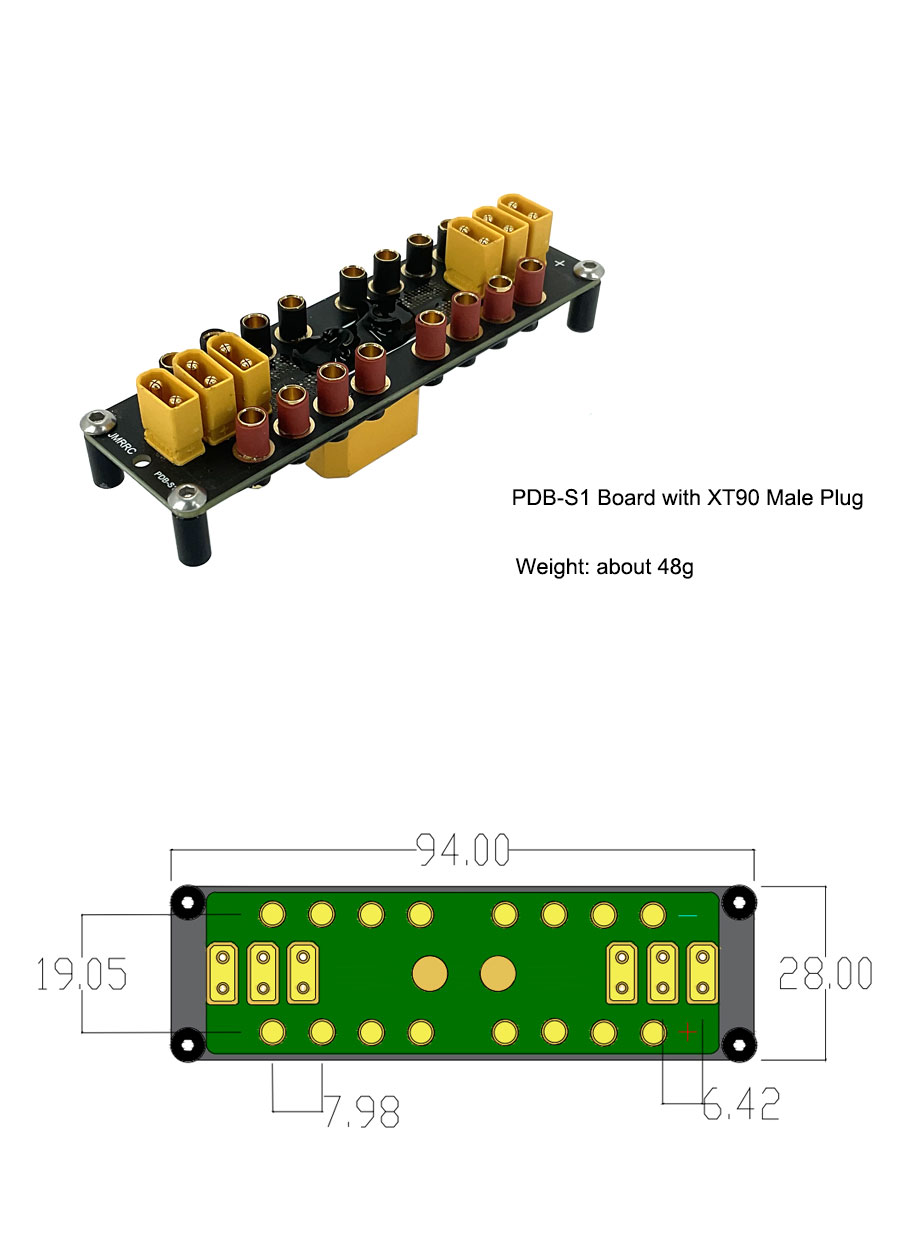

6S Power Distribution Board With XT90 Male Plug
