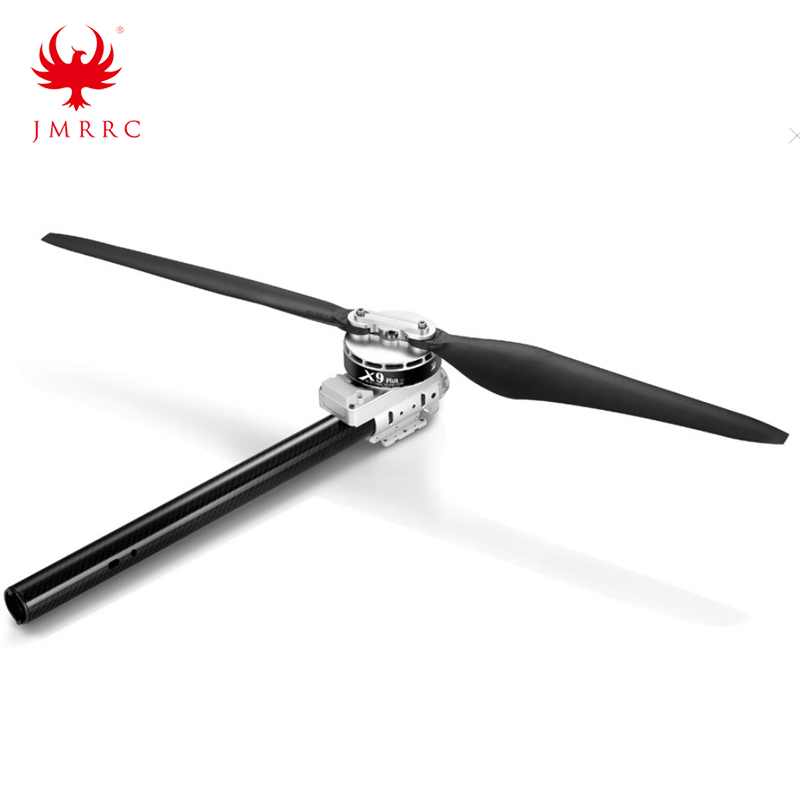

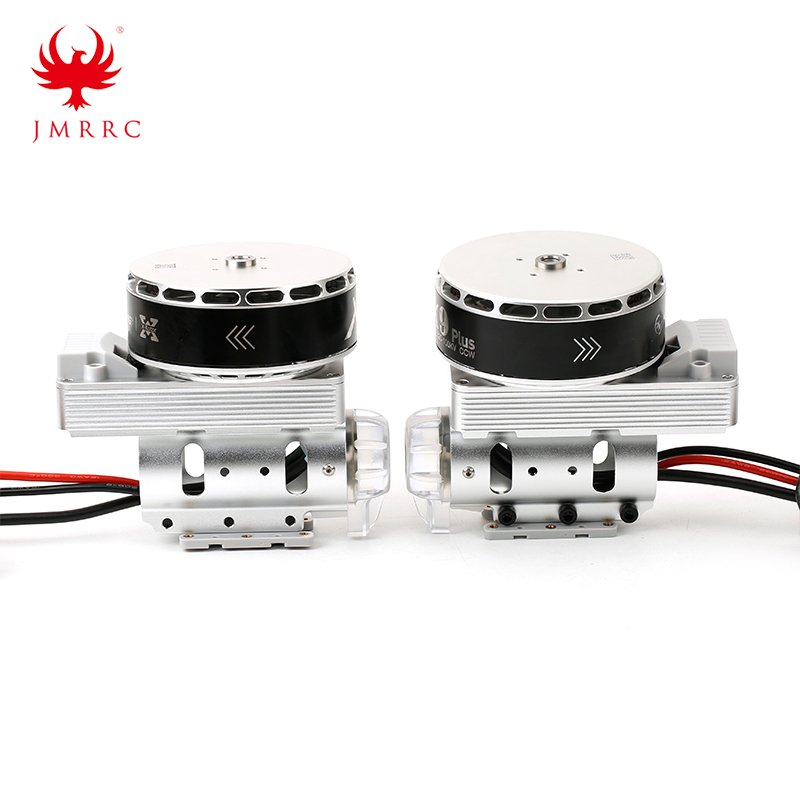

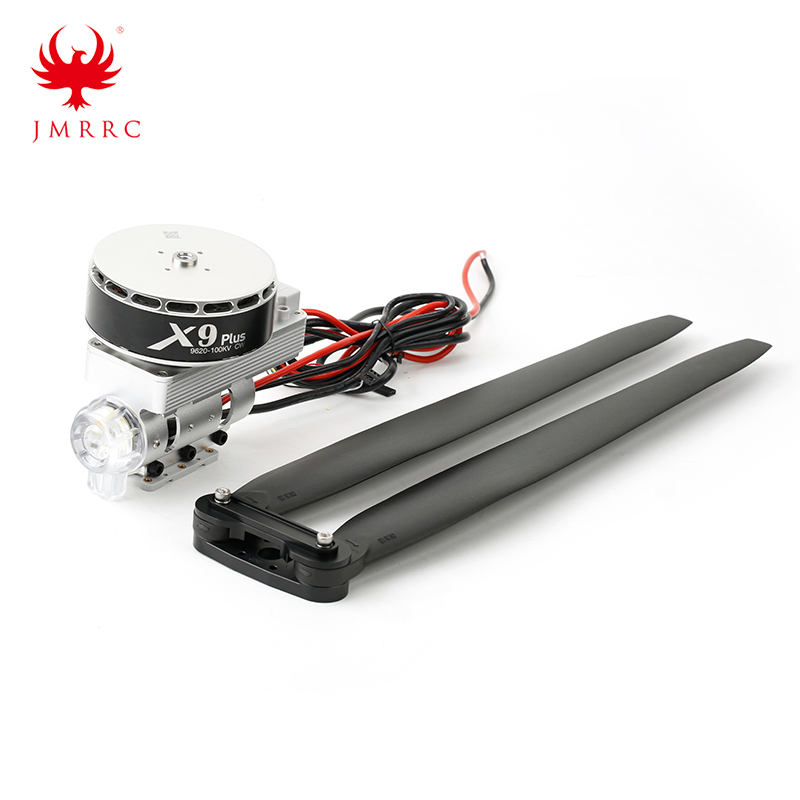

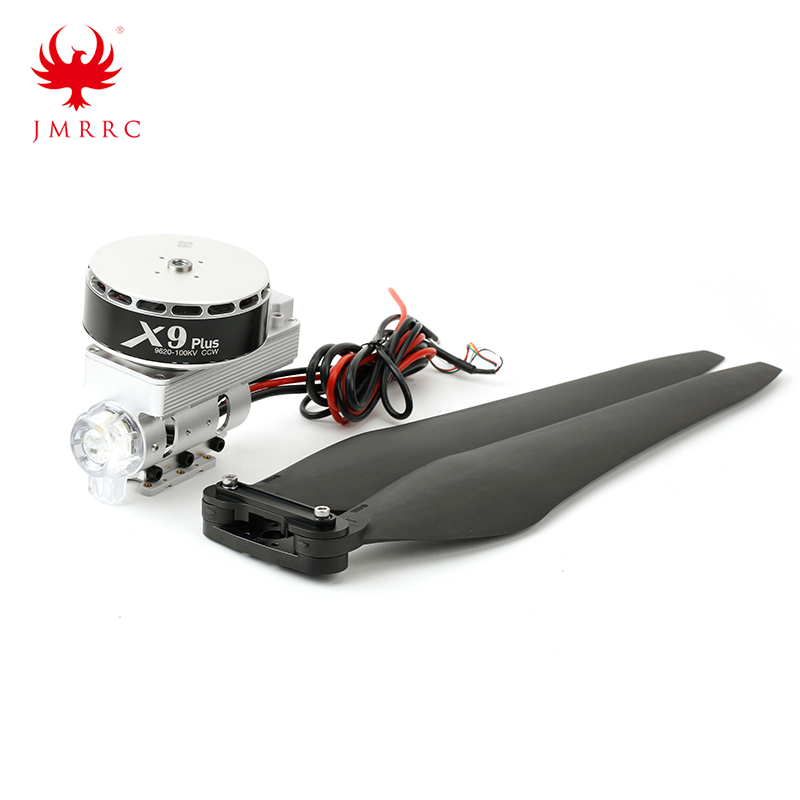

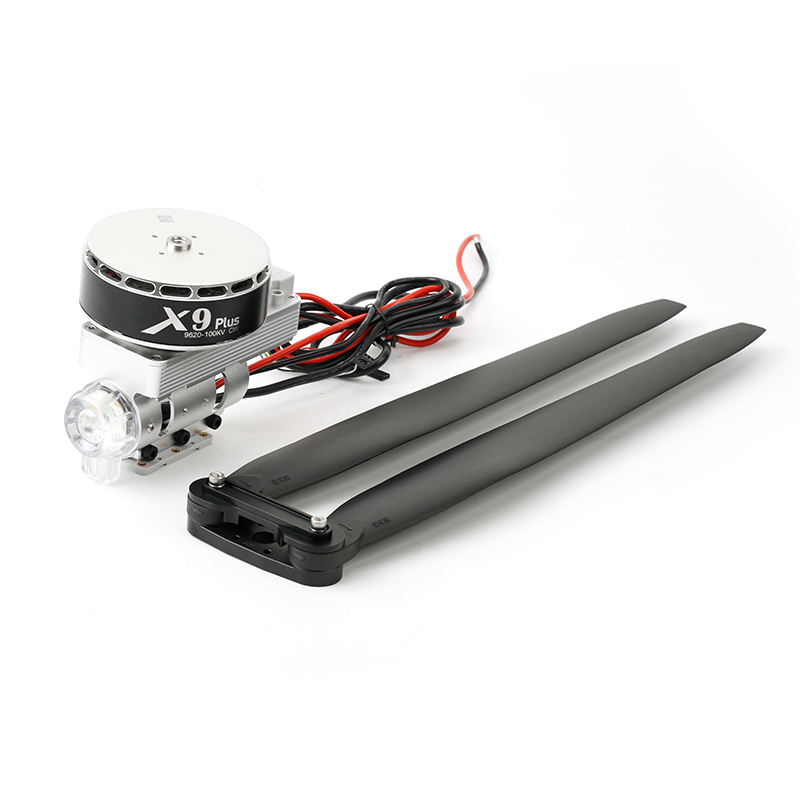

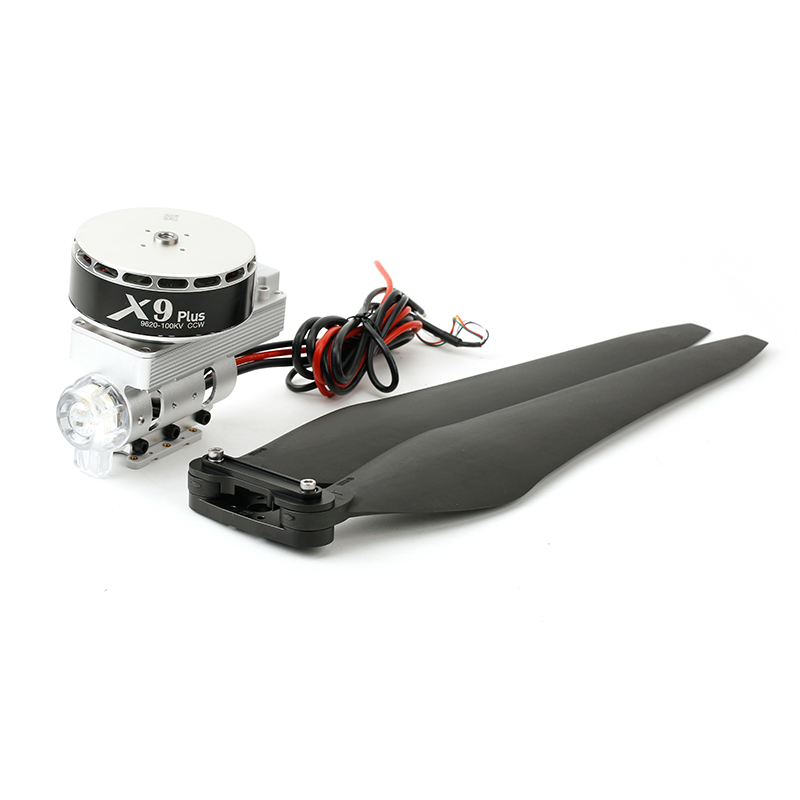

Hobbywing X9 Plus 14S Power System 9620 Motor 36inch Propeller For Agriculture Drone Multirotors

  • Model Number: Hobbywing X9
  • Measurement: 96*20mm
  • N.W.: 1774g

  • Parameters
  • Model Number: Hobbywing X9
  • Measurement: 96*20mm
  • N.W.: 1774g

Hobbywing X9 Plus 14S Power System 9620 Motor 36inch Propeller For 20L 25KG Agriculture Drone Multirotors


Product Name: X9 Plus

Speicifcations:

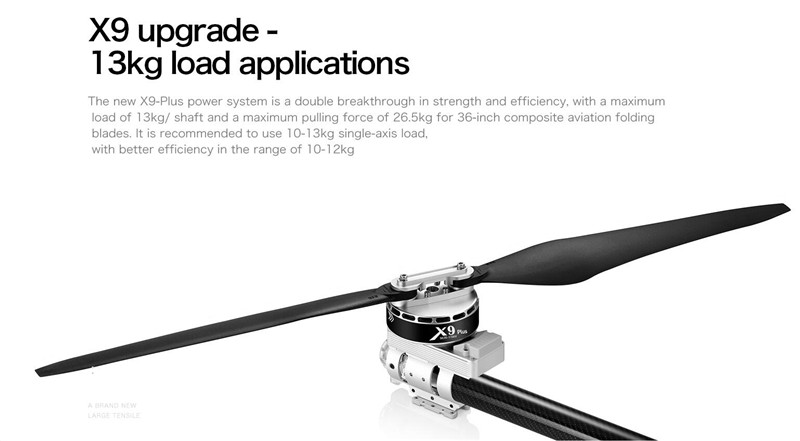

Max. Thrust : 26.5kg/Axis (53.6V, Sea Level)

Recommended Take-off Weight : 11-13kg/Axis (53.6V, Sea Level)

Recommended Lipo Battery : 14S (Lipo)

Operating Temperature : -20-50℃

Combo Weight : 1774g

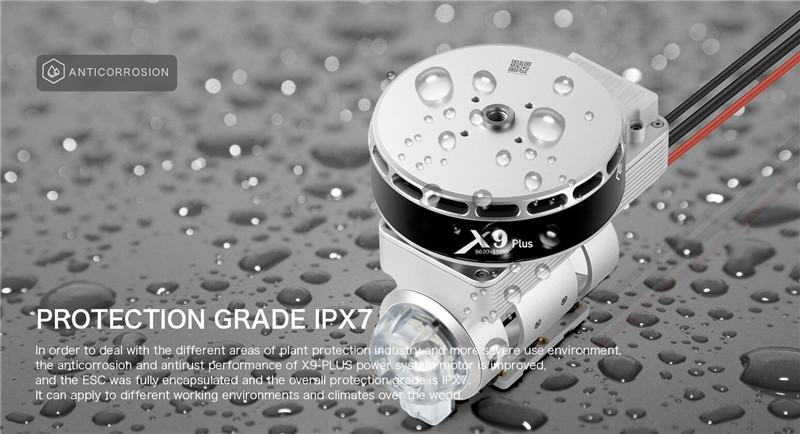

Waterproof Rating : IPX7

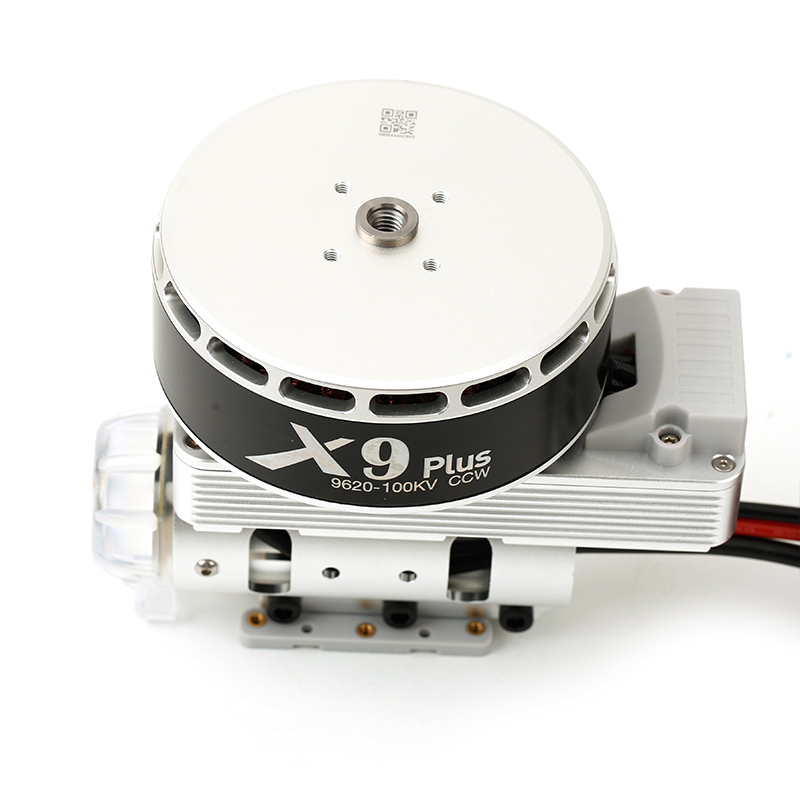

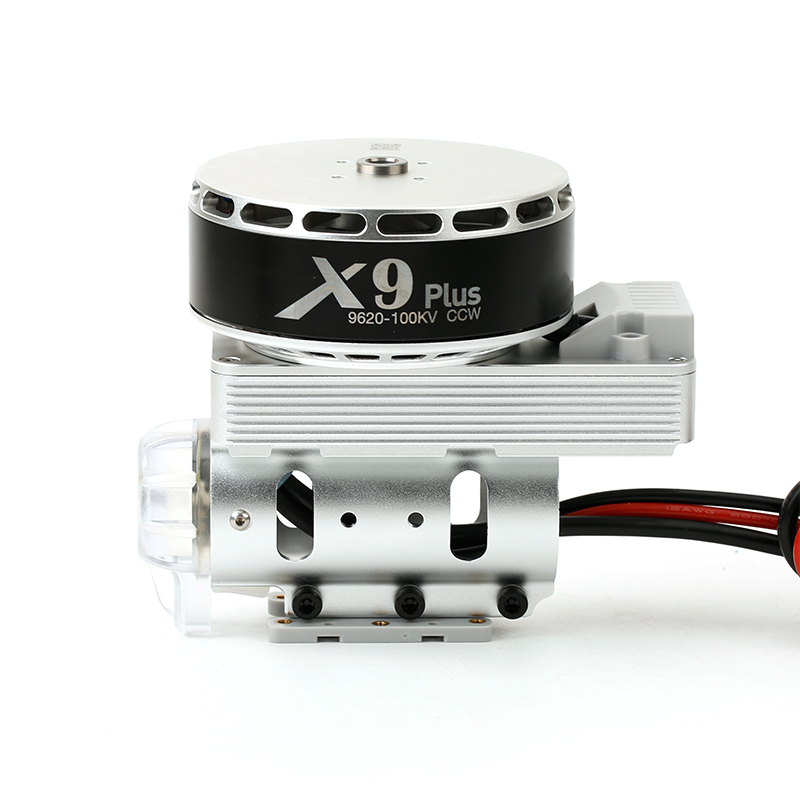

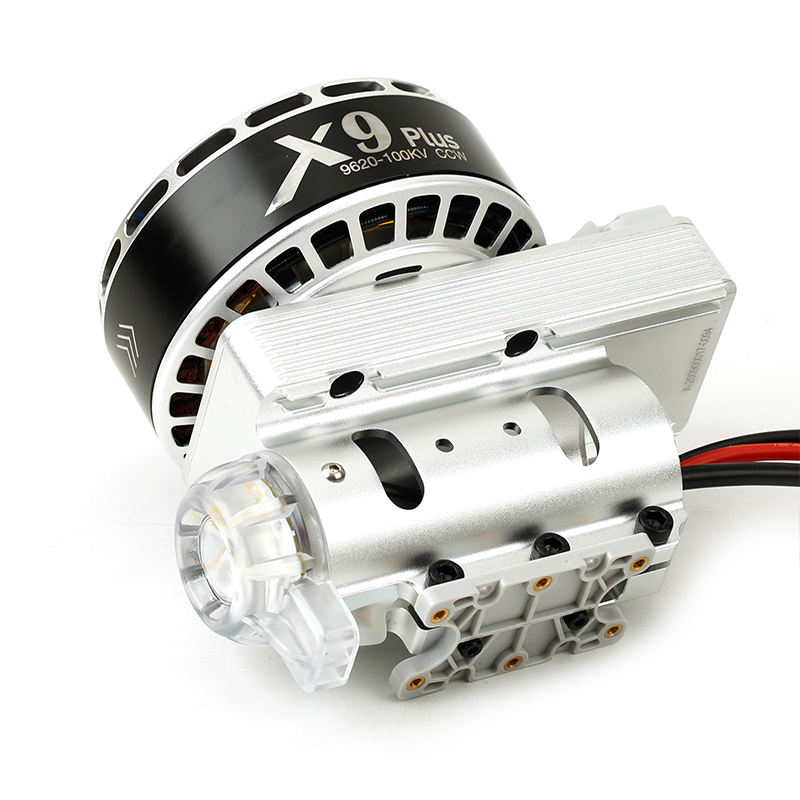

Motor:

KV Rating : 100KV

Stator Size: 96*20mm

Bearing : Bearings imported from Japan


ESC:

Recommended Lipo Battery : 6-14S Lipo

PWM Input Signal Level : 3.3V/5V (compatible)

Throttle Signal Frequency : 50-500Hz

Operating Pulse Width : 1050-1950us (Fixed or cannot be programmed)

Max. Input Voltage : 60.9V

Max. Input Current (short duration) : 120A (w/Good Heat Dissipation)

BEC : No

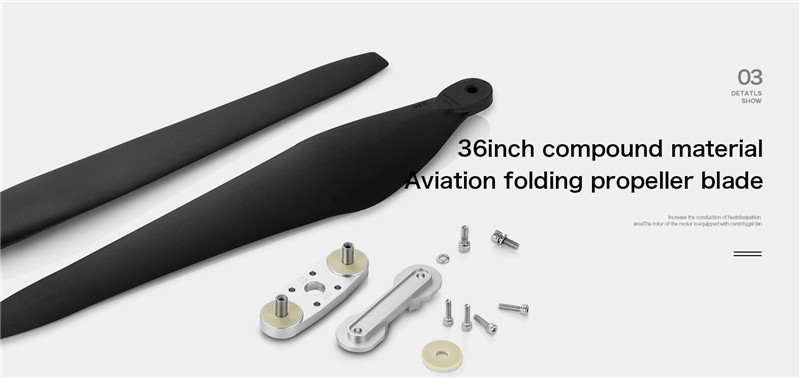

Propeller:

Diameter * Pitch : 36*120inch

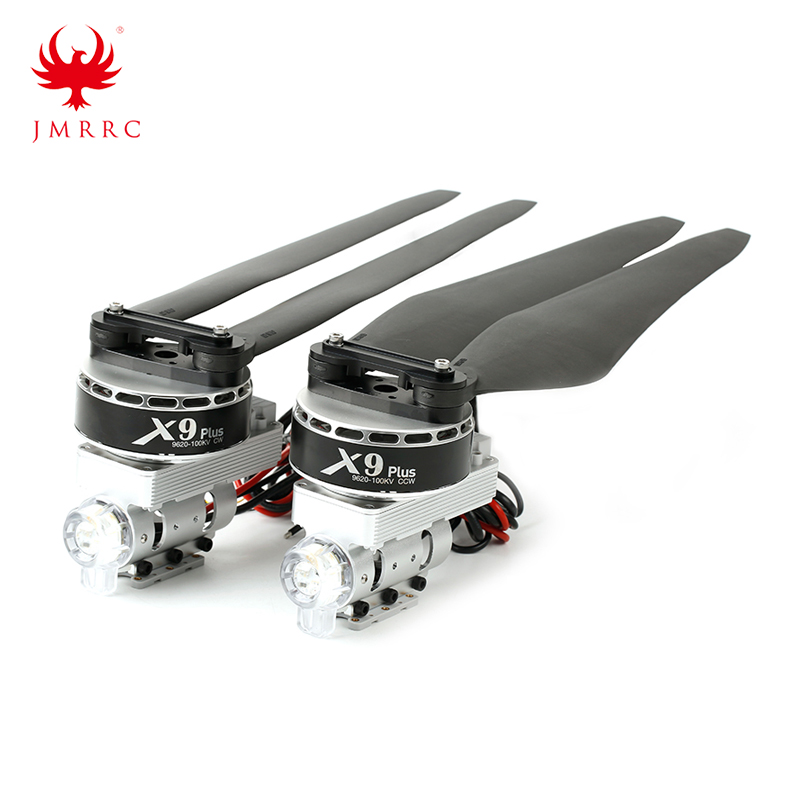

Hobbywing X9 Plus 14S Power System 9620 Motor 36inch Propeller For Agriculture Drone Multirotors
