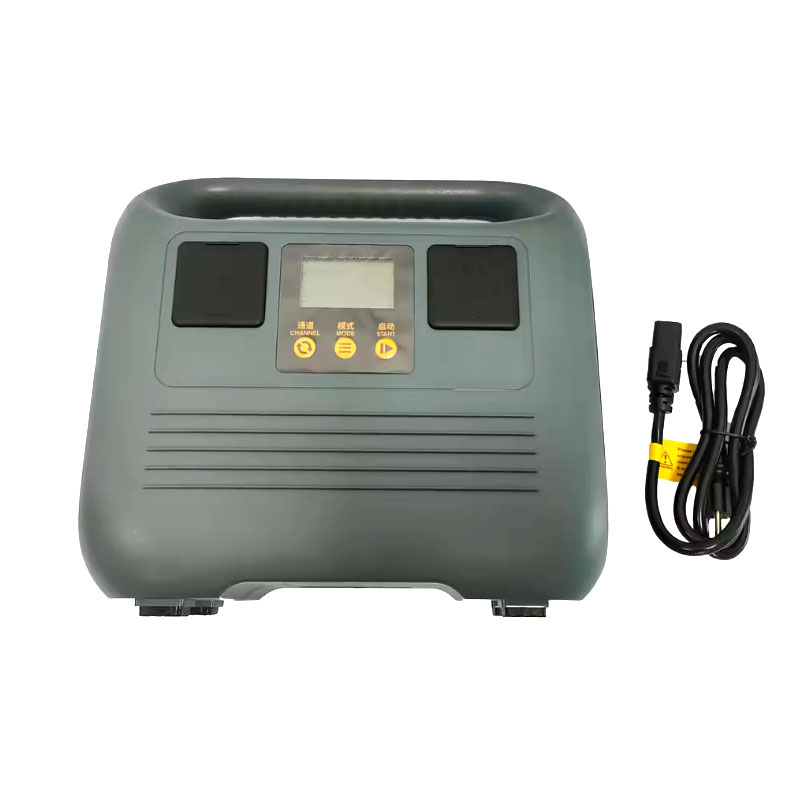

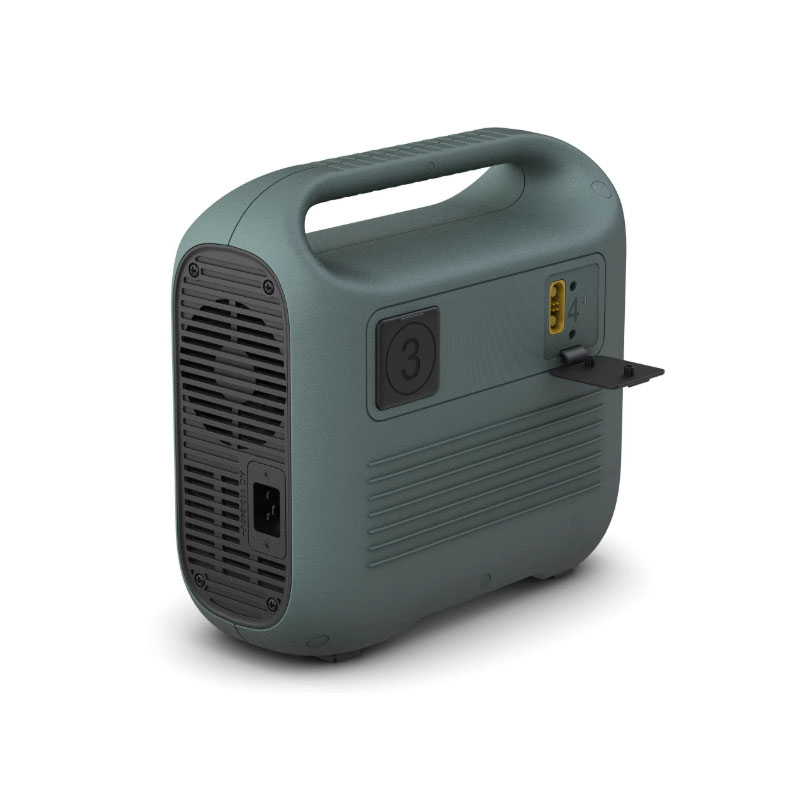

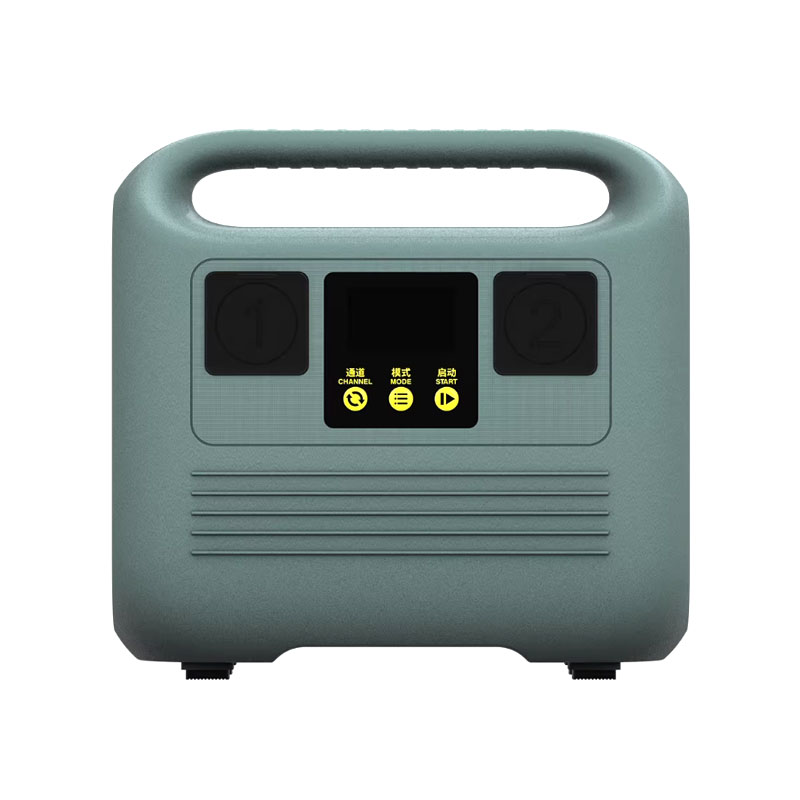

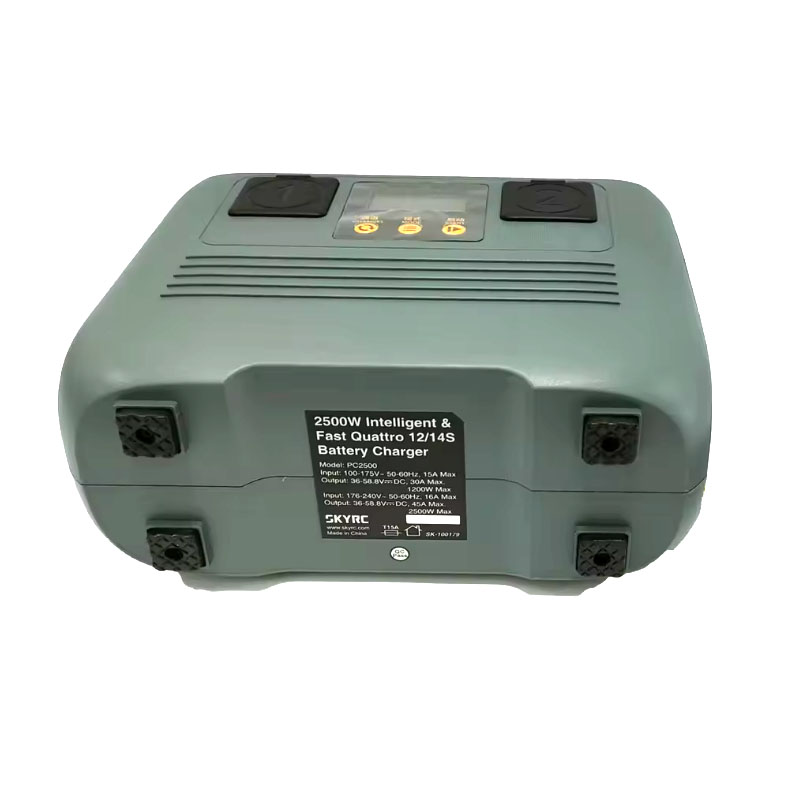

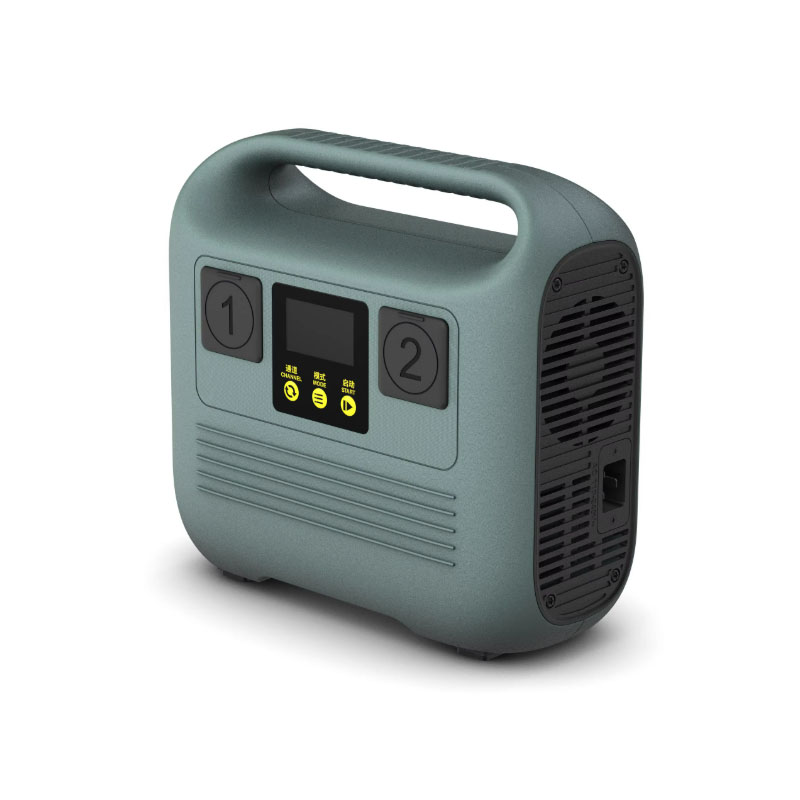

PC2500 12S/14S 2500W 45A Battery Charger

SKYRC 12S/14S PC2500 Charger 2500W 45A Fast Charging Lithium Battery Charger for Agricultural UAV Drone

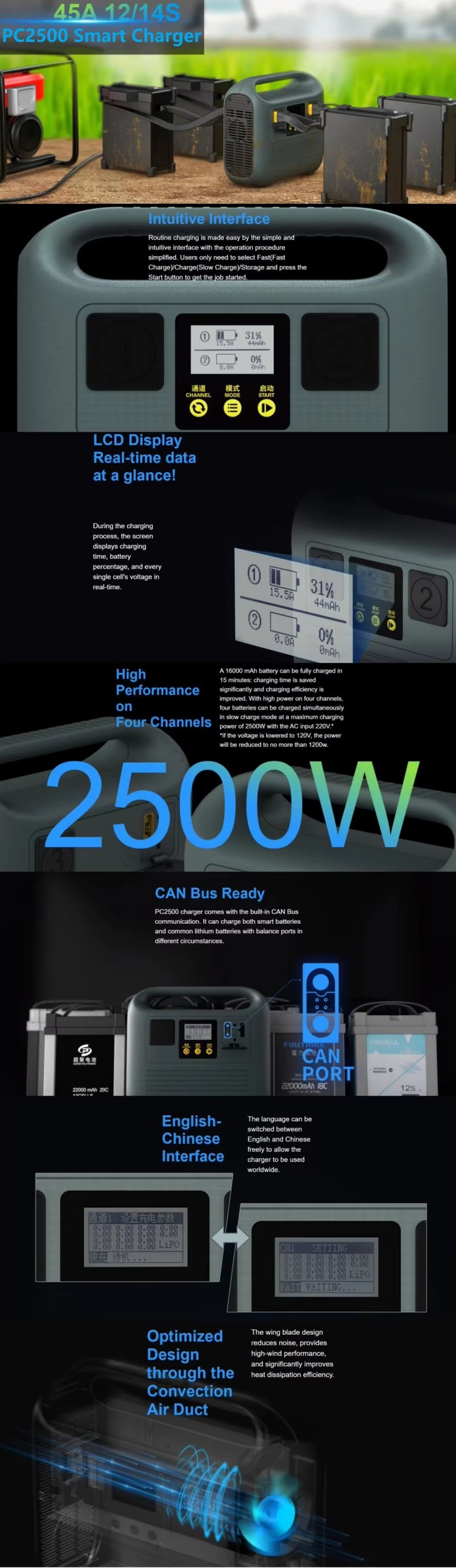

1- SkyRC PC2500 is an intelligent charger that integrates CAN communication for smart batteries and ordinary lithium batteries. It can connect four batteries at the same time. The charger's maximum output power is up to 2500W, with three modes: Fast(Fast Charge), Charge(Slow Charge), Storage. The charger can recognize the batteries with customized CAN communication instantly. Charging is convenient and straightforward with a better user experience.

2- LCD Display Real-time data at a glance: During the charging process, the screen displays charging time, battery percentage, and every single cell's voltage in real-time.

3- High Performance on Four Channels: A 16000mAh battery can be fully charged in 15 minutes: charging time is saved significantly and charging efficiency is improved. With high power on four channels, four batteries can be charged simultaneously in slow charge mode at a maximum charging power of 2500W with the AC input 220V.*
*If the voltage is lowered to 120V, the power will be reduced to no more than 1200w.

4- CAN Bus Ready: PC2500 charger comes with the built-in CAN Bus communication. It can charge both smart batteries and common lithium batteries with balance ports in different circumstances.

5- Better Protection with Conformal Coating: Anti-corrosion paint is applied to protect the key circuit's electronic components from extreme environments like moisture, mildew, and smoke corrosion. The charger's reliability and stability are ensured for outdoor work.

Specification

Size and Weight

Housing Material: Plastic (Flame Retardant PC+ABS)

Size: 294mmx139mmx282mm
Weight: 5.6Kg

Power Supply

AC Input: 100-240V
Charging Power: AC220V:2500W  /   AC120V:1200W

Battery

Type:Lithium Battery
LiPo Battery Cells: 12S/14S
LiHV Battery Cells:12S

Charge/Discharge

AC 220V

Fast Charge Current: max. 45A single channel
Slow Charge Current: max. 20A single channel; max. 45A multi channels in total

AC 120V

Fast Charge Current: max. 1200W single channel
Slow Charge Current: max. 20A single channel; max. 1200W multi channels in total

Storage Discharge Power

Main Port: 75W Max.
Balance Port: 80W Max. (The current will be adjusted based on the balance port’s temp)

Max Charge Output Power

AC220V Output Power: 2500W
AC120V Output Power: 1200W

Discharge Power:60W
Charging Mode:Fast Charge, Slow, Storage

Working and Storage

Working Temperature: 0℃-40℃
Working Humidity: 0%-75%
Storage Temperature: -10℃-70℃
Storage Humidity: 0%-75%
