8L Big Flow Rate Brushless Water Pump Built-In ESC 12S-14S Sprayer Diaphragm Pump
- N.W.： about 698g
- Parameters
- N.W.： about 698g
8L Big Flow Rate Brushless Water Pump Built-In ESC 12S-14S Sprayer Diaphragm Pump For Agriculture Spraying Drone JMRRC

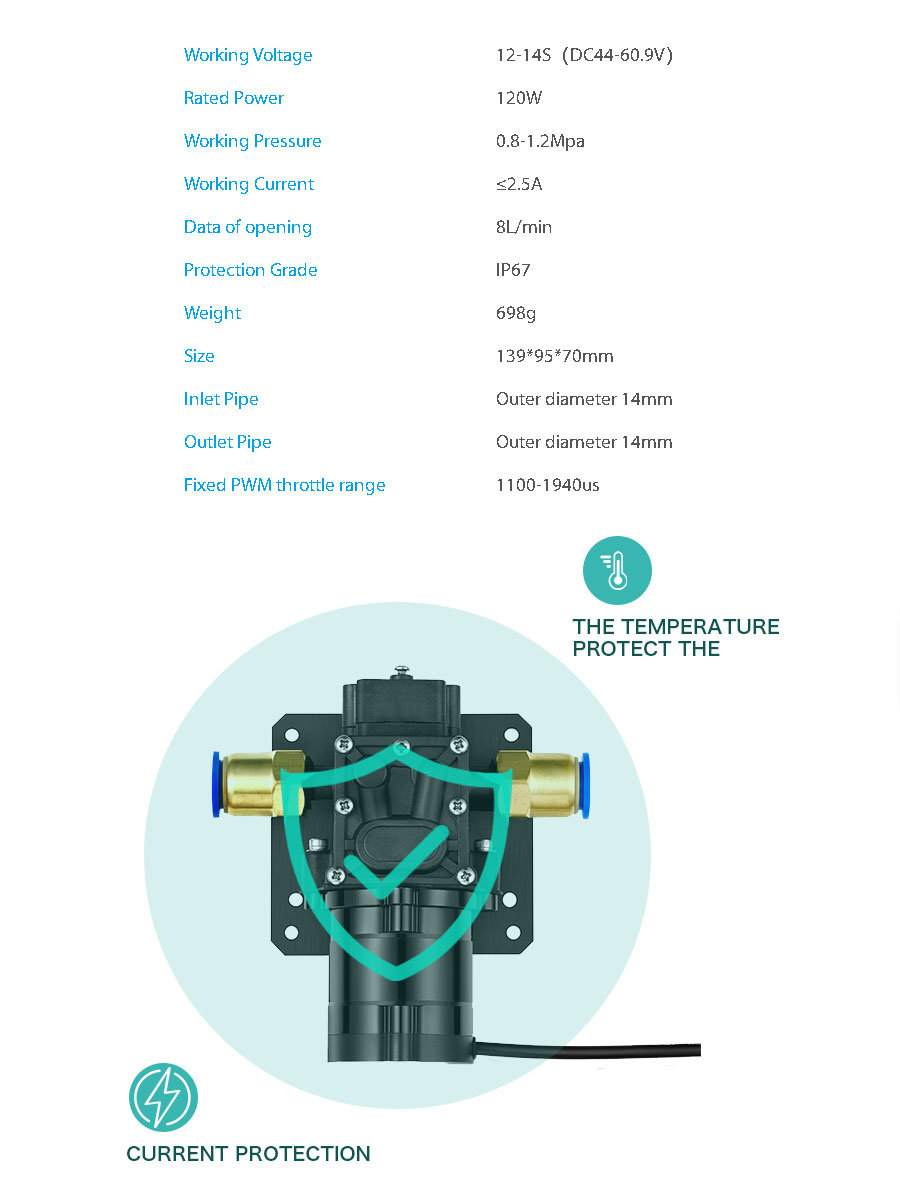

Specification:
Working Voltage: 12-14S ( DC44-60.9V )
Rated Power: 120W
Working Pressure: 0.8-1.2Mpa
Working Current: ≤2.5A
Data of opening: 8L/min
Protection Grade: IP67
Weight: 698g

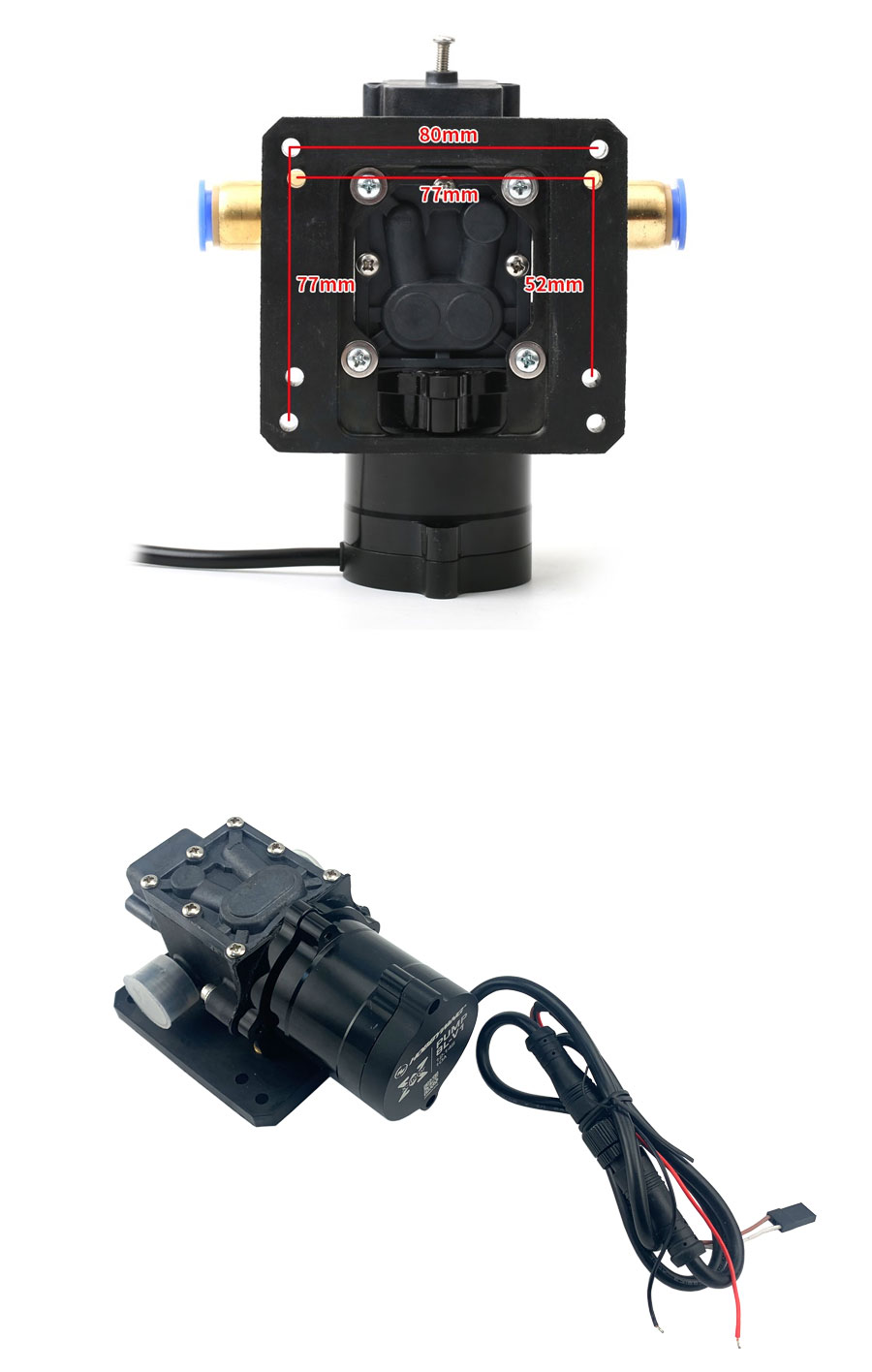

Size: 139*95*70mm
Inlet Pipe: outer diameter 14mm
Outlet Pipe: outer diameter 14mm
Fixed PWM throttle range: 1100-1940us
