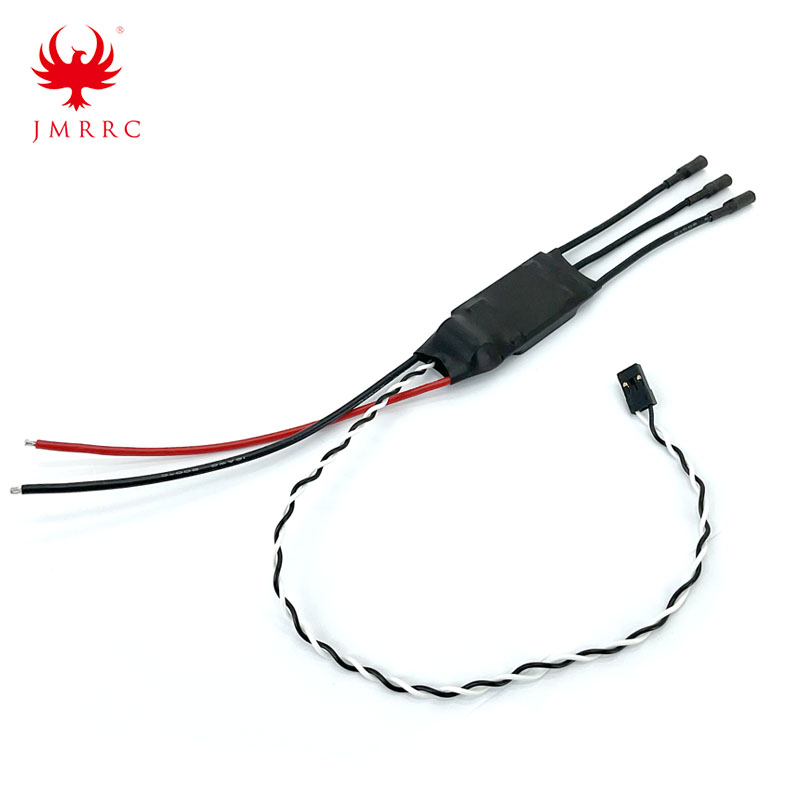

XRotor 40A 2-6S Brushless ESC Hobbywing For Multi-rotors

  • Model Number: XRotor 40A ESC
  • Measurement: 56.0x25.2x12.4mm
  • N.W.: 32g

  • Parameters
  • Model Number: XRotor 40A ESC
  • Measurement: 56.0x25.2x12.4mm
  • N.W.: 32g

XRotor 40A Brushless ESC 2-6S Electronic Speed Regulator Brushless Speed Controller For Multi copters Drone Hobbywing



1- Rapid Throttle Response. Dedicated program for multi-rotor ESCs, which is better than various open-source programs, greatly improves therottle response.

2- Easy to Use. All settings except the "Timing (adjustable between High and Intermediate)" are preset, making usage simple, highly intelligent and adaptive.

3- Great Compatibility. Specifically optimized software utilized by XRotor 40A ESCs ensures excellent compatibility between these ESCs and multi-rotor motors.

4- Less Signal Interference. The twisted-pair throttle signal cable effectively reduces interference produced in signal transmission and makes flight more stable and reliable.

5- Super Low Internal Resistance. Good quality MOSFETs utilized by this XRotor 40A ESC make internal resistance low but current endurance high.

6- Super High Throttle Signal. Compatible with various flight-control systems and supports a throttle signal frequency of up to 621Hz.



Specification:

Product Name: XRotor 40A (long wire)

Cont./Peak Current: 40A/60A

Lipo Cells: 2-6S LiPo

BEC Output: No

Input Wires: Red & black - 16AWG (150mm length)

Output Wires: black - 16AWG (75mm length) *3

Input Connectors: No

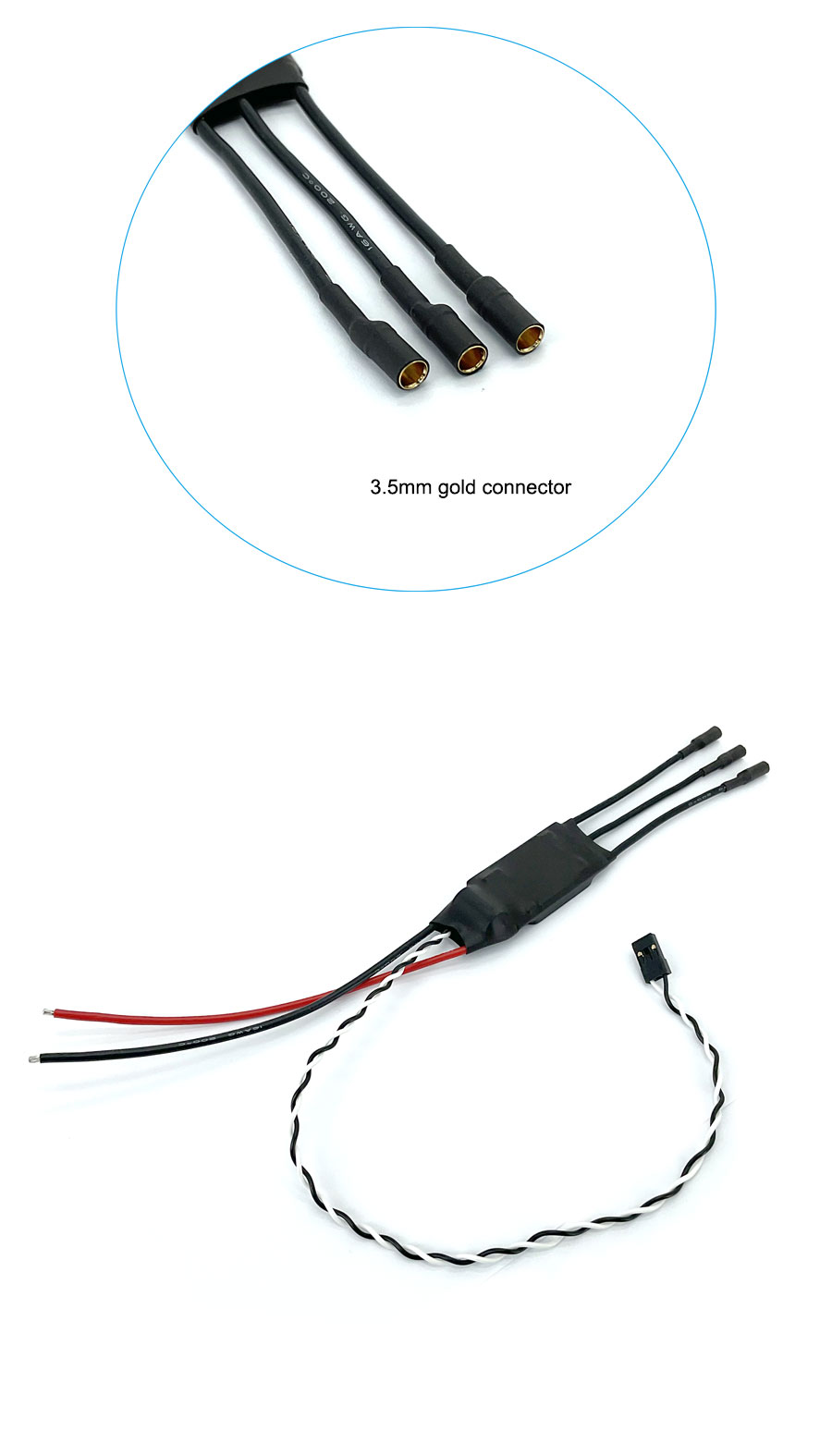

Output Connectors: 3.5mm Gold Connectors (Female)

Size: 56mm*25.2mm*12.4mm

Weight: 32g
