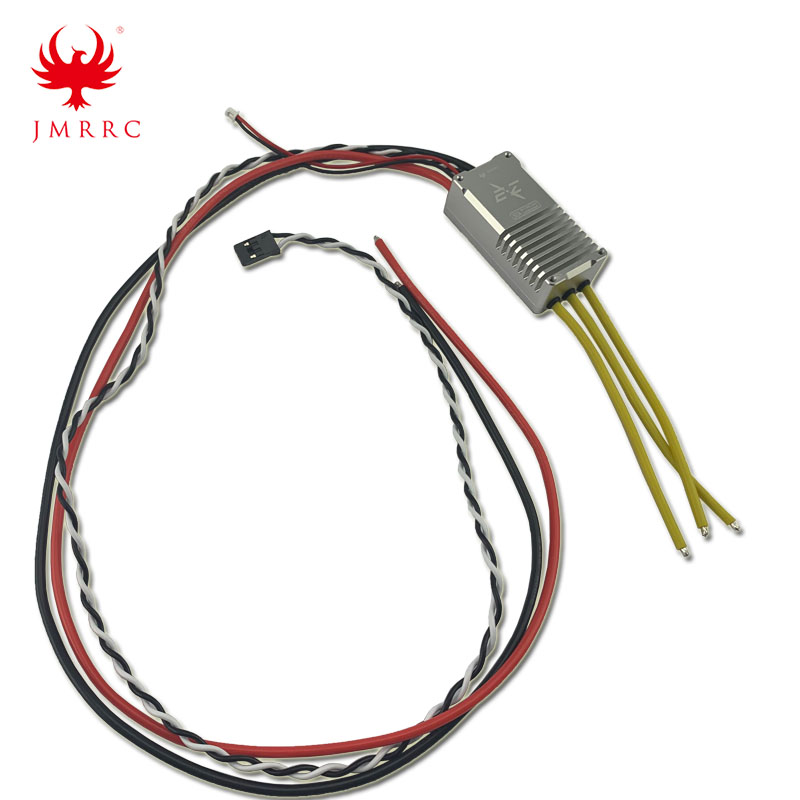

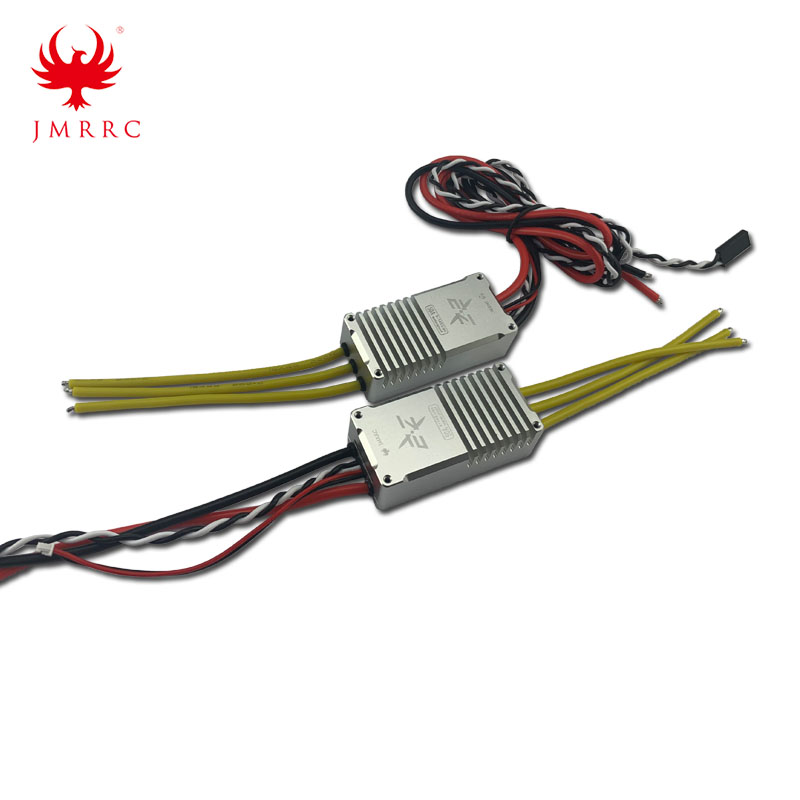

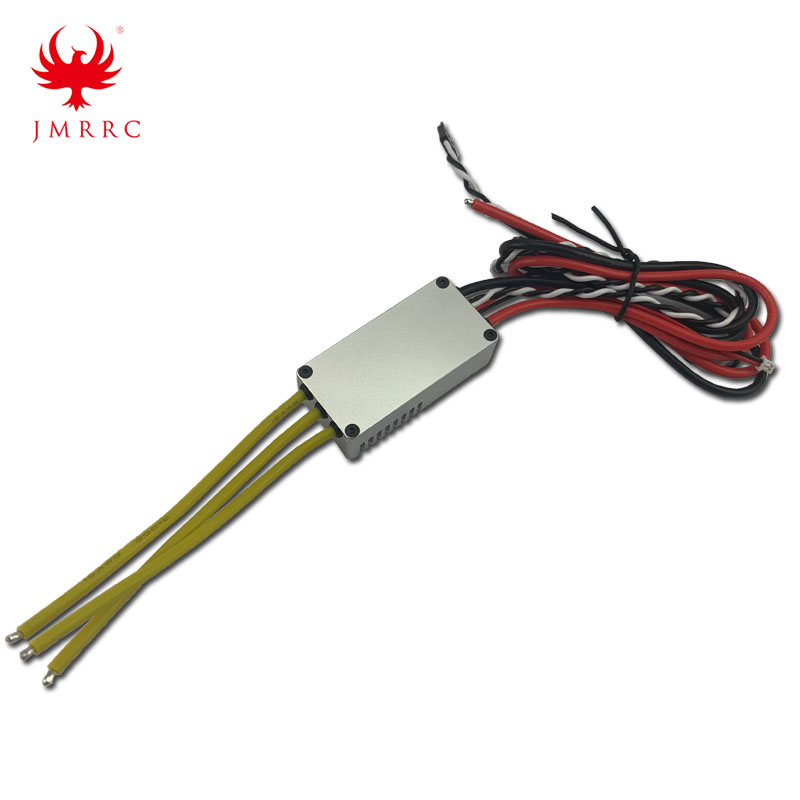

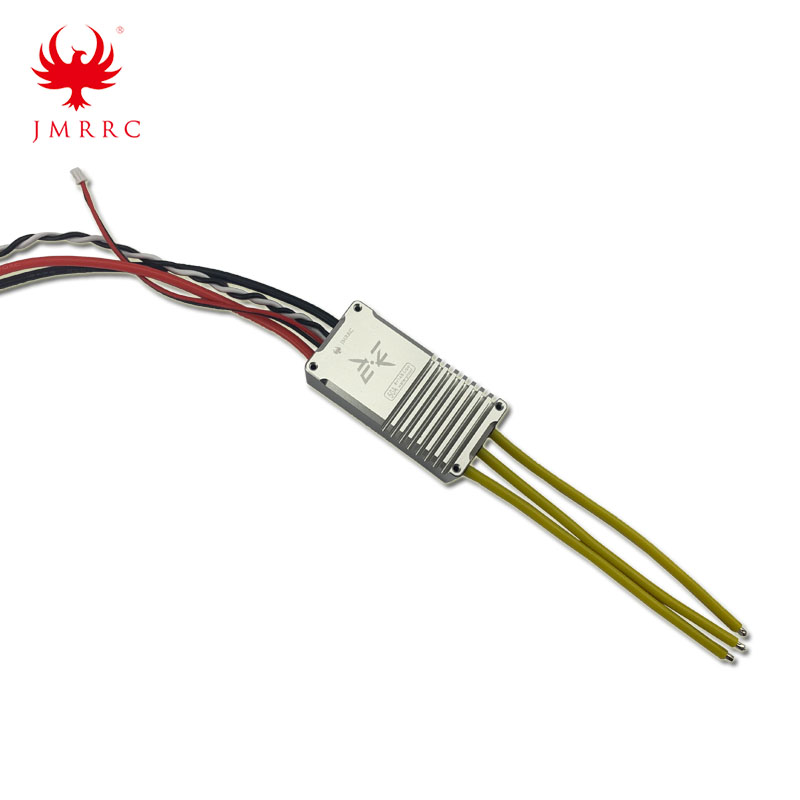

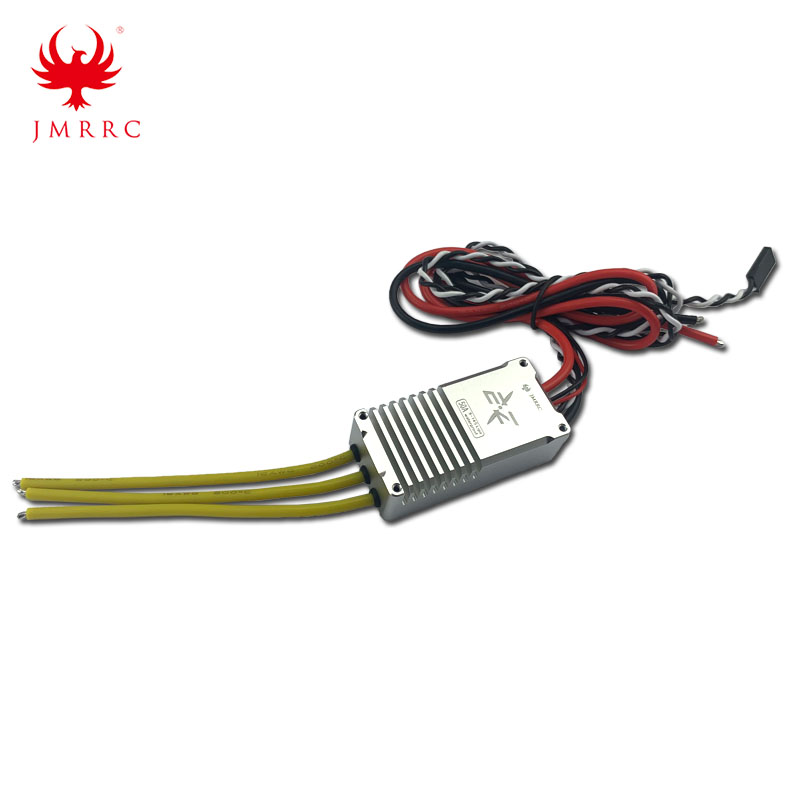

12S 50A Brushless ESC EZ50A 7S-14S HV Electronic Speed Controller High Voltage Waterproof ESC

  • Product: 7-14S electronic speed controller
  • Model Number: EZ50A
  • Measurement: 54.4mm*26.5mm*16.2mm
  • Materials: aluminum alloy
  • N.W.: 60g

  • Parameters
  • Product: 7-14S electronic speed controller
  • Model Number: EZ50A
  • Measurement: 54.4mm*26.5mm*16.2mm
  • Materials: aluminum alloy
  • N.W.: 60g

12S 50A Brushless ESC EZ50A 7S-14S HV Electronic Speed Controller High Voltage Waterproof ESC For RC Airplane Multirotor JMRRC


Features:

1- Using high-performance heat dissipation MOS tube, with strong heat dissipation performance, the working temperature is much lower than normal ESC.

2- The firmware optimized for multi-rotor which has extremely high response speed and more agile control of flight attitude.

3- No need to calibrate the throttle range, auto-adjusting timing, easy to use.

4- Unlimited signal frequency and wide compatibility.

5- Optimized the active deceleration function, with higher reaction speed and drive efficiency, the motor works more smoothly.

6- The output line of ESC LED lamp is constant current 100mA. If connected other types of LED lamp, please pay attention to the current value of LED lamp.

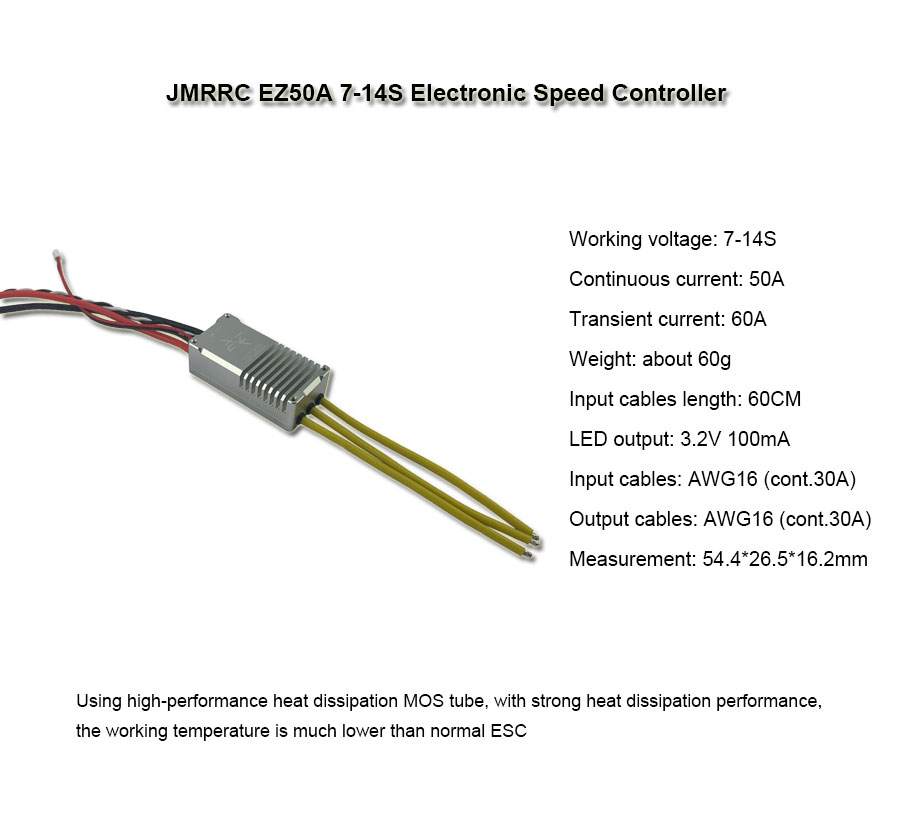

Specification:

Working voltage: 7S-14S

Continuous current: 50A

Transient current: 60A

Weight: 60g

Input cables: AWG16 (cont.30A)

Output cables: AWG16 (cont.30A)

Measurement: 54.4mm*26.5mm*16.2mm

Input cables length: 60cm

LED output: 3.2V 100mA

Protections: throttle signal loss protection, throttle safety protection, under-voltage protection, output short circuit and over-current protection, motor lock-up protection.


Throttle range calibration: unnecessary

Programming: support

Abnormal volt.prot.: <26V or >59V

Throttle post.prot.: support

Signal lost protection: lost thro.2sec.stop

Output SCP: support

Timing: Auto

Other: voluntary speed reduction






12S 50A Brushless ESC EZ50A 7S-14S HV Electronic Speed Controller High Voltage Waterproof ESC
