SHENZHEN GC ELECTRONICS CO.,LTD

      Drone & Drone Parts supplier

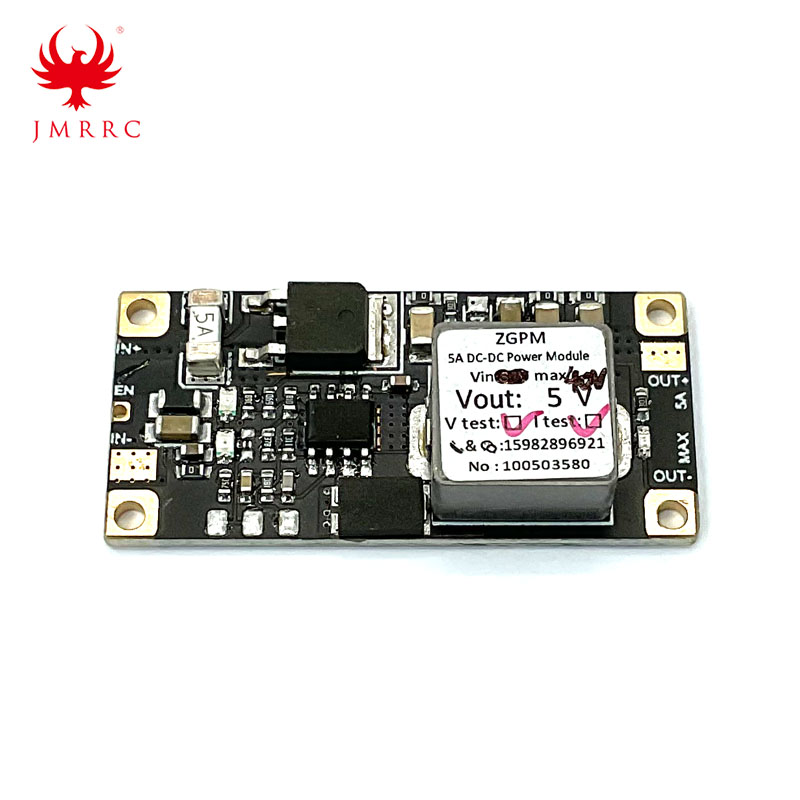

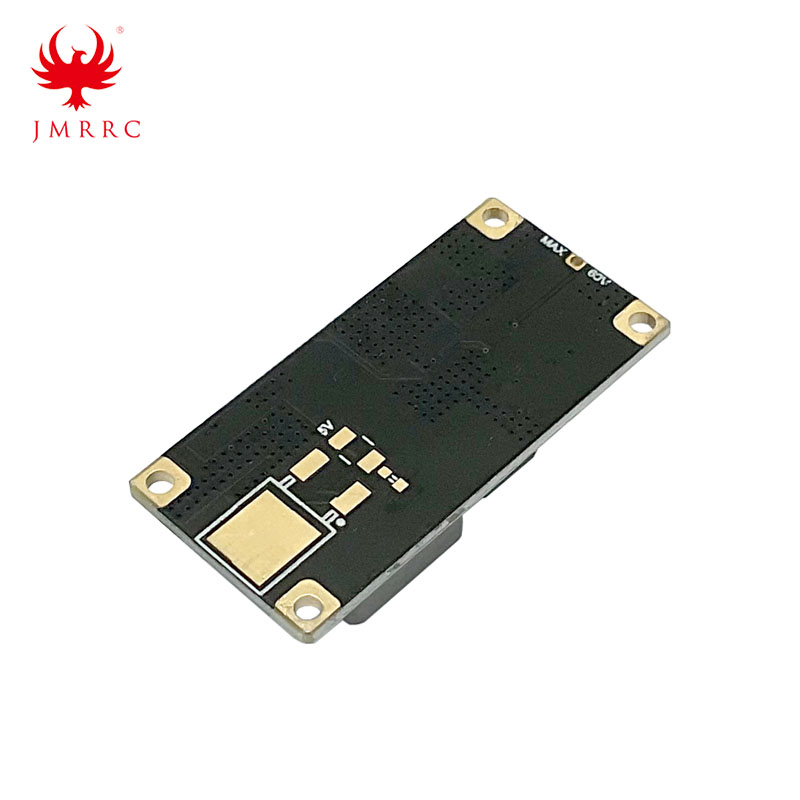

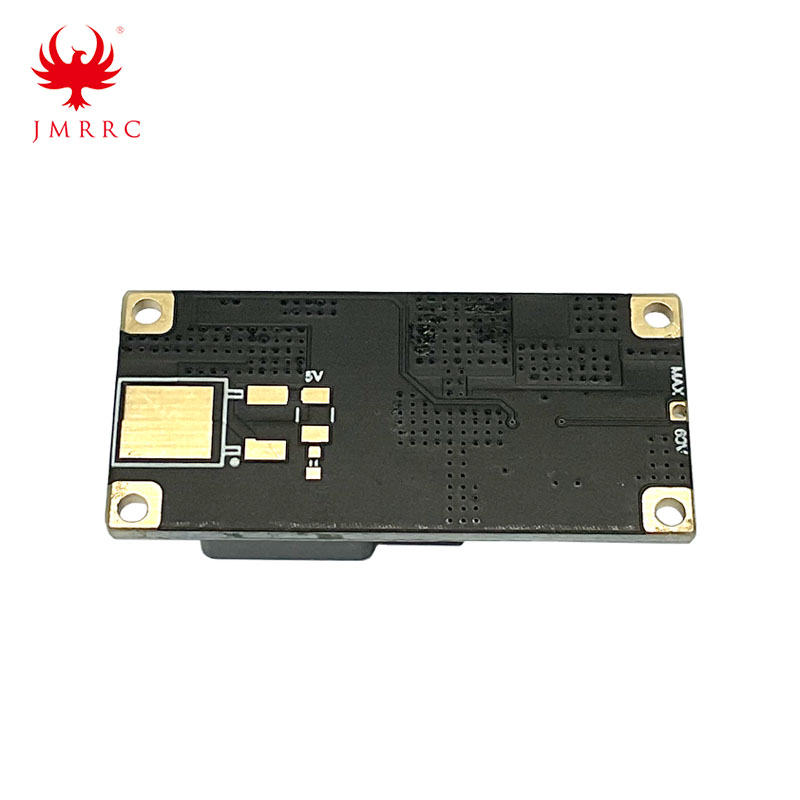

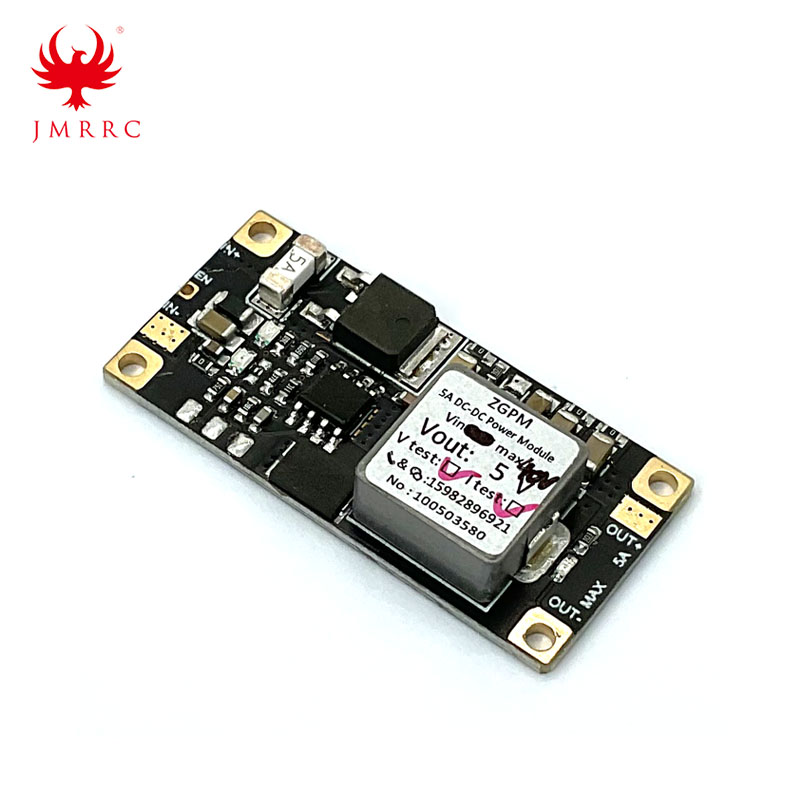

40V to 5V BEC Module / 60V to 5V BEC

  • Product: 40V/60V to 5V BEC module
  • N.W.: about 10g

  • Parameters
  • Product: 40V/60V to 5V BEC module
  • N.W.: about 10g

DC 40V/60V to 5V BEC Power Supply Module 5A Output Converter Voltage Regulator Module Board


Features:

1, light weight, just 10g.

2, Big current: Instantaneous current up to 5A, 4A can work stably for a long time.

3, Low voltage difference: as long as the input is 2V, which is higher than the output, it can work at full load. For example, the output is 5V, and the output is 5V4A as long as the input is higher than 7V.

4, Low ripple: This power module has very small ripple when working, especially when high performance computing board and RF module is used.

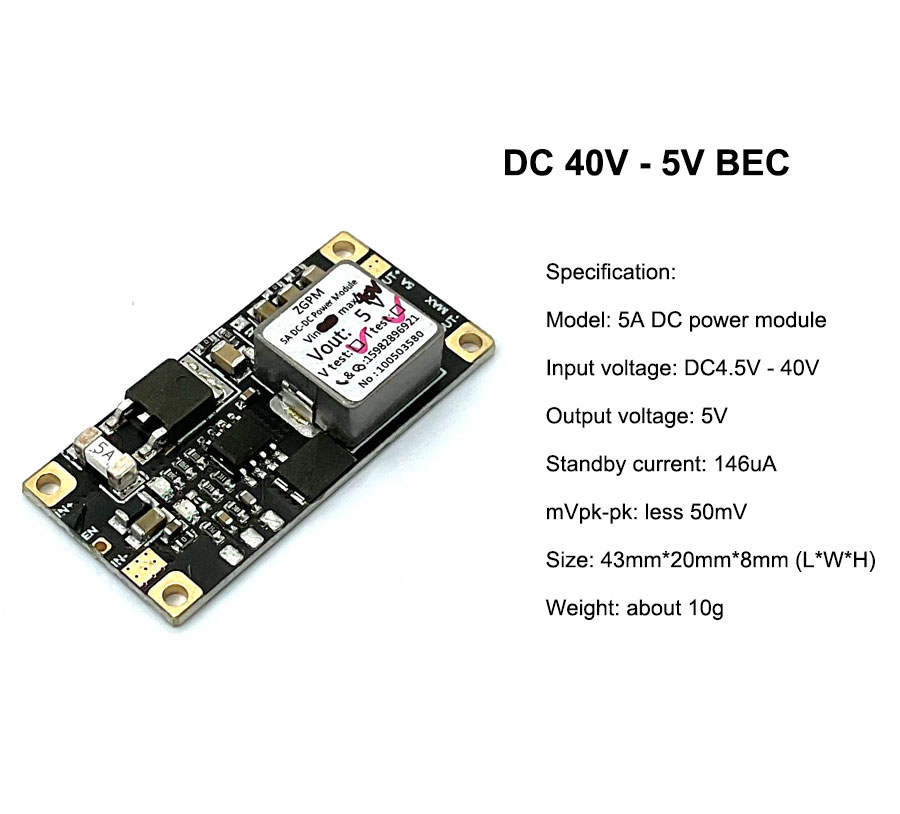

Specification:

Model: 5A DC Power module

Input voltage: DC 4.5V-40V

Output voltage: 5V

Standby current: 146uA

mVpk-pk: less 50mV

circuit configuration: non-isolated Buck ECO-MODE

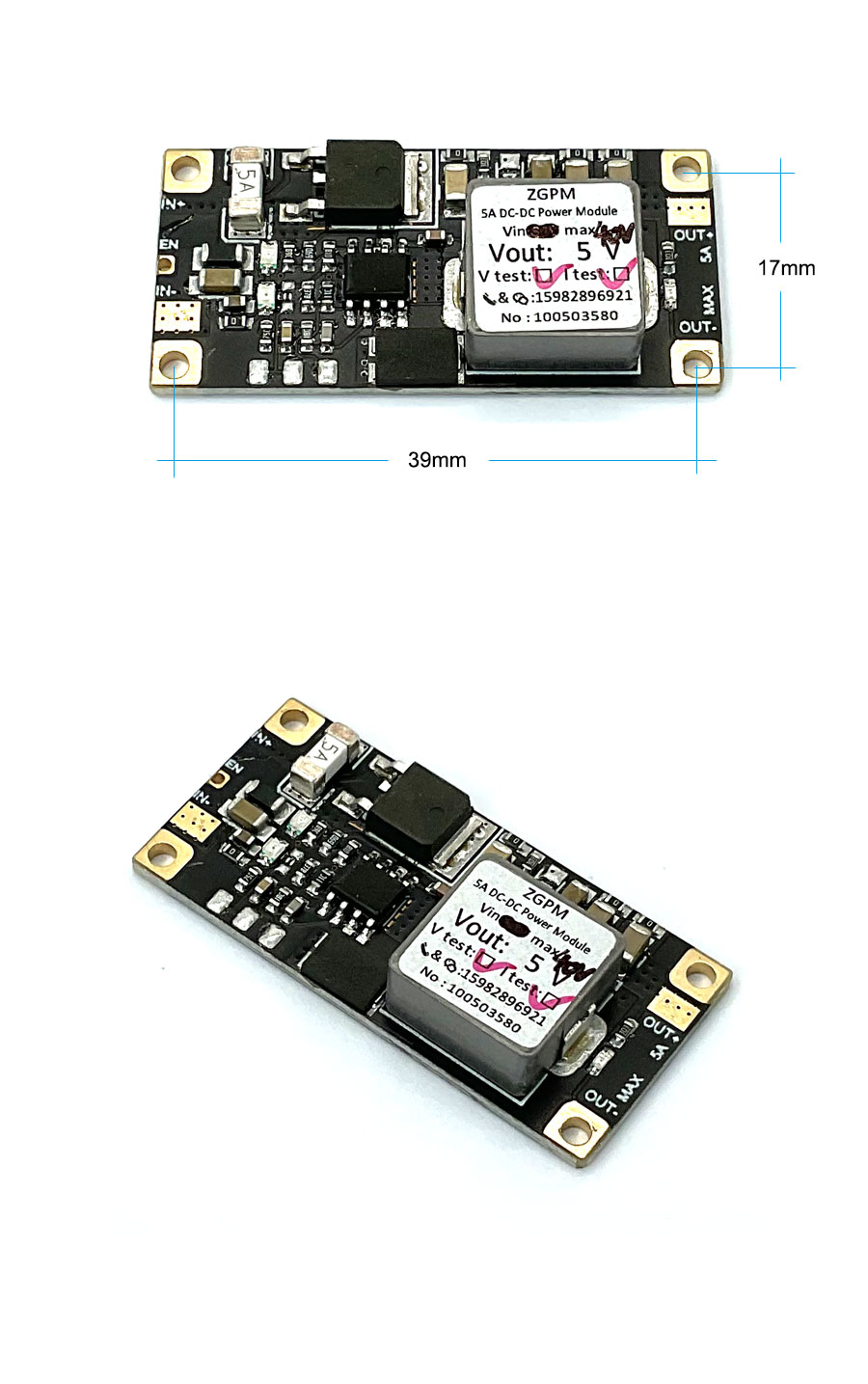

Size: 43mm*20mm*8mm(L*W*H)

Weight: about 10g

Working temperature: -40℃~+150℃






40V to 5V BEC Module / 60V to 5V BEC
