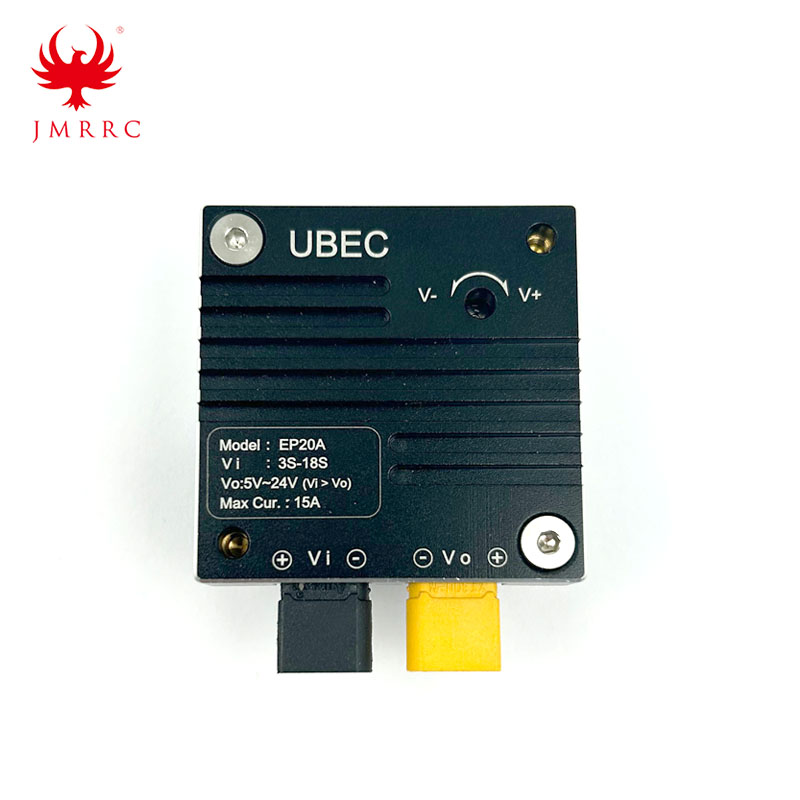

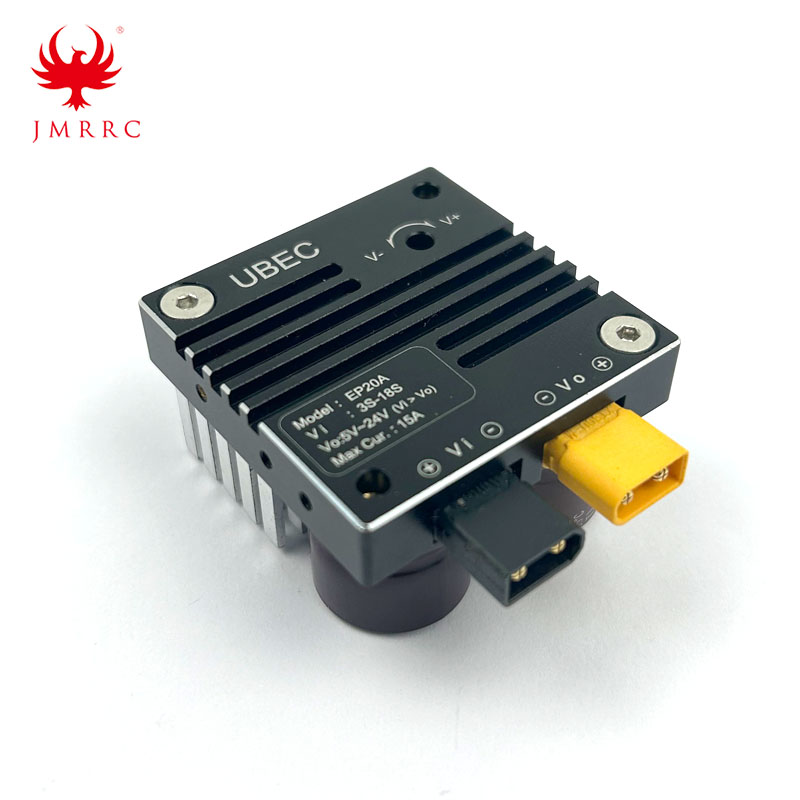

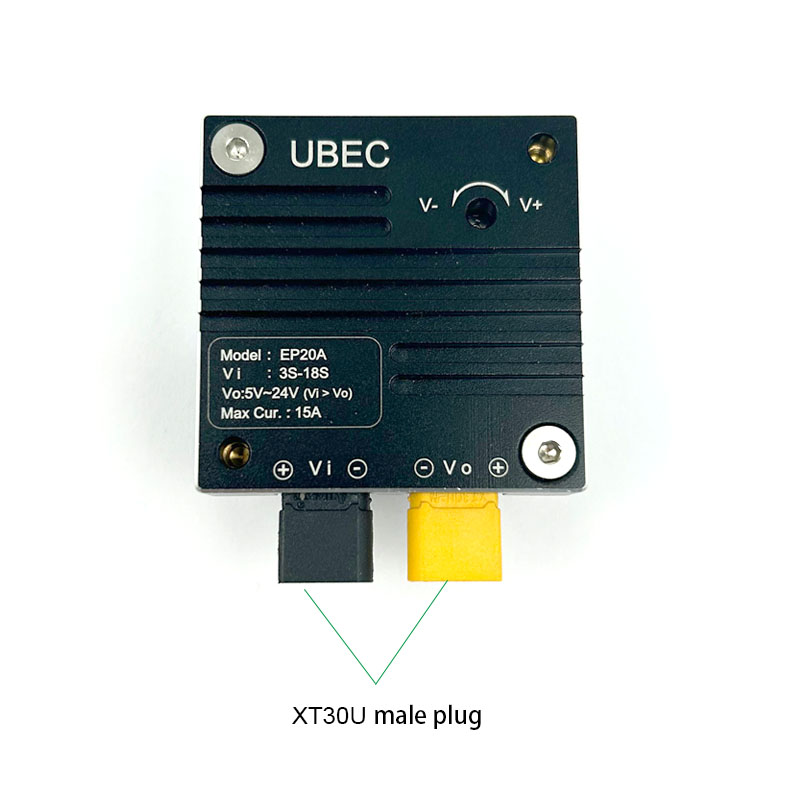

EP20A UBEC 3-18S High Voltage RC UBEC Voltage Regulator Module
- Product： EP20A UBEC
- Model Number： EP20A
- Measurement： 42*42*25mm
- N.W.： 67.5g
Buy at Aliexpress
- Parameters
- Product： EP20A UBEC
- Model Number： EP20A
- Measurement： 42*42*25mm
- N.W.： 67.5g
JMRRC EP20A Input 3-18S UBEC DC Power Supply Module 5-24V Output Voltage Regulator Modular
Specification:
Input: 3S-18S
Output: 5-24V (the input value must larger than Output Value when it to be used.)
Adjustable range: 5-24V
Max instantaneous output current: 20A
Rated current: 15A
Peak Current: 20A

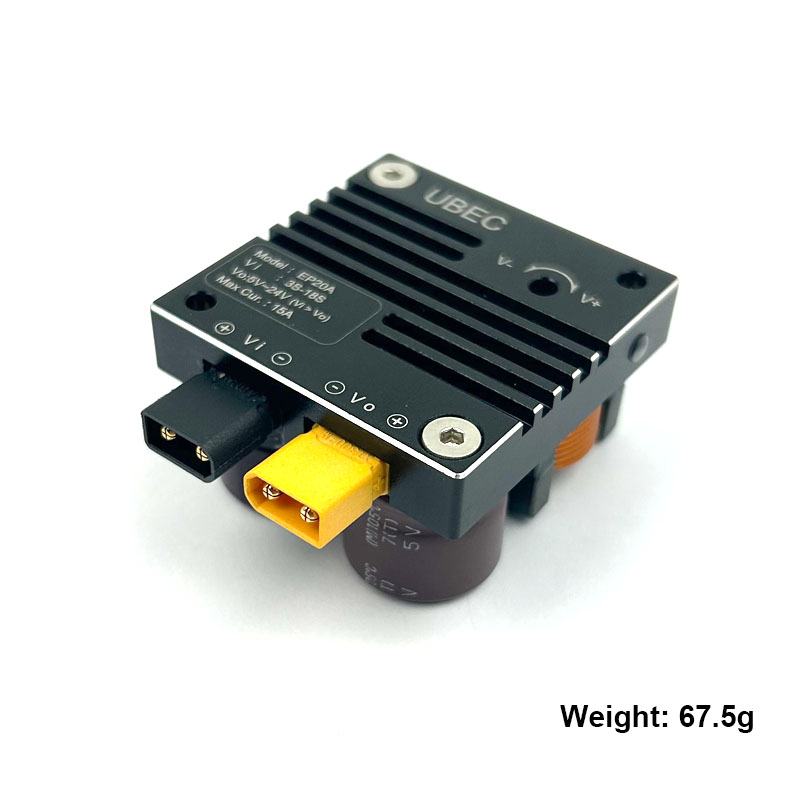

Weight: 67.5g

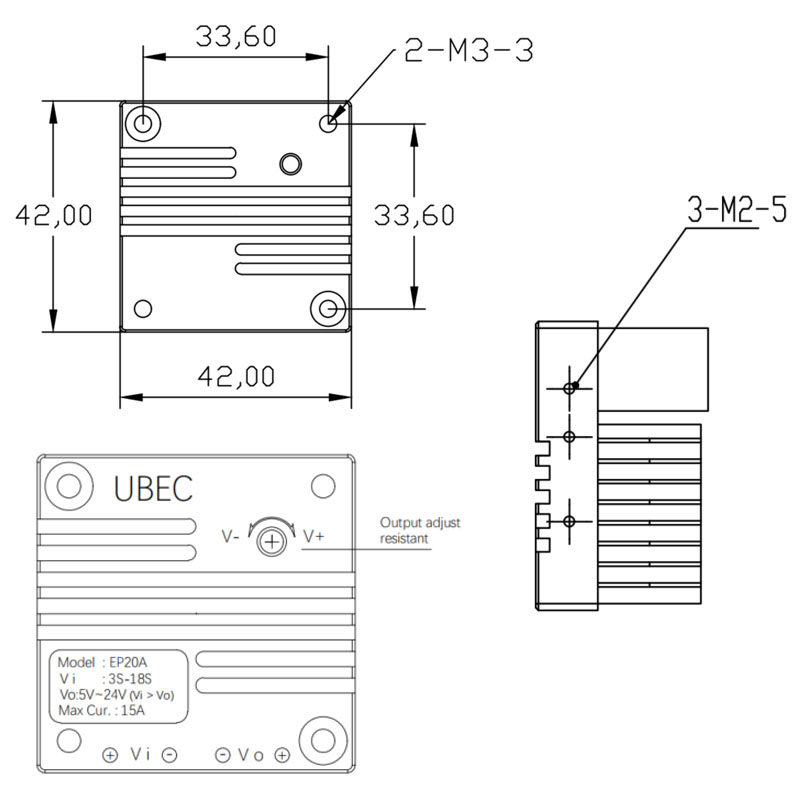

Board size: 42*42*25mm
Installing distance: 33.6mm
When the current exceeds 10A, a fan is needed for heat dissipation. The switching frequency is 250kHz ± 10kHz. It has overcurrent protection and output short-circuit protection, but no input protection.

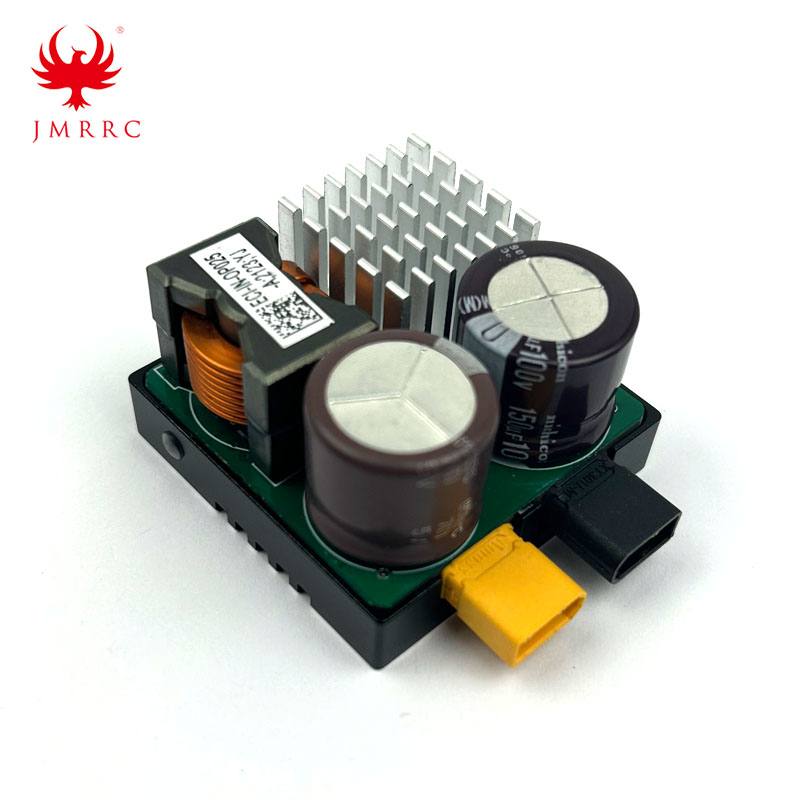

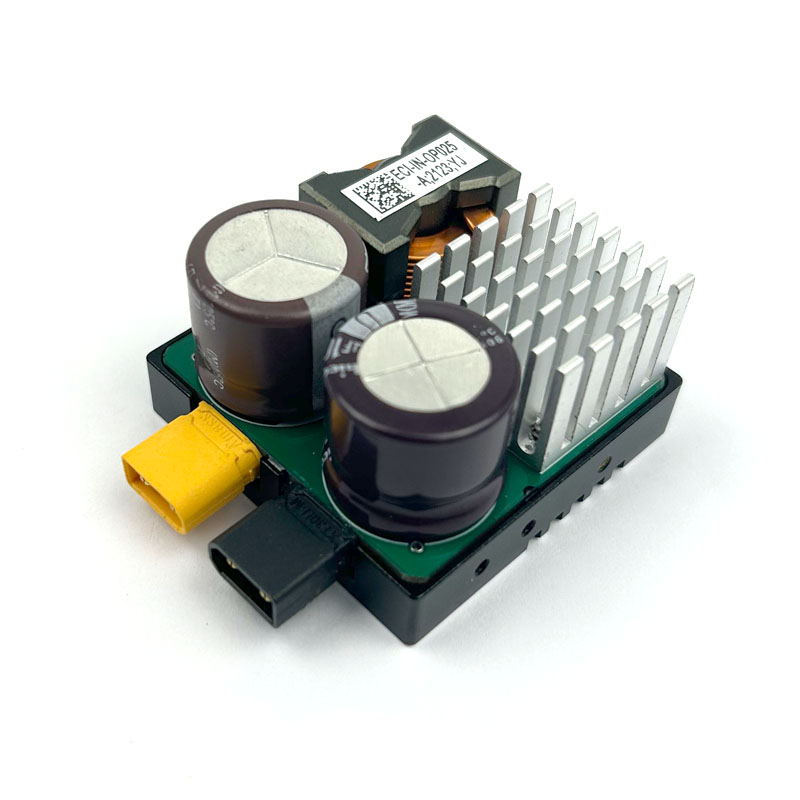

Using high performance heat dissipation MOSFET, with heat sink make it working more reliable.
