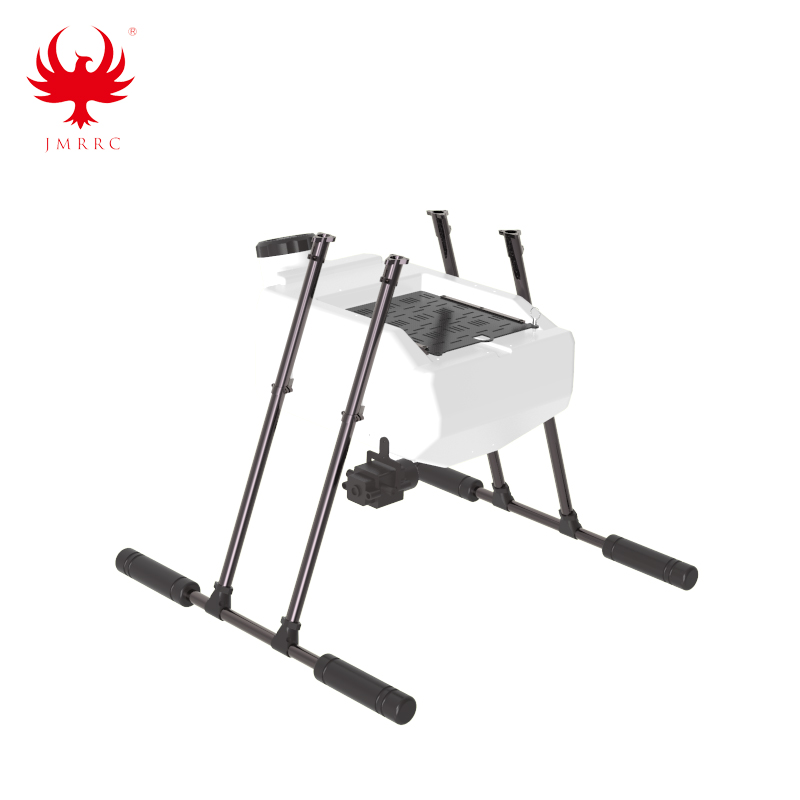

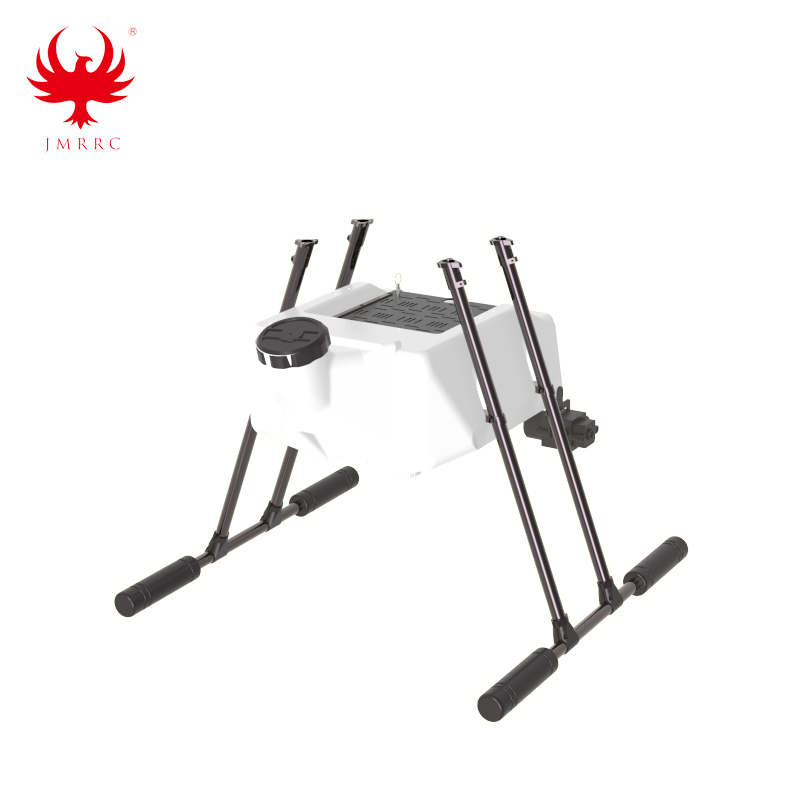

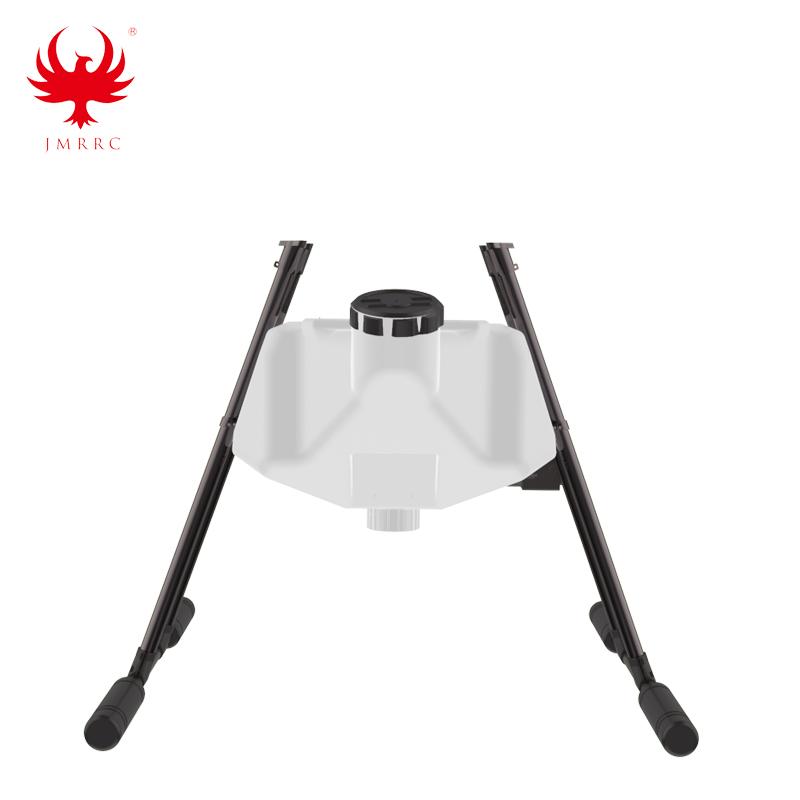

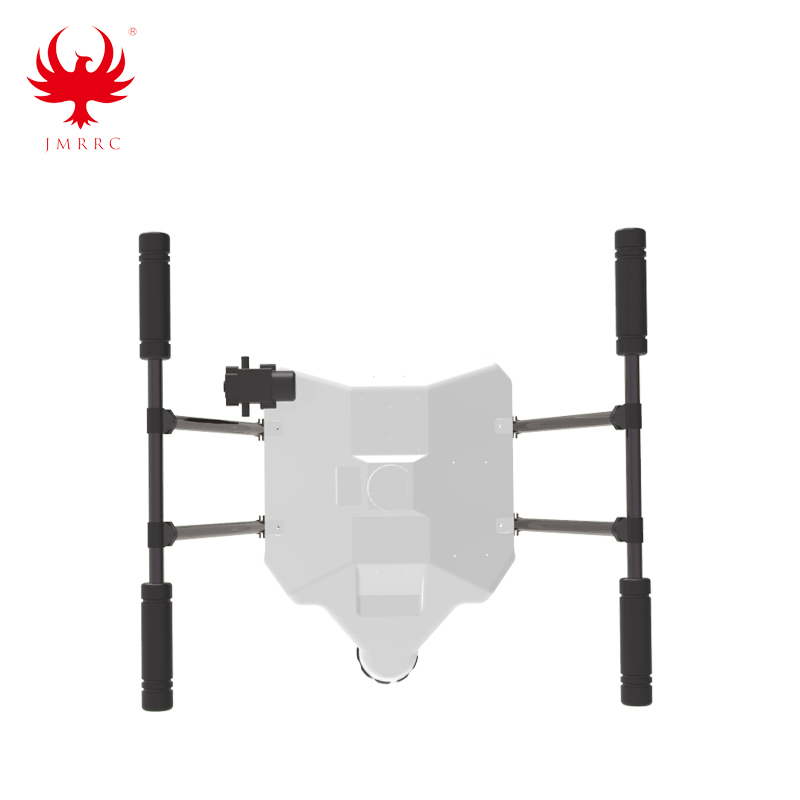

16L Drone Spraying System Landing Gear Gimbals

16L Drone Spraying System Landing Gear Gimbals

• PS18-16L 16L Spraying gimbals is used for Agriculture Spraying Drone, it also can match your DIY sprayer drones.

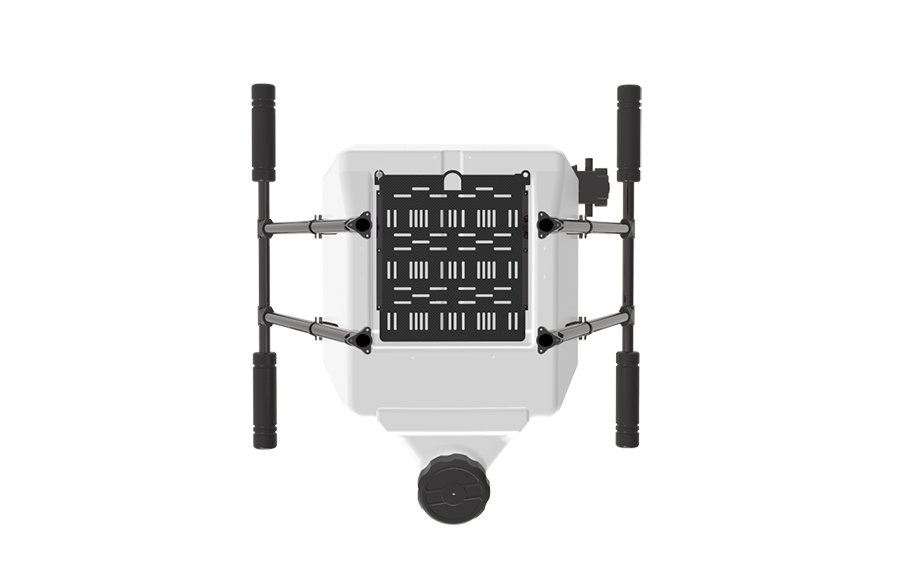

• It comes with quick-relese battery putting plate, which can assemble 6S 22000mAh battery * 2pcs or 12S 22000mAh battery * 1pcs.


• This spraying gimbals is using 6S 25W brushless water pump, it also can assemble 12S integrated brushless pump. The pump flow rate is about 4L / minute.


• This spraying gimbals can use the carbon fiber foldable spraying bar with 4pcs of nozzles. there is another way to assemble the nozzles on the drone, 4pcs of anti-collision nozzles can be assembled well under the motor mount.

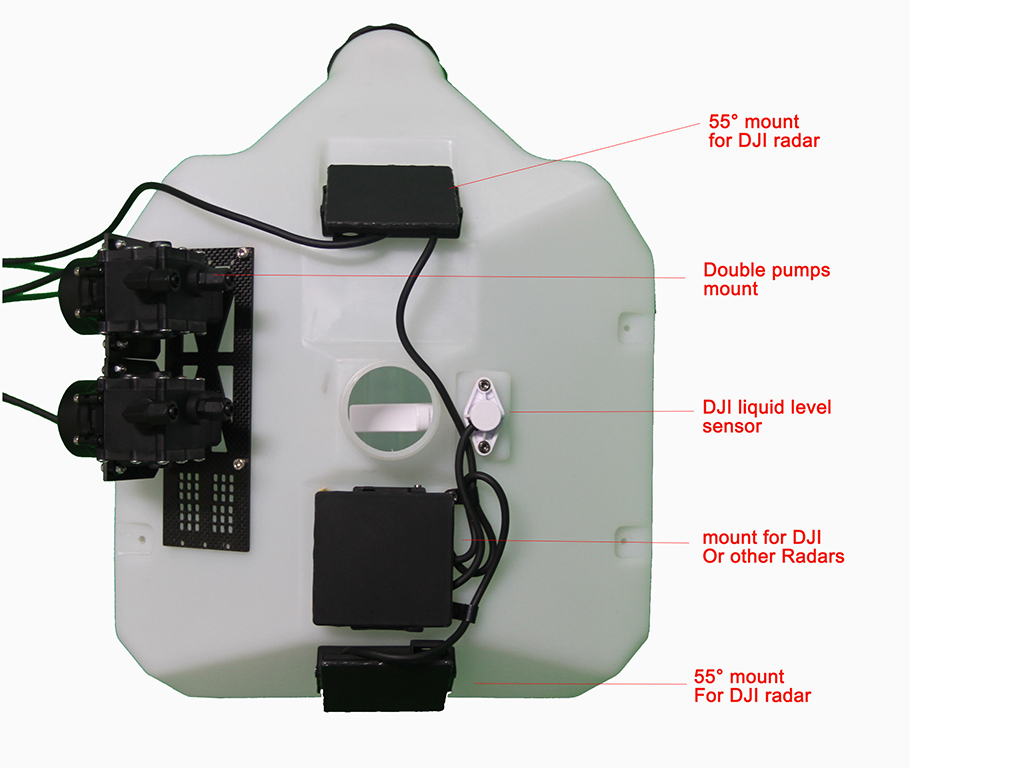

• The tank has reserved the place for installing the agricultural support parts, such as, DJI / JIYI / Paladdin / Topxgun radars and liquid sensor, etc.


• The tank is with big water inlet, the water inlet diameter is 100mm, the tank also has matched the stainless steel filter well.


16L Spraying Gimbals Parts List:

18mm landing gear mount * 4pcs

18 * 550mm aluminum pipe * 2pcs

18 * 550mm aluminum pipe * 4pcs

18mm nylon tee connector * 4pcs

18mm black sponge * 4pcs

16L tank * 1pcs

18mm tank connector * 2 pairs

Anti-collision nozzles * 4pcs  /  It can be changed to folding carbon fiber spraying bar with 4pcs of nozzles

6S brushless water pump * 1pcs

pump switch * 1pcs

8mm water pipe * 1pcs

12mm water pipe * 1pcs
