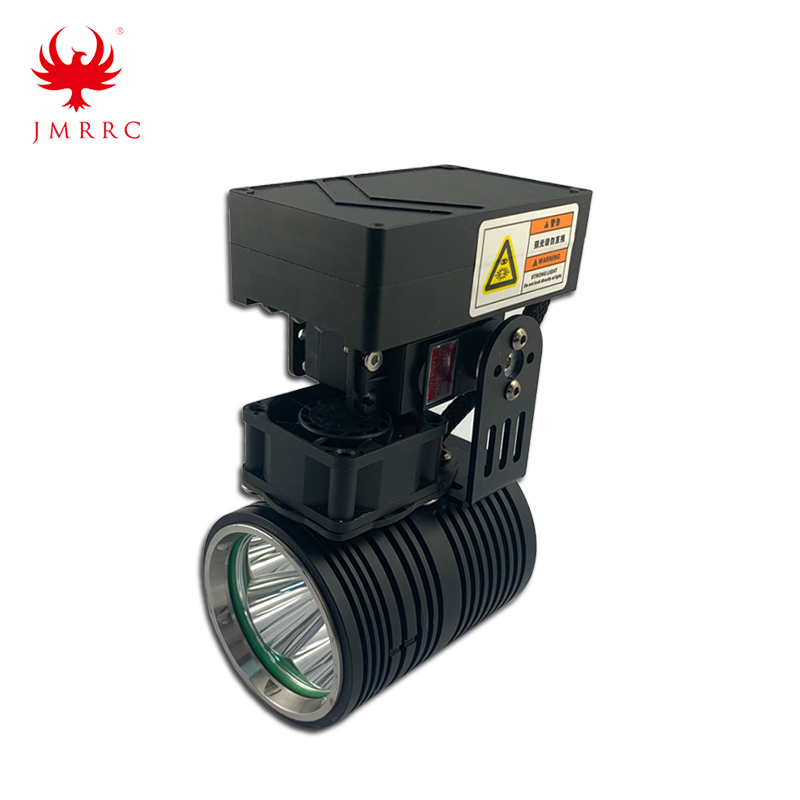

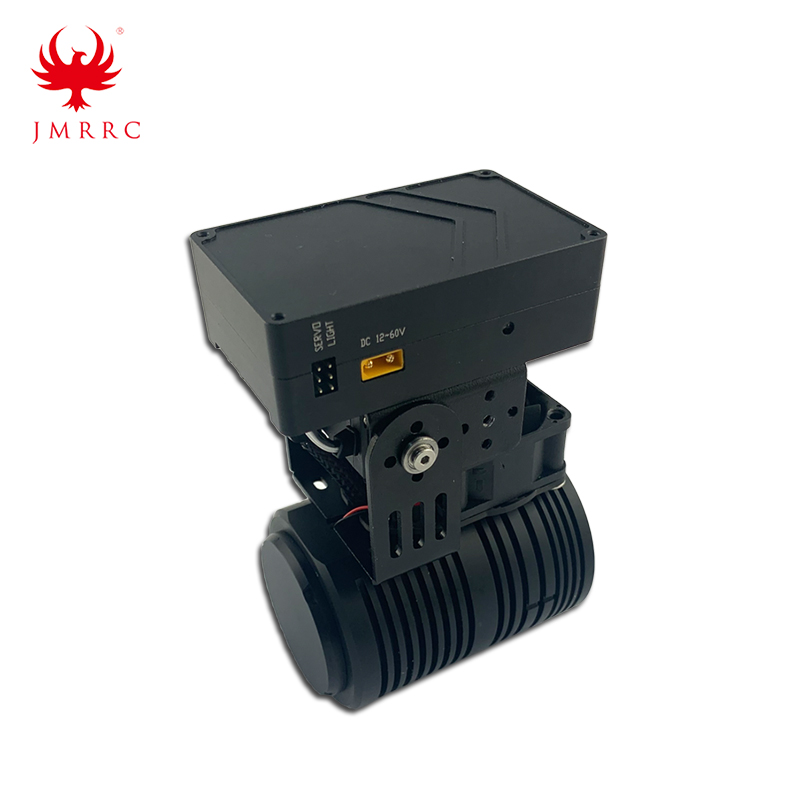

65W Drone Spotlight High Brightness for Industry Application

  • Product: searching light
  • Model Number: TZD-120

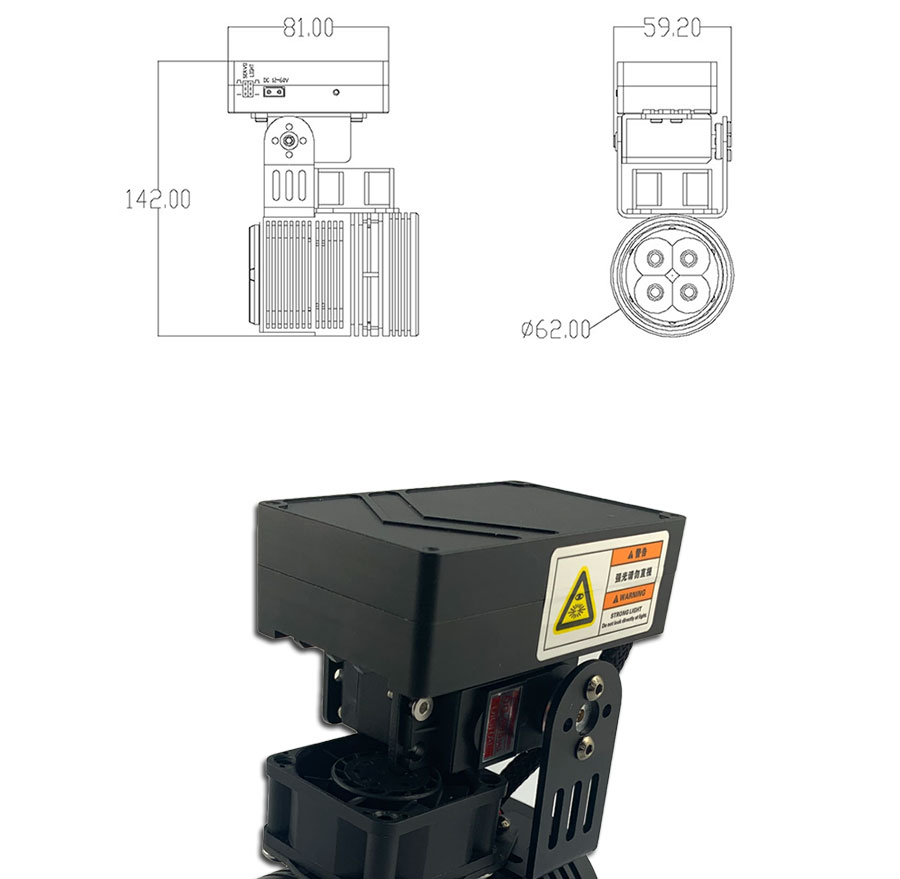

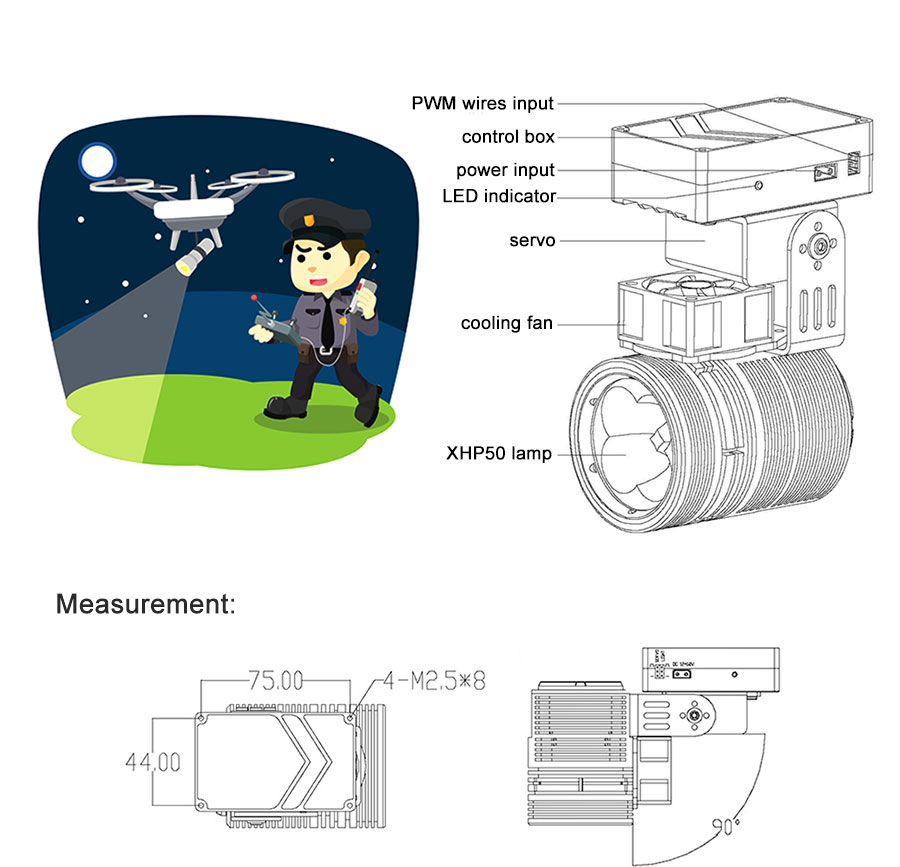

  • Measurement: 81*44*142mm
  • Materials: aluminum alloy
  • N.W.: about 604g

  • Parameters
  • Product: searching light
  • Model Number: TZD-120
  • Measurement: 81*44*142mm
  • Materials: aluminum alloy
  • N.W.: about 604g


High Brightness Drone Spotlight for Industry Application

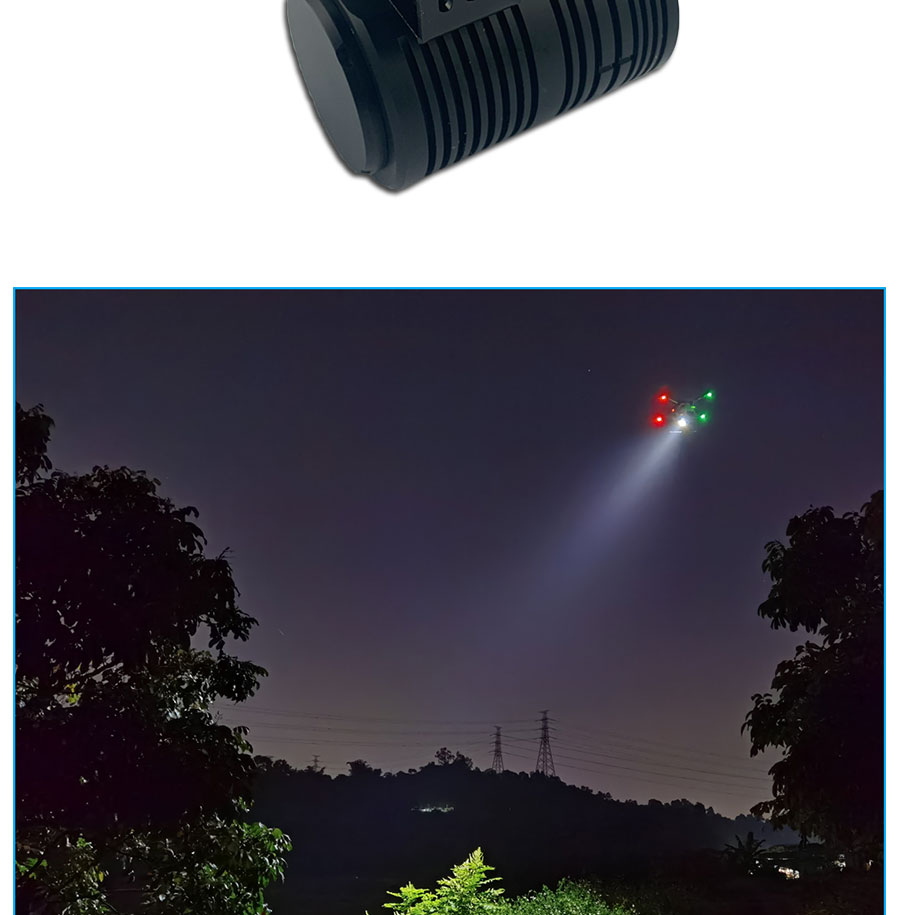

JMRRC High brightness searching light is for industry drone, application to security drone, patrol drone, rescue drone, etc. It uses 4 * Cree XHP50 high-efficiency lam beads. Wide and uniform light beam, long distance irradiation, high efficient illuminance.

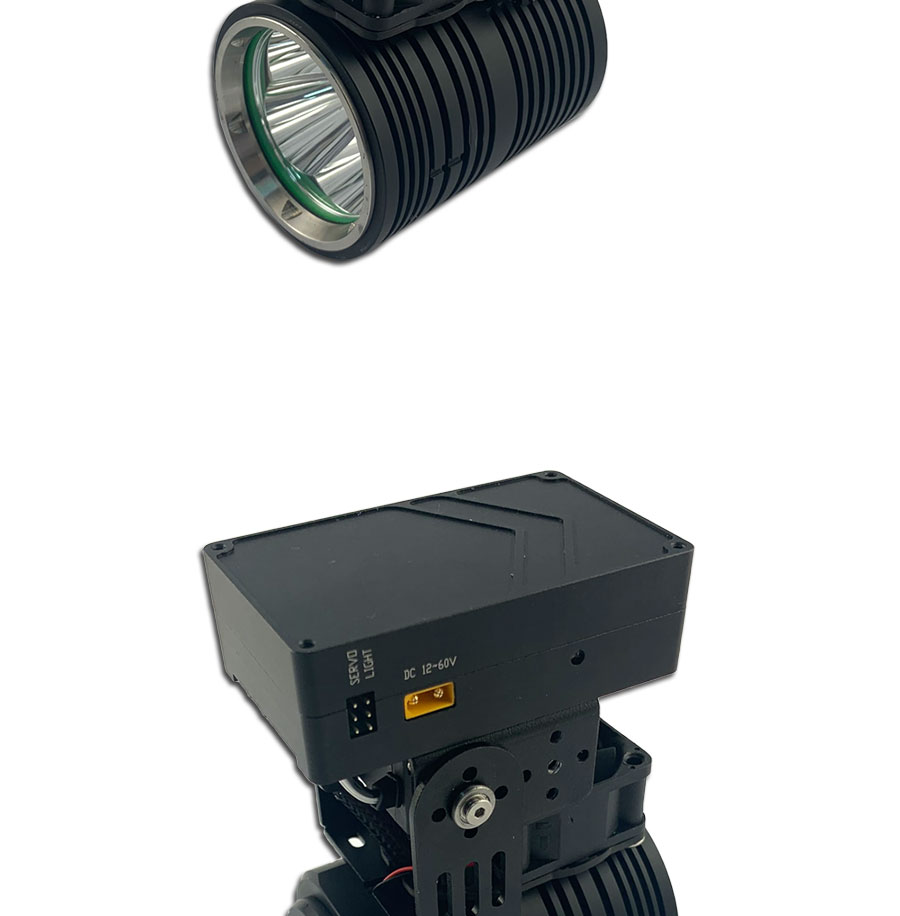

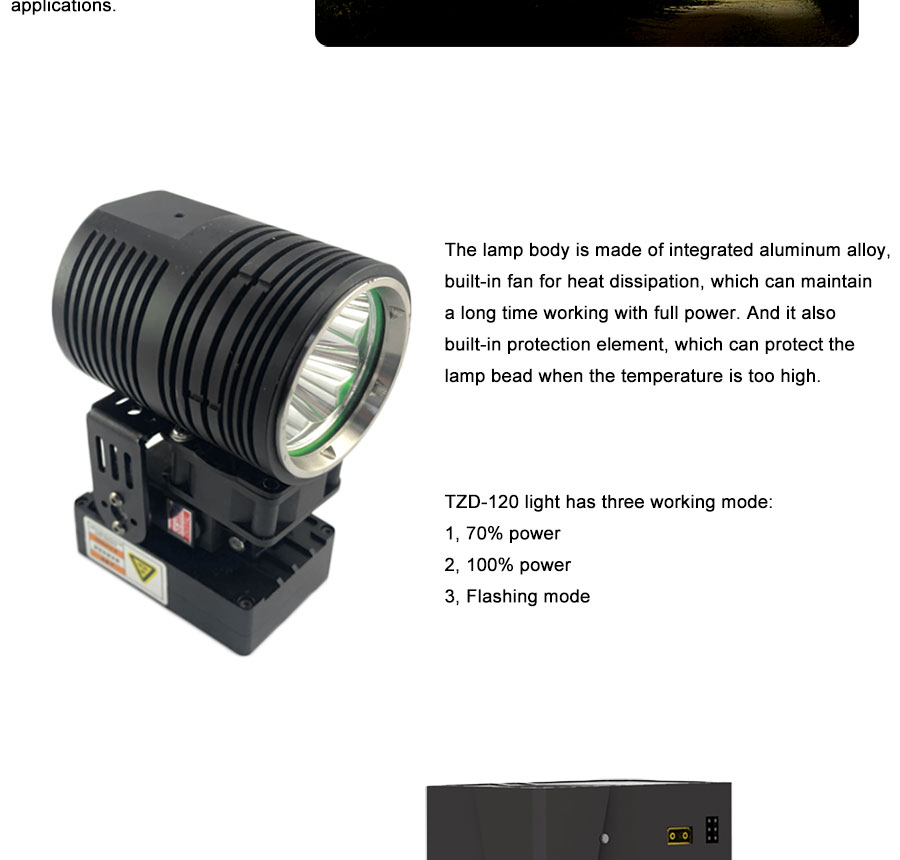

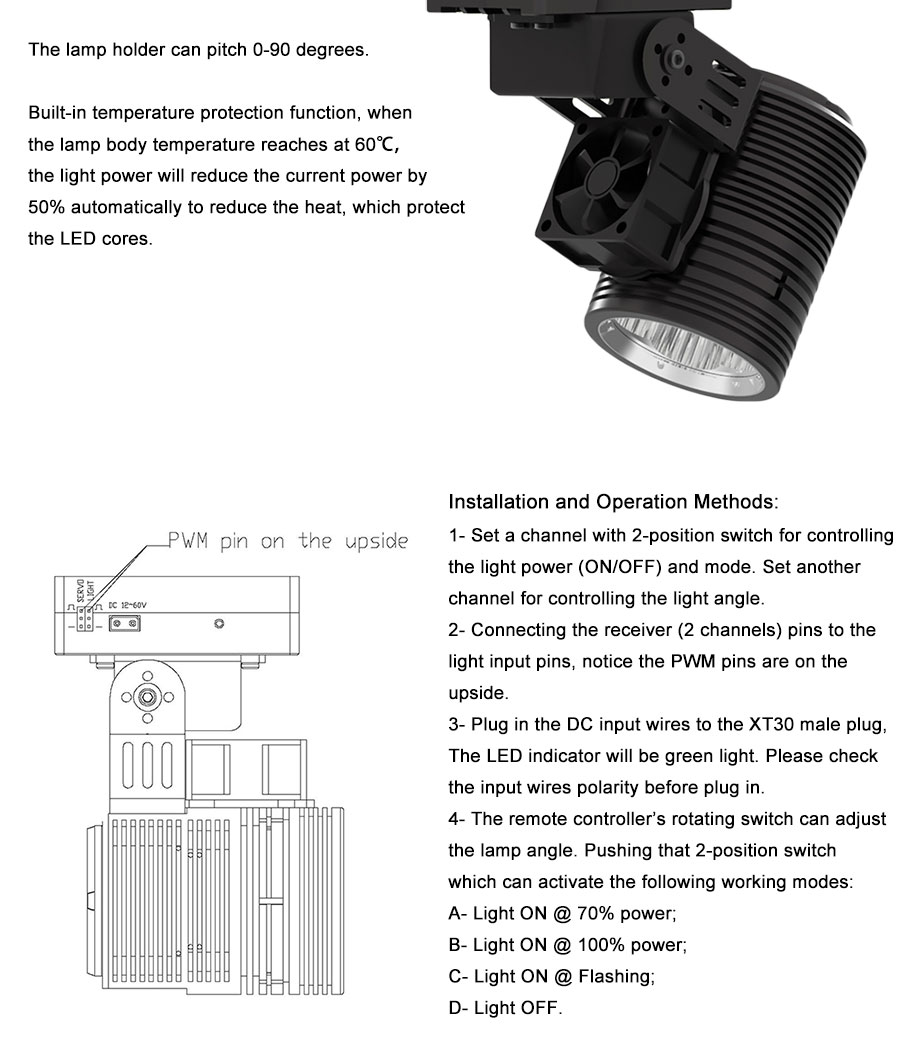

Aluminum alloy design with cooling fan for dissipate heat, and 0 - 90° irradiation angle adjustable. Light can be switched on / off by remote controller.


Built-in temperature protection function, when the lamp body temperature reaches at 60℃, the light power will reduce the current power by 50% automatically to reduce the heat, which protect the LED cores.

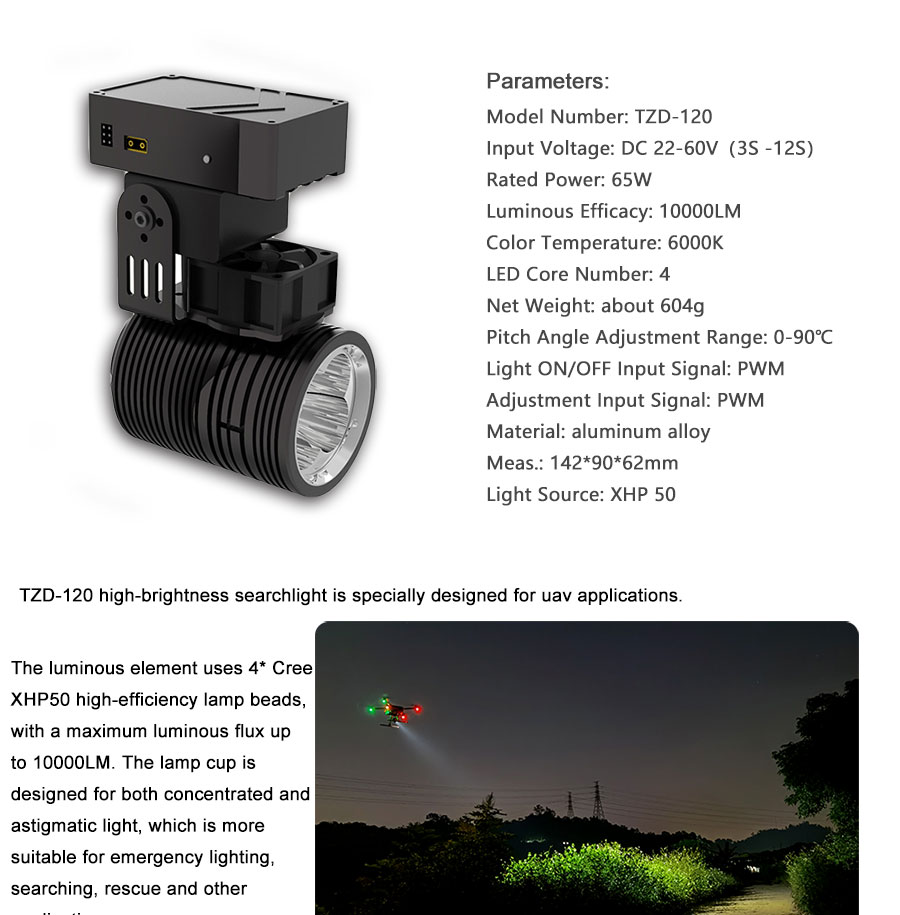

Parameters
Input Voltage12-60V DC ( 3S - 12S)
Rated Power65W
Light Intensity10000LM
Color Temperature6000K
LED Core Quantity4*XHP50
N.W.604
Pitch Angle Adjust Range0-90 degrees
Light On/OFF Input SignalPWM
Adjustment Input SignalPWM
Light Shell Materials
Aluminum Alloy





Notice:

1- Irradiate to eyes may harm human eyes.

2- Do not reserve polarity of power input.

3- Control Module is not water proof!

4- Beware of high temperature, do not touch the lamp outside during it working or after work.
