TZD-200 200W High-Power Spotlight

JMRRC TZD-200 200W High-Power DC LED Spotlight with PWM Remote Control For DIY Industry Application

Specification:

Model number: TZD-200

Net weight: 1.08kg

Working voltage: 20-80V

Max power: 200W

Speed/Torque settings: 3 gears

Pitch angle: 0-85 degrees

Control signal: PWM

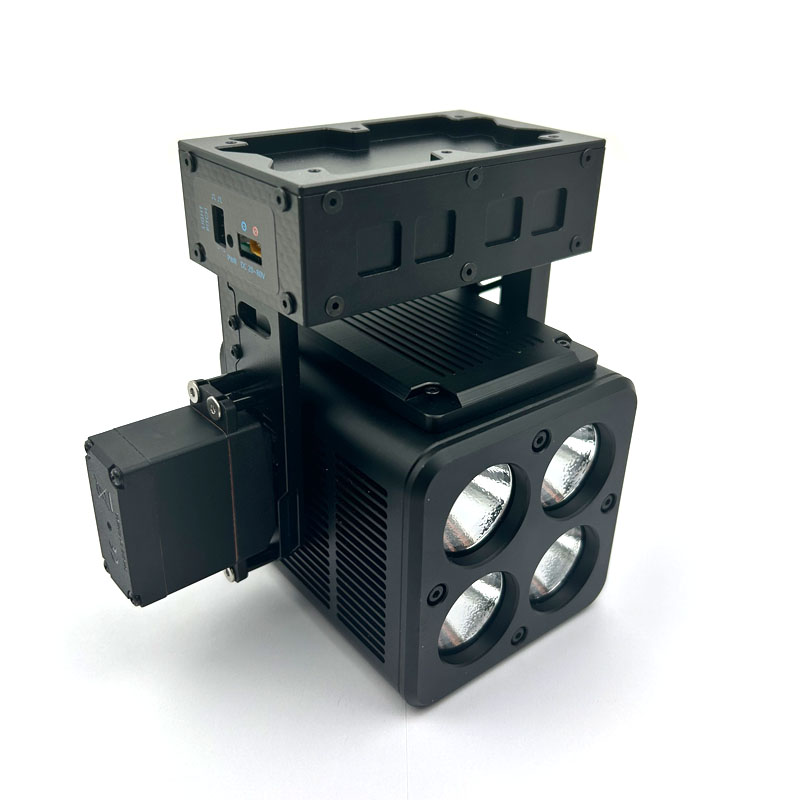

• The TZD-200 is a high-performance DC LED spotlight engineered for demanding industrial, automotive, and outdoor applications. Featuring a lightweight yet rugged aluminum alloy housing and an integrated high-speed forced-air cooling fan, this lamp delivers exceptional heat dissipation for sustained high-output operation without thermal step-down.

• Powered by a 4‑LED array, the spotlight offers three selectable power levels to balance brightness and battery runtime. It supports a wide input voltage range of 20–80V DC and utilizes a PWM control signal (50Hz, 20ms period, 1050–1950μs pulse width) for remote switching and progressive dimming/level adjustment. The lamp head tilts from 0° to 85°, allowing flexible beam aiming.

• The compact control box features a ventilated top design and six mounting holes, compatible with quick‑release brackets for easy installation on vehicles, machinery, or tripods. A built‑in red LED indicator confirms normal power-on status.


Key Features:

High Luminous Output – 200W max power with concentrated yet broad beam coverage.

Multi-Level Dimming – 3 output modes to optimize power consumption.

Wide Voltage Compatibility – 20–80V DC input suits diverse power sources.

Precise PWM Control – Reliable remote operation with clear step logic.

Durable Construction – Aluminum body with corrosion resistance and rain-proof design (splash-proof, not submersible).

Safe & Reliable – Overheat protection, reverse polarity protection (when wired correctly), and stable long-term performance.

Typical applications include:

1. Unmanned Aerial Vehicles (UAVs) / Drones – Aerial search, inspection, and emergency illumination due to its lightweight construction and remote PWM control.

2. Off-road vehicles & ATVs – Auxiliary driving lights for night-time off-roading, rally racing, and agricultural or forestry machinery.

3. Marine and boating equipment – Deck lighting or searchlight use (splash-proof against light rain, not for submersion).

4. Construction and mining machinery – Work site illumination for excavators, cranes, and drilling rigs, benefiting from wide voltage input (20–80V) and rugged aluminum housing.

5. Public safety and emergency rescue – Portable or vehicle-mounted lighting for search-and-rescue operations, fire scenes, or disaster response.

6. Industrial inspection and maintenance – Fixed or temporary lighting for power plants, tunnels, workshops, and heavy equipment servicing.

7. Outdoor events and filming – Supplementary lighting for night shoots, concerts, or camping setups, with adjustable tilt (0–85°) for precise aiming.
