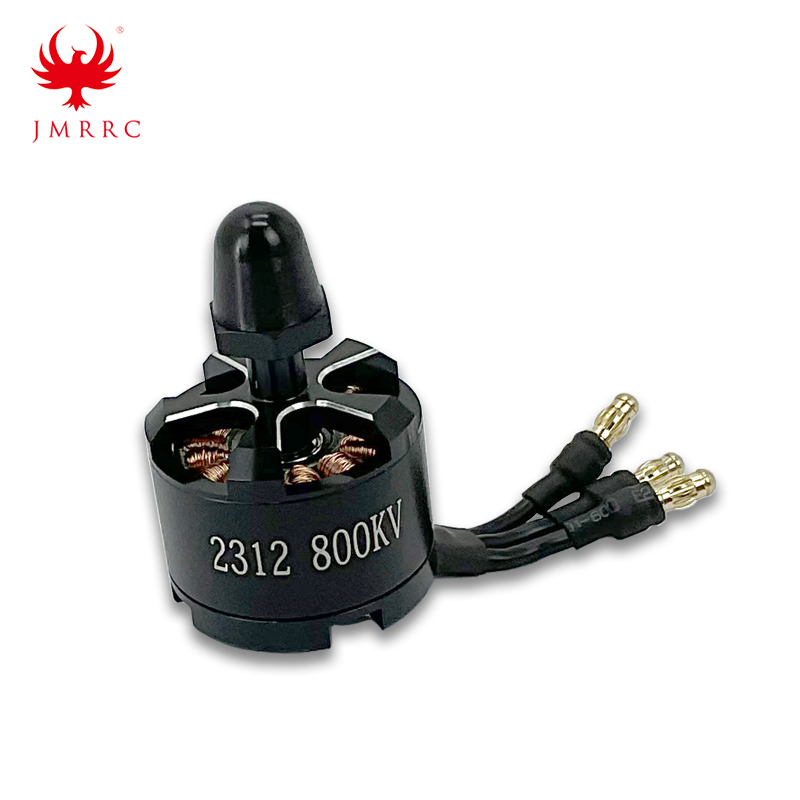

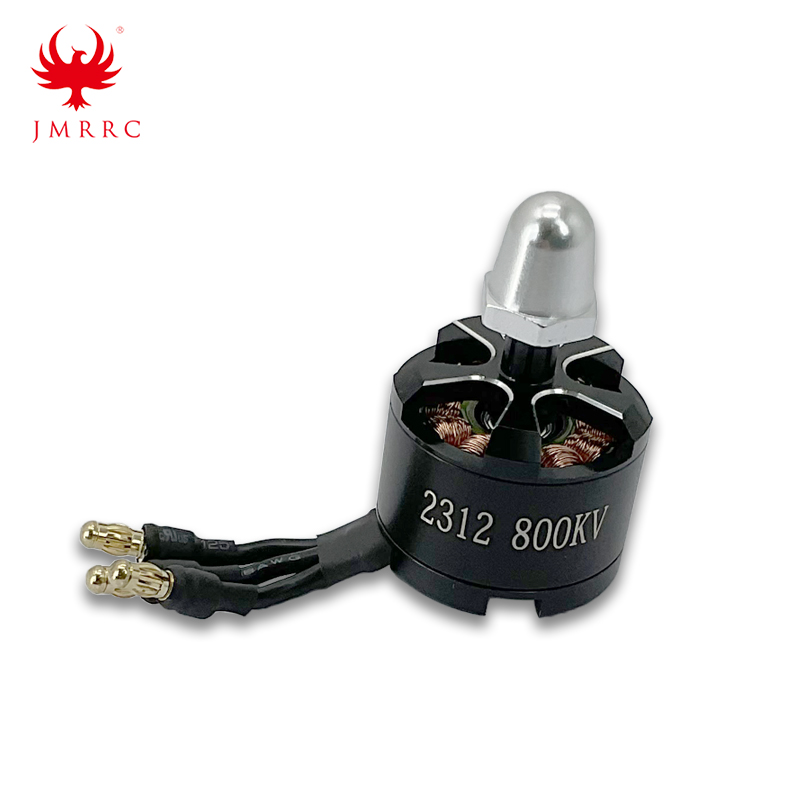

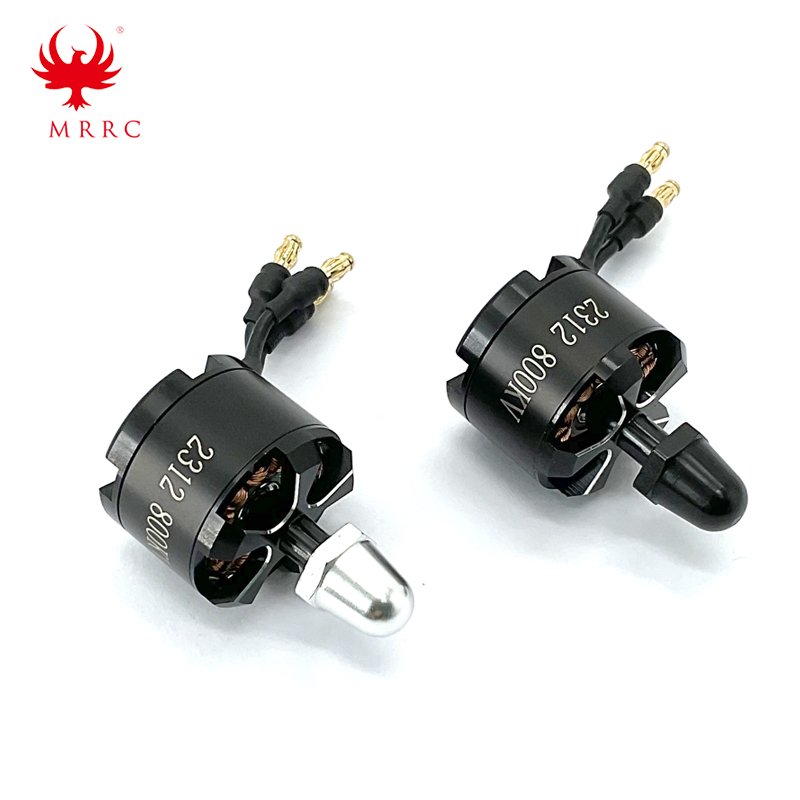

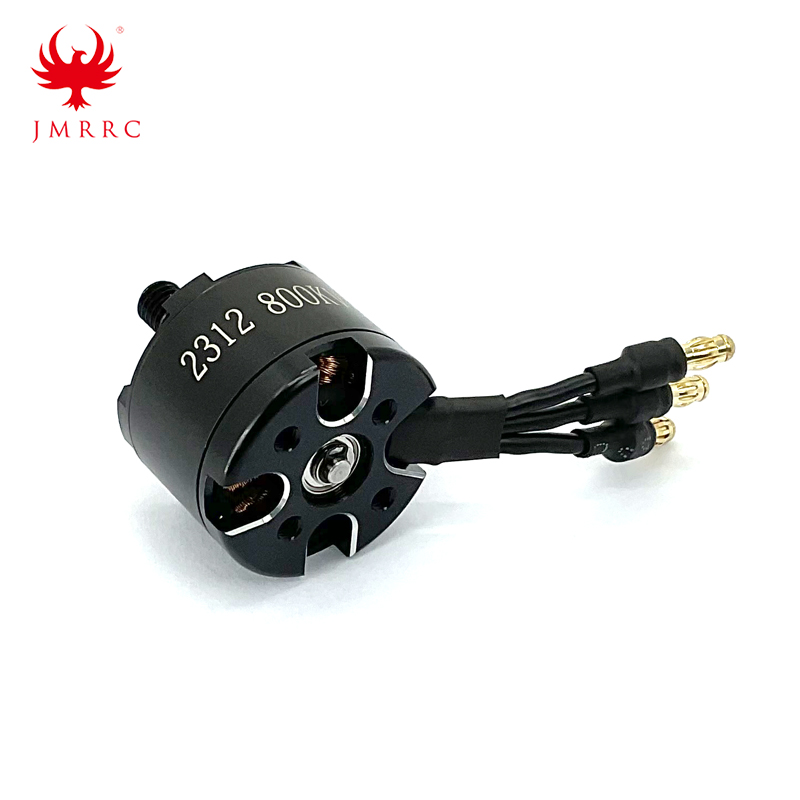

2312 800KV Brushless Motor For DIY Multirotor Drone

  • Model Number: 2312 800KV
  • N.W.: about 62g

  • Parameters
  • Model Number: 2312 800KV
  • N.W.: about 62g

2312 800KV Brushless Motor For DIY Mini Multirotor CW CCW Quadcopter Racing Drone Motors JMRRC

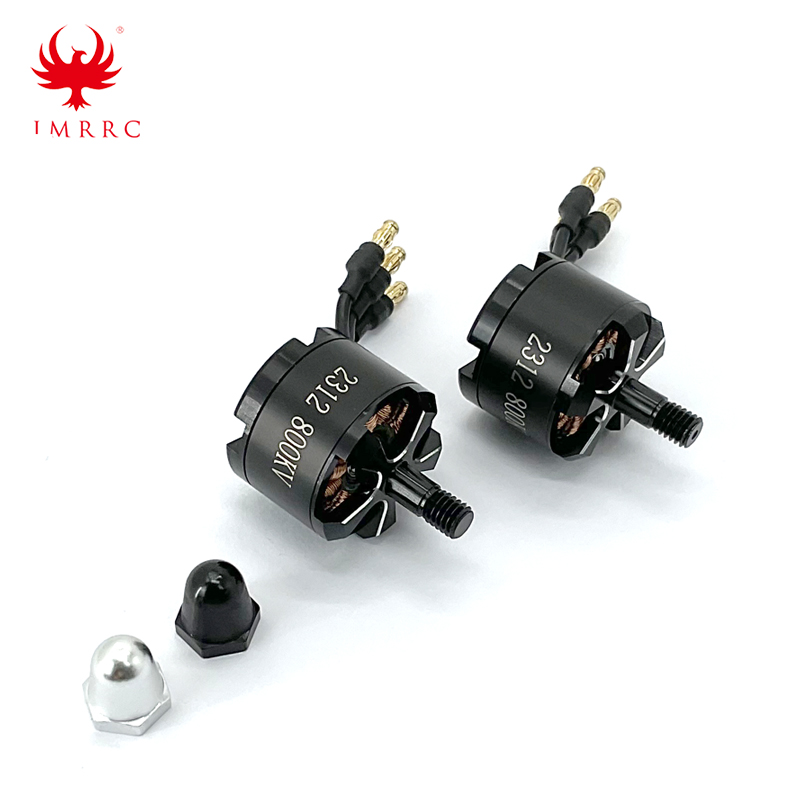

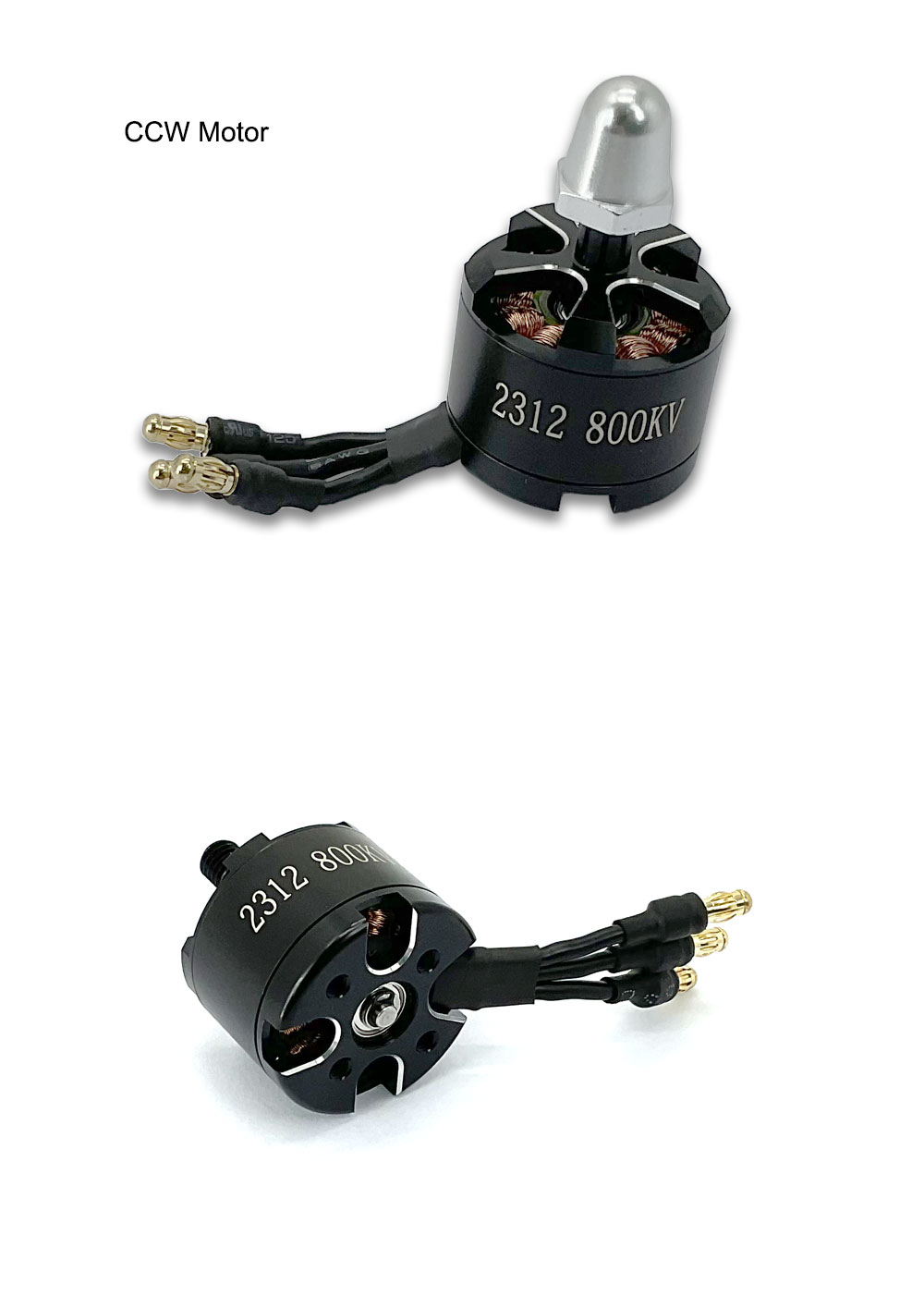

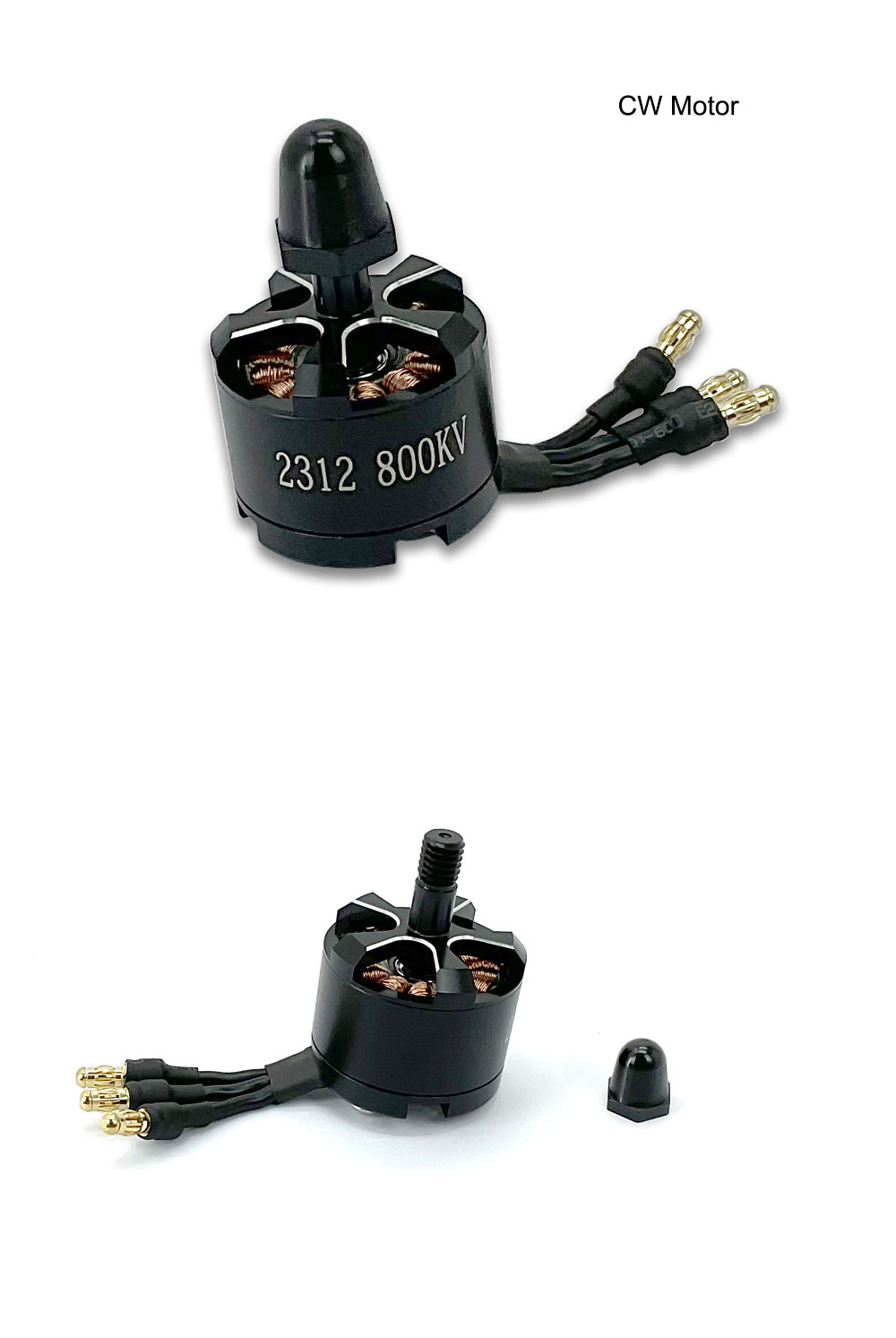

Note: This motor distinguishes CW and CCW direction, when purchasing it, please pay attention to buy 2pcs together. For example, a quadcopter drone will be used 2 CW and 2 CCW of this motor.



This motor is equipped with high-performance, high-temperature permanent magnet. Comparing to other models motors on the market, it it can withstand higher temperature, which is better for long flight time.

Semi-closed aluminum shell design, with no vibration.

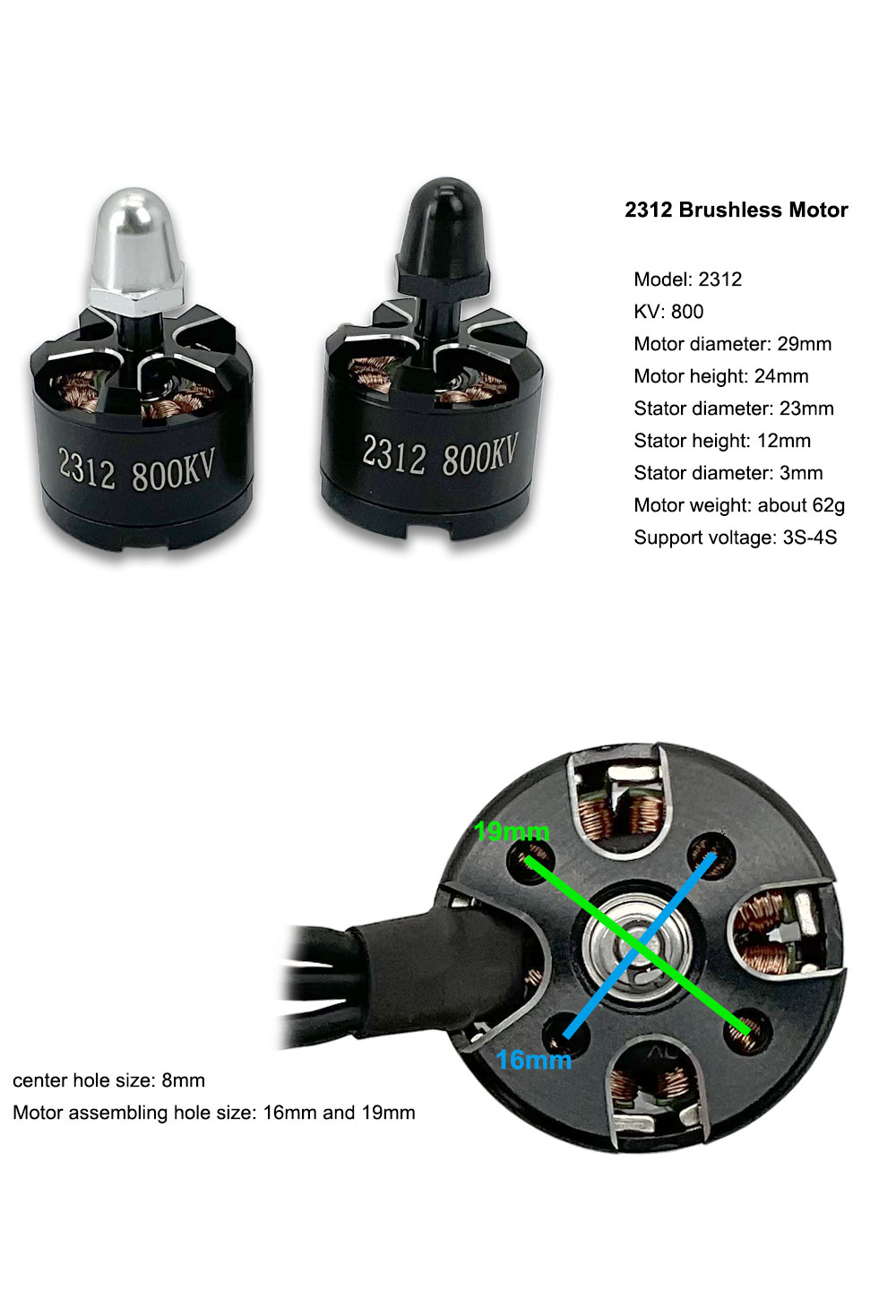

Specification:

Model: 2312

KV: 800KV

Motor diameter: ∅ 29mm

Motor height: 24mm

Stator diameter: 23mm

Stator height: 12mm

Stator diameter: ∅ 3mm

Weight: 62g

Support voltage: 11.1V-14.8V (3S-4S)

Idle current: 0.5A

Top mounting: M5

Bottom mounting: 16*19mm







2312 800KV Brushless Motor For DIY Multirotor Drone
