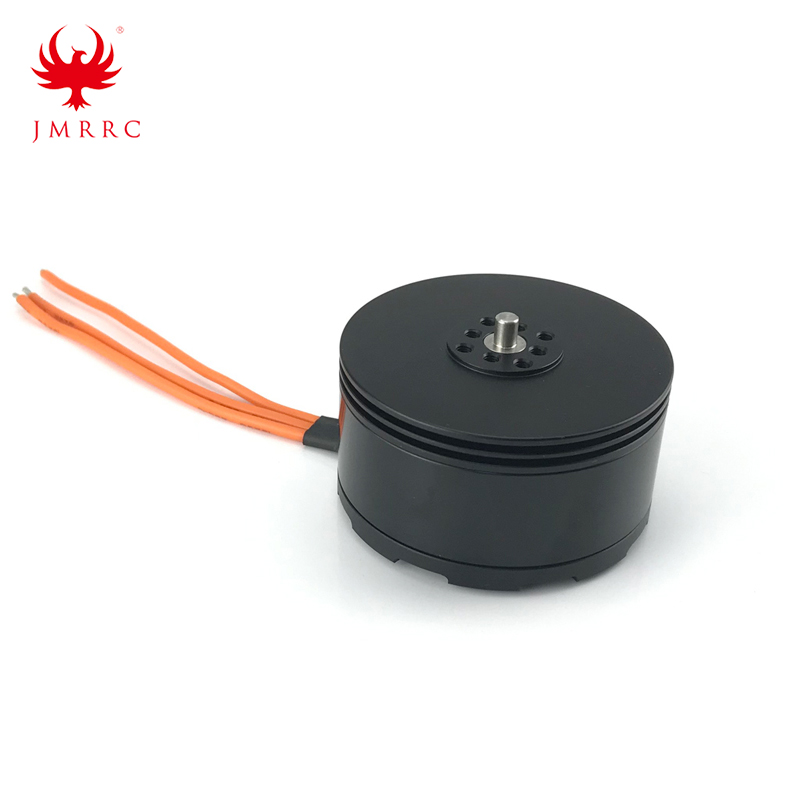

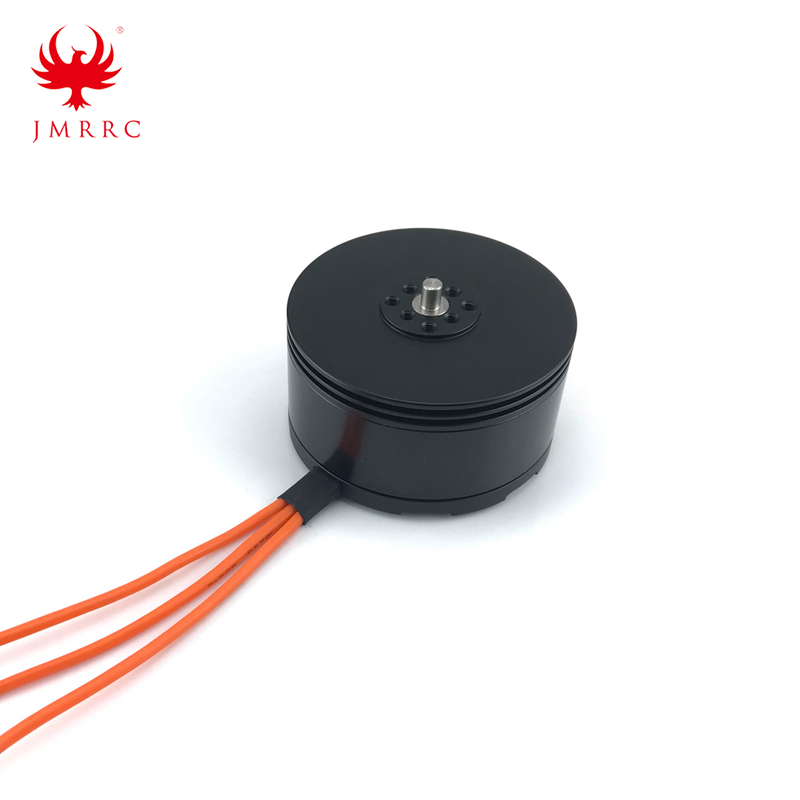

5015 Motor KV330 KV150 6S/12S Long Range Brushless Motor For RC FPV Racing

  • Model Number: JMR-5015
  • Materials: aluminum alloy
  • N.W.: about 244g

  • Parameters
  • Model Number: JMR-5015
  • Materials: aluminum alloy
  • N.W.: about 244g

5015 Motor KV330 KV150 6S/12S Long Range Brushless Motor For RC FPV Racing 21/22inch Drones Quadcopter JMRRC

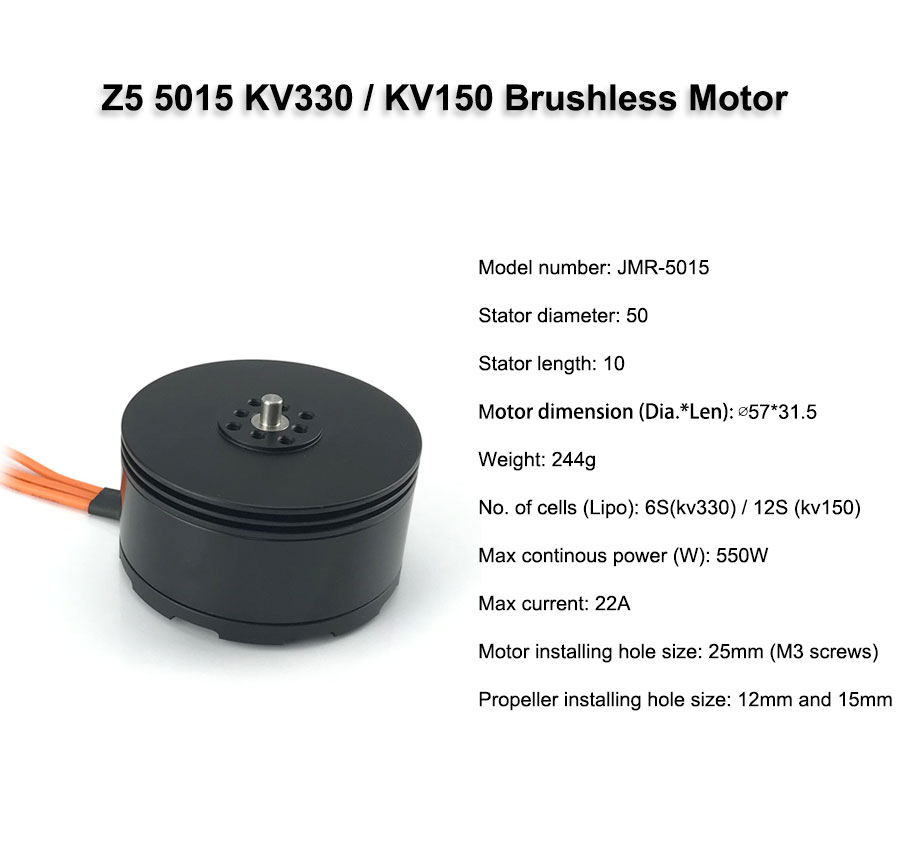

Specification:

Model number: JMR-5015

Configuration: 24N28P

Stator diameter: 50

Stator length: 10

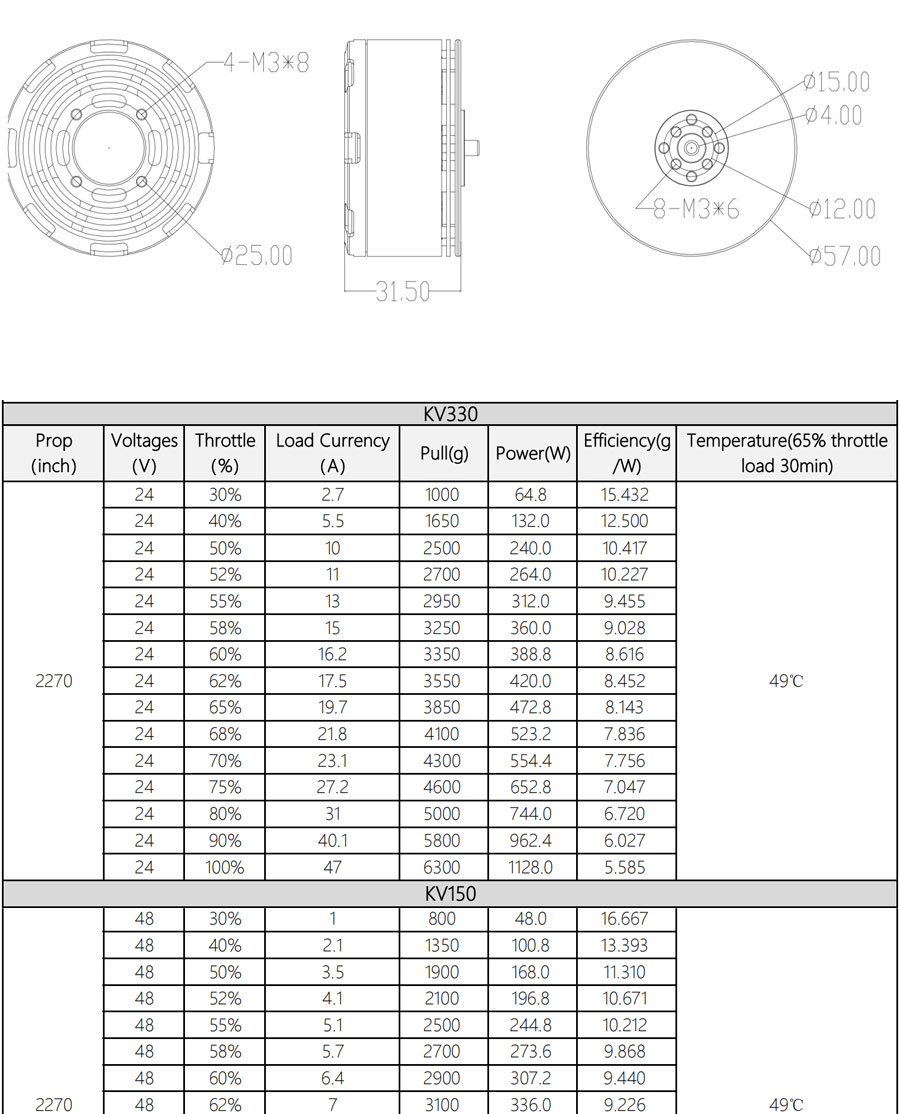

Motor dimension (Dia.*Len): ø57*31.5mm

Weight: 244g

Idle current(10)@20V(A): 0.69A

No. of cells (Lipo): 6S / 12S

Max continous power (W): 550W

Internal resistance: 127mΩ

Max current: 22A

Motor installing hole size: 25mm (M3 screws)

Propeller installing hole size: 12mm and 15mm (M3 screws)


Note:

KV330 is using for 6S power, KV150 is using for 12S power.


5015 motor is a high efficiency brushless motor for industry drone and DIY drone.


This motor is designed with waterproof, dustproof, which is better to use for many different applications. Thecentrifugal cooling system brings a higher efficiency of heat sinking and with reliable performance for continue running.


This motor mas pull force is 6.75kg more.


Recommend drone take-off weight:

As quadcopter, recommend 10-13.2kg

As Hexacopter, recommend 15-19.8kg

As Octocopter, recommend 20-26.4kg

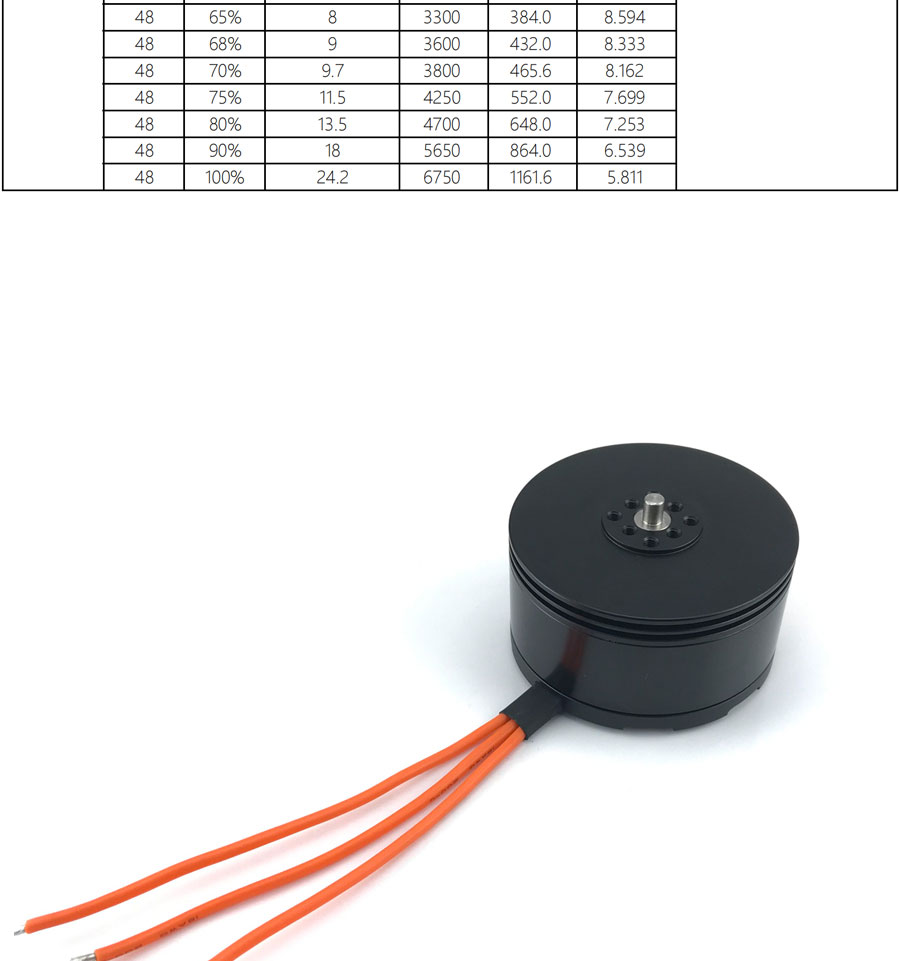

Testing Data:

The drone take-off weight is 3.5kg, using 2110 foldable propeller and 1pcs of 6S 16000mAh battery, the drone hovering time is about 70mintues.


The drone take-off weight is 5.1kg, using 2110 foldable propeller and 1pcs of 6S 16000mAh battery, the drone hovering time is about 45mintues.


The drone take-off weight is 7.2kg, using 2270 foldable propeller and 1pcs of 6S 22000mAh battery, the drone hovering time is about 38mintues.


The drone take-off weight is 8.32kg, using 2110 foldable propeller and 1pcs of 6S 22000mAh battery, the drone hovering time is about 15mintues.
