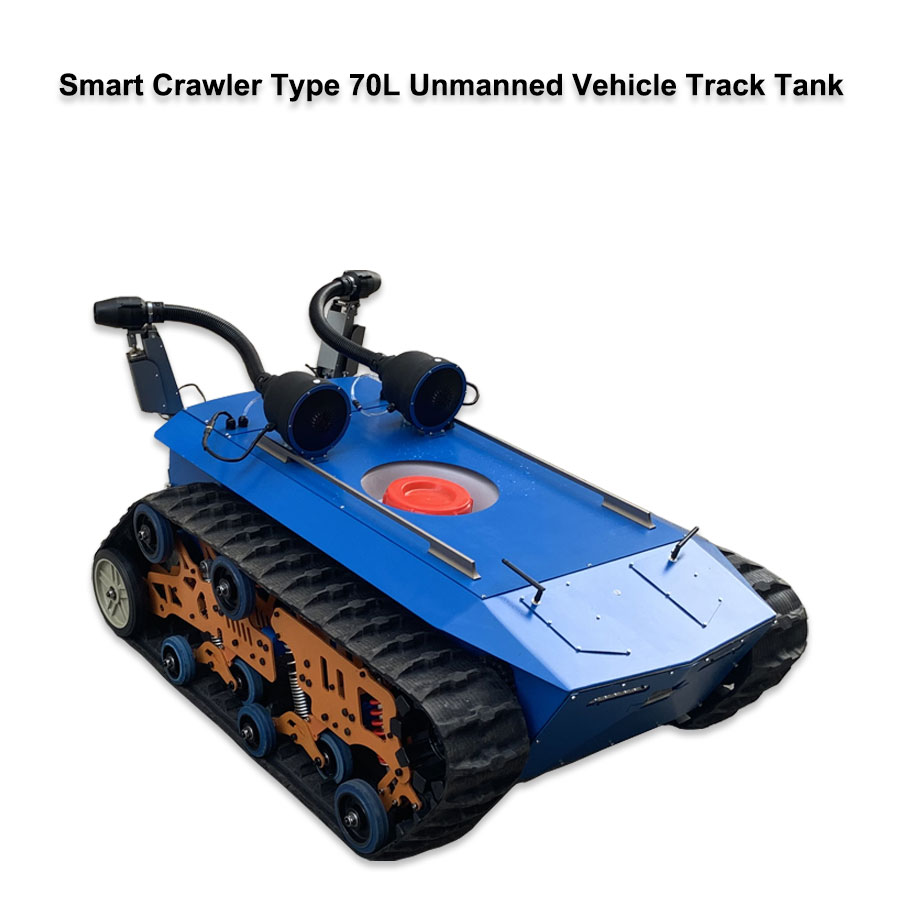

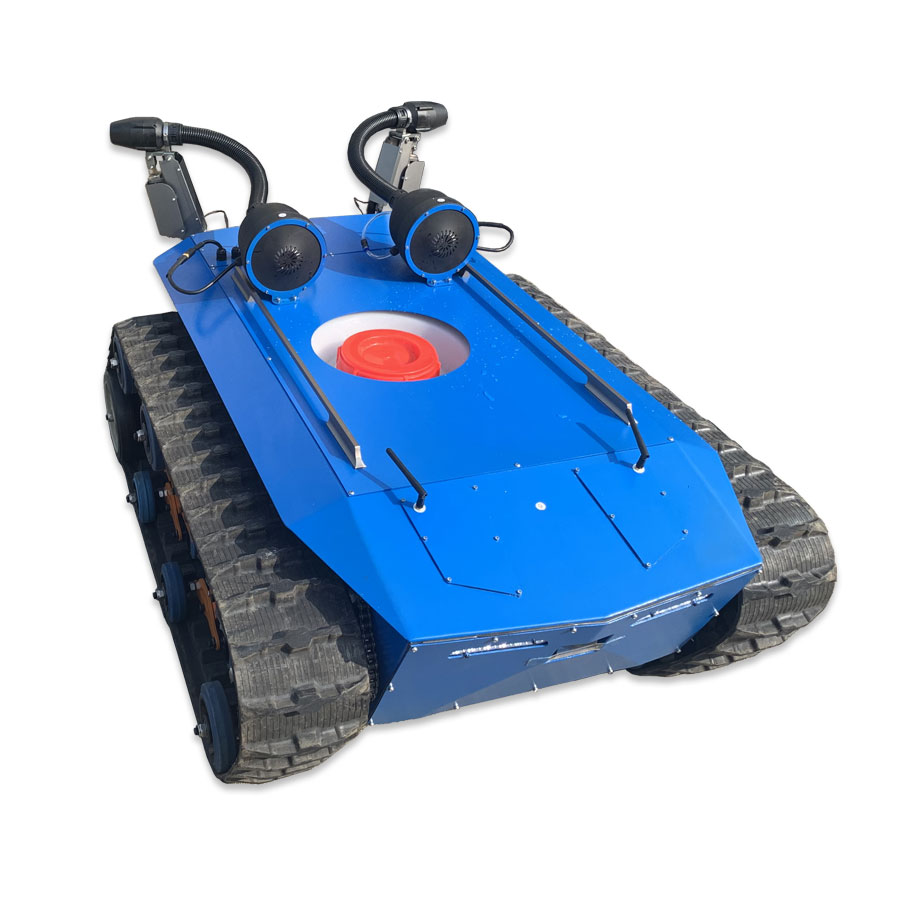

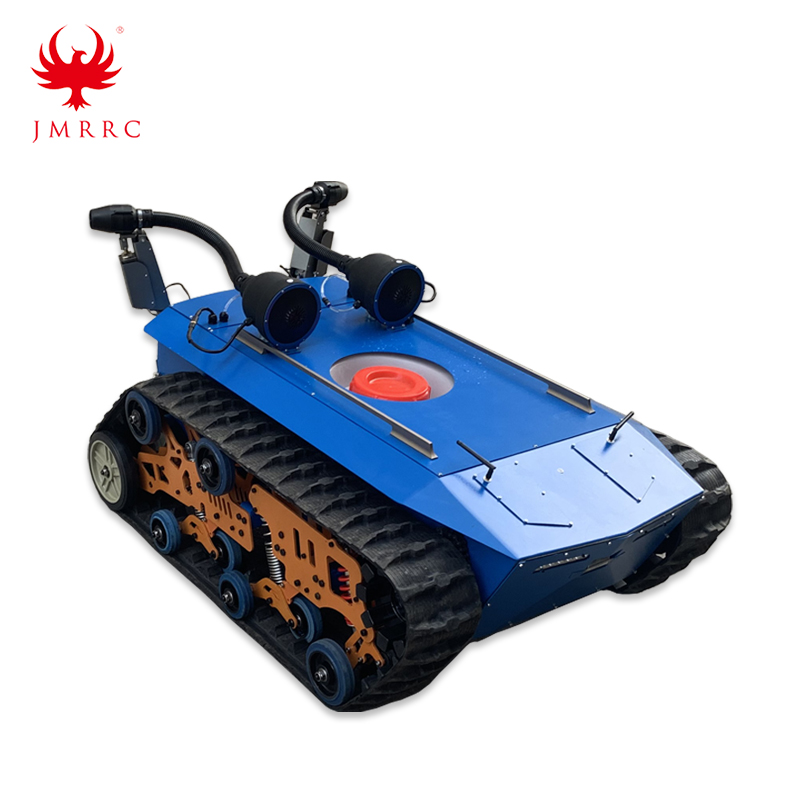

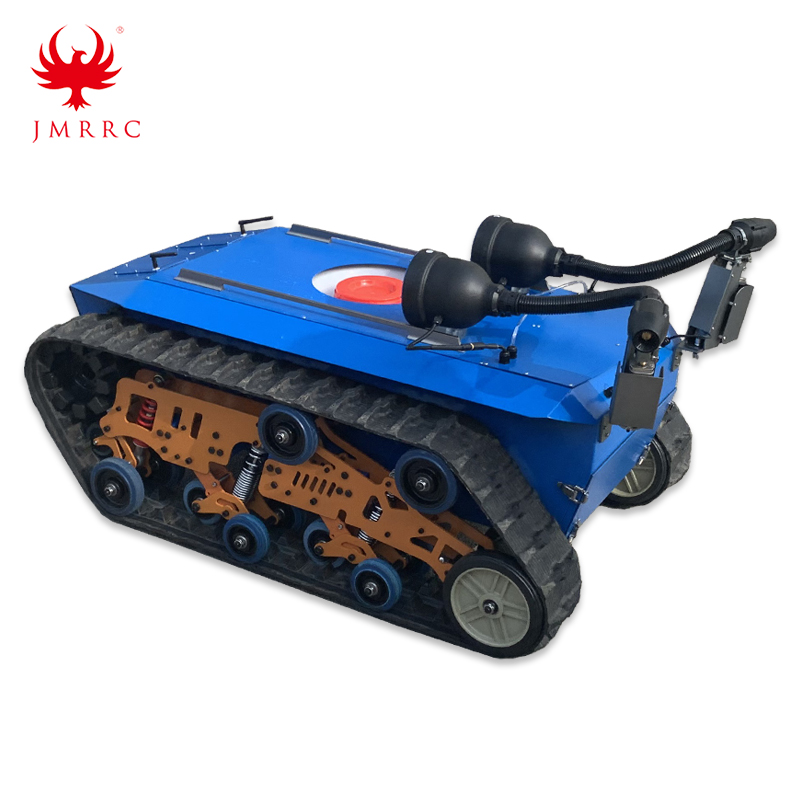

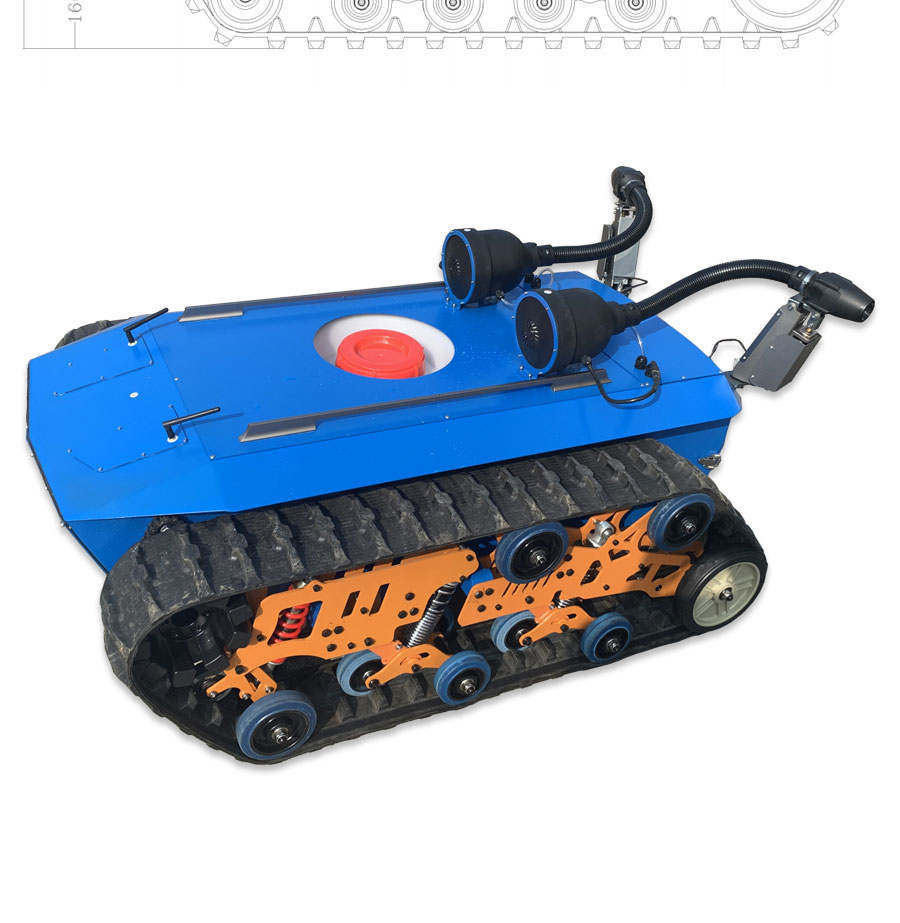

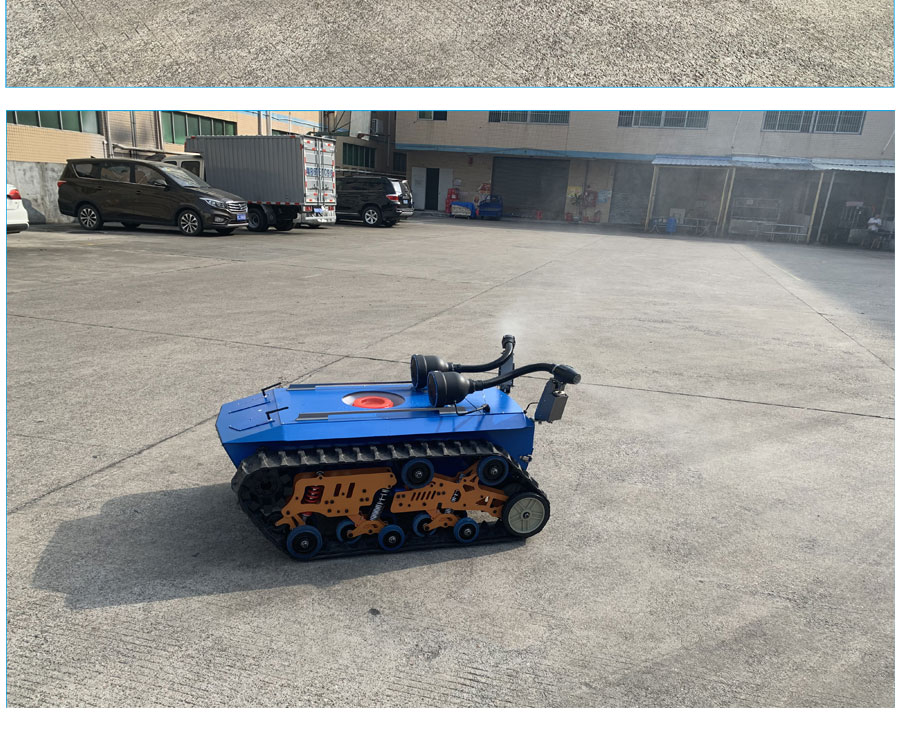

70L Track Tank Pesticide Spraying Robot Car Irrigation Vehicle Streets Cleaning Robot

  • Product: 70L Rubber Track Tank
  • Measurement: 1278.5*875*521.5mm
  • N.W.: 160kg

  • Parameters
  • Product: 70L Rubber Track Tank
  • Measurement: 1278.5*875*521.5mm
  • N.W.: 160kg

70L Track Tank Pesticide Spraying Fumigation Spray Robot Car Irrigation Vehicle Streets Cleaning Robot JMRRC



Package Including:

Completed 70L rubber tracked tank * 1 set

Skydroid T10 remote controller * 1 set


Note: The price is not including the Lipo battery and charger. If you need them, you can contact us.

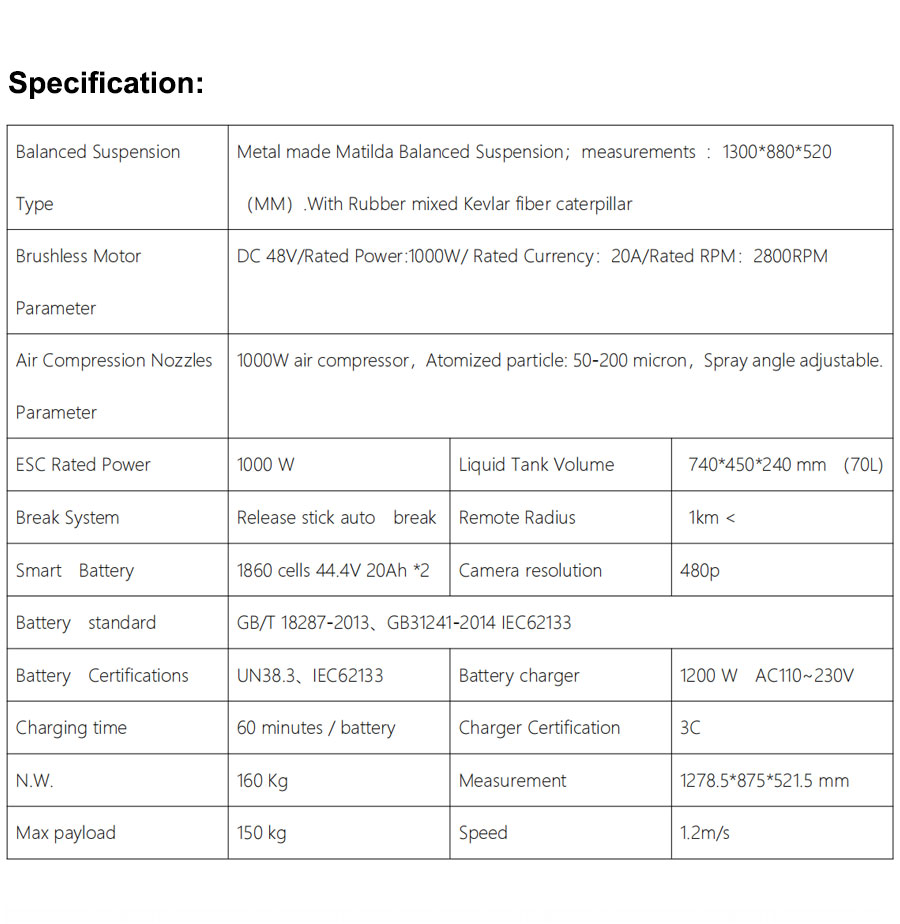

Specification:

Balanced suspension type: metal made matilda balanced suspension;

measurements: 1300*880*520mm, with rubber mixed kevlar fiber caterpillar

Brushless motor parameter: DC 48V / Rated power: 1000W / Rated currency: 20A / Rated RPM: 2800RPM

Air compression nozzles parameter: 1000W air compressor / Atomized particle: 50-200 micron, spray angle adjustable

ESC rated power: 1000W

Liquid tank volume: 740*450*240mm (70L)

Break sytem: release stick auto break

Remote radius: less than 1km

Support Smart battery: 1860 sells 44.4V 22000mAh * 2pcs / Tattu 12S intelligent 22000mAh battery * 2pcs

Camera resolutuon: 480P

Support battery charger: 1200W AC110V - 230V

Charging time: 60 minutes / battery

Net weight: 160kg

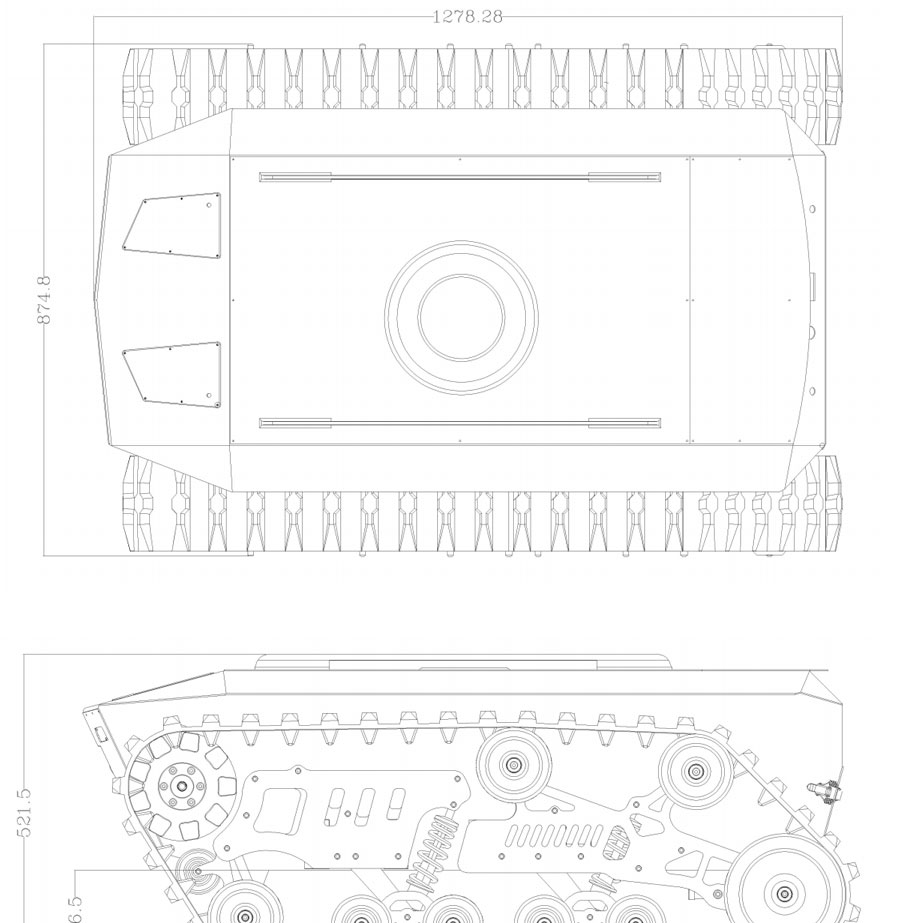

Measurement: 1278.5*875*521.5mm

Max payload: 150kg

Speed: 1.2m/s

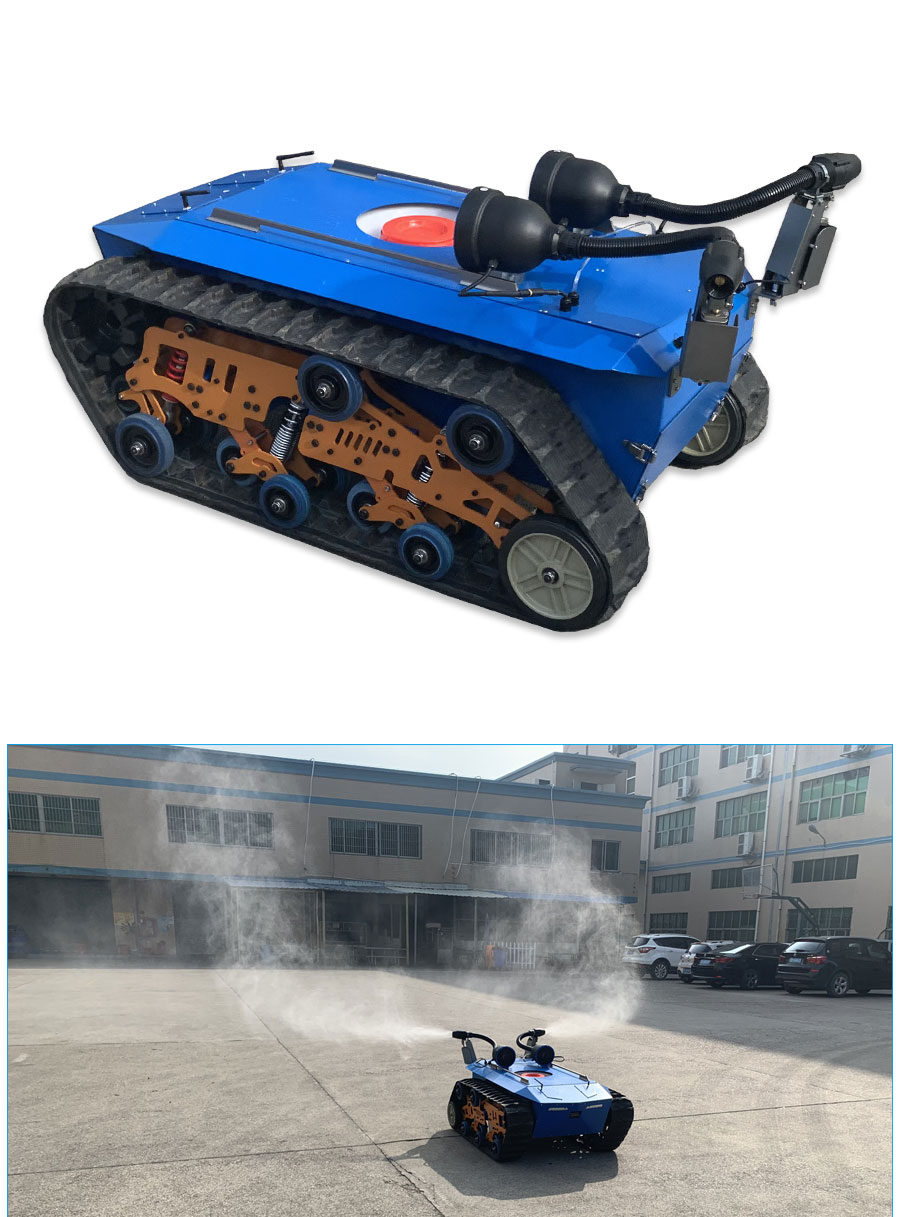

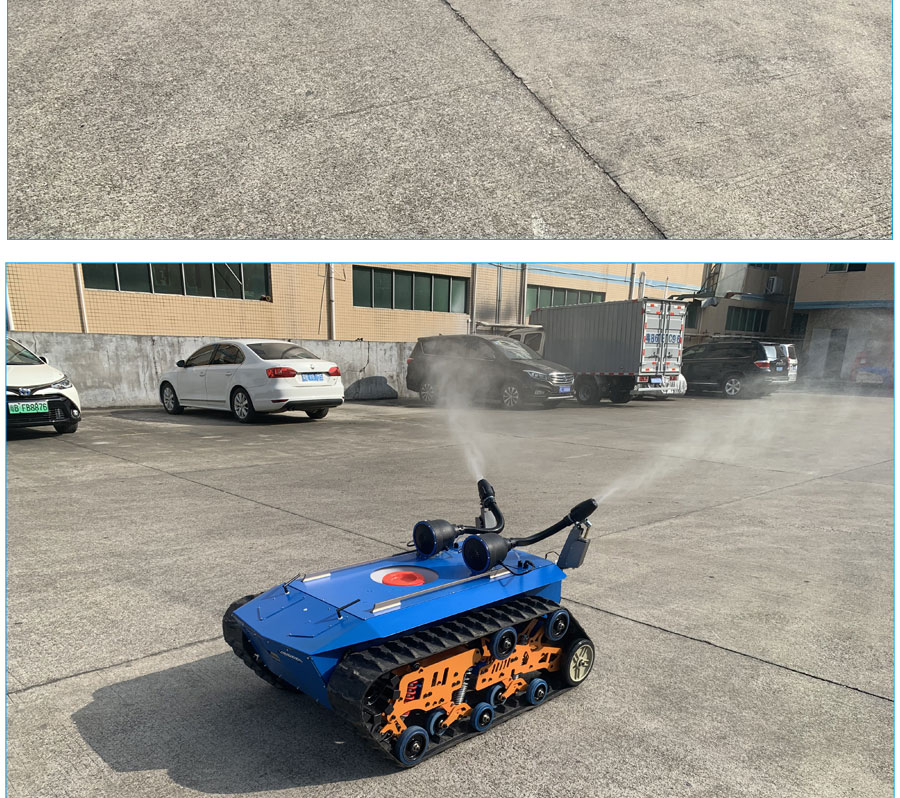

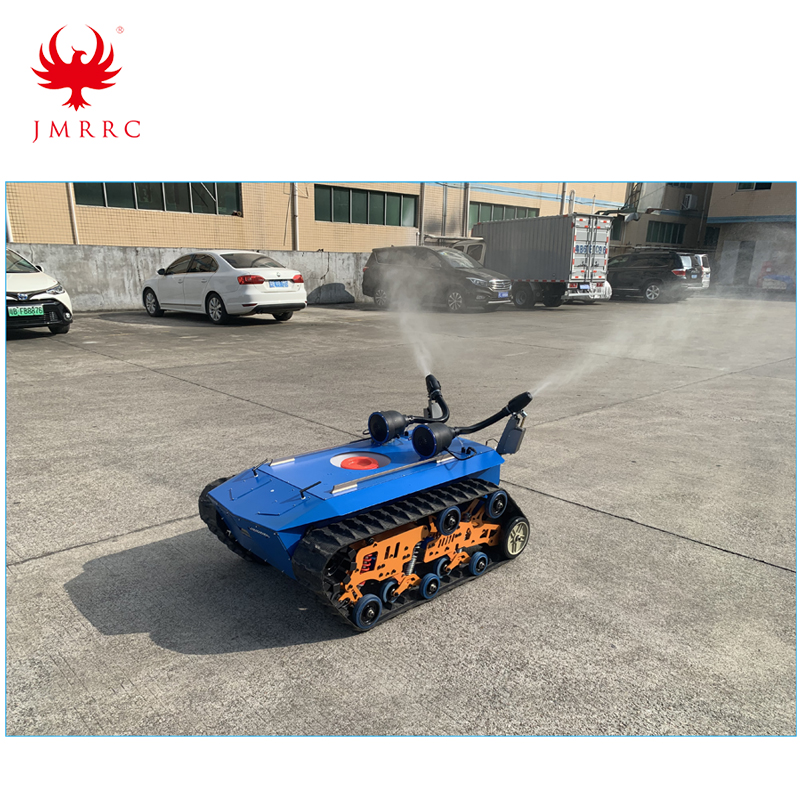

The nozzles direction can be adjusted, horizontal adjustable angle range is 0-180 degree.

The nozzles is also for auto swaying.

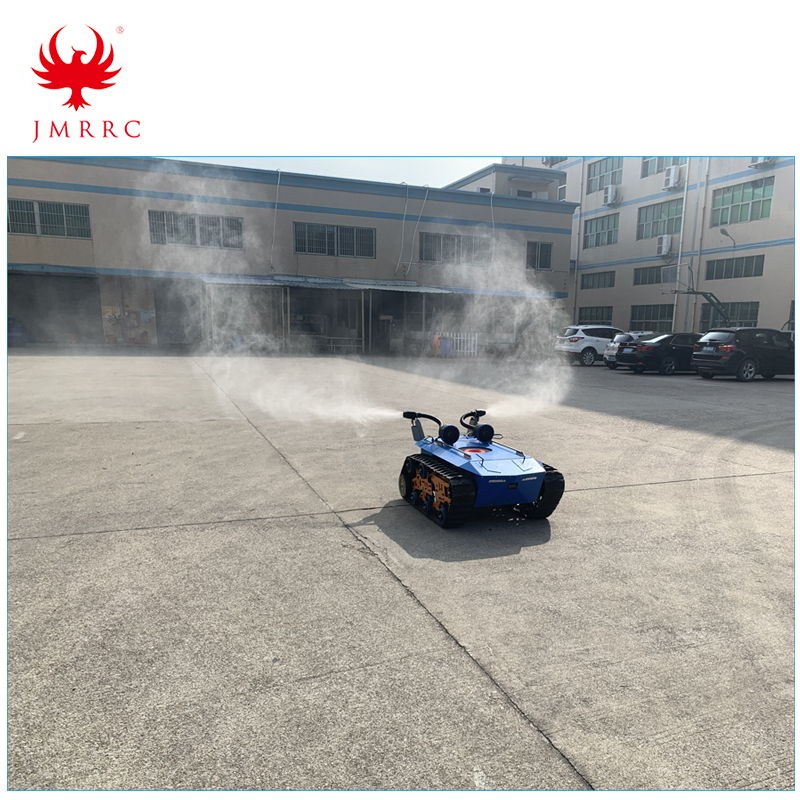

70L Track Tank Pesticide Spraying Robot Car Irrigation Vehicle Streets Cleaning Robot
