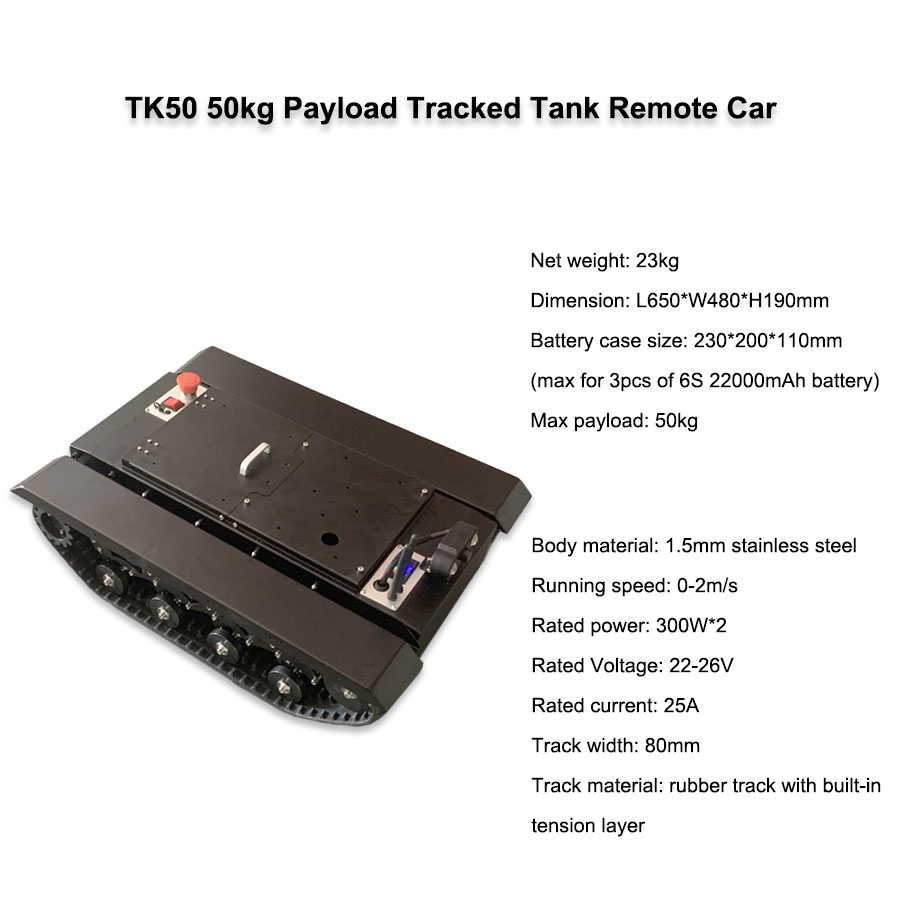

Specification:
Tank net weight: 23kg
Dimension: L650*W480*H190mm
Battery case size: 230*200*110mm (Max supports for 3pcs of 6S 22000mAh battery)
Max payload weight: 50kg
Body material: 1.5mm stainless steel

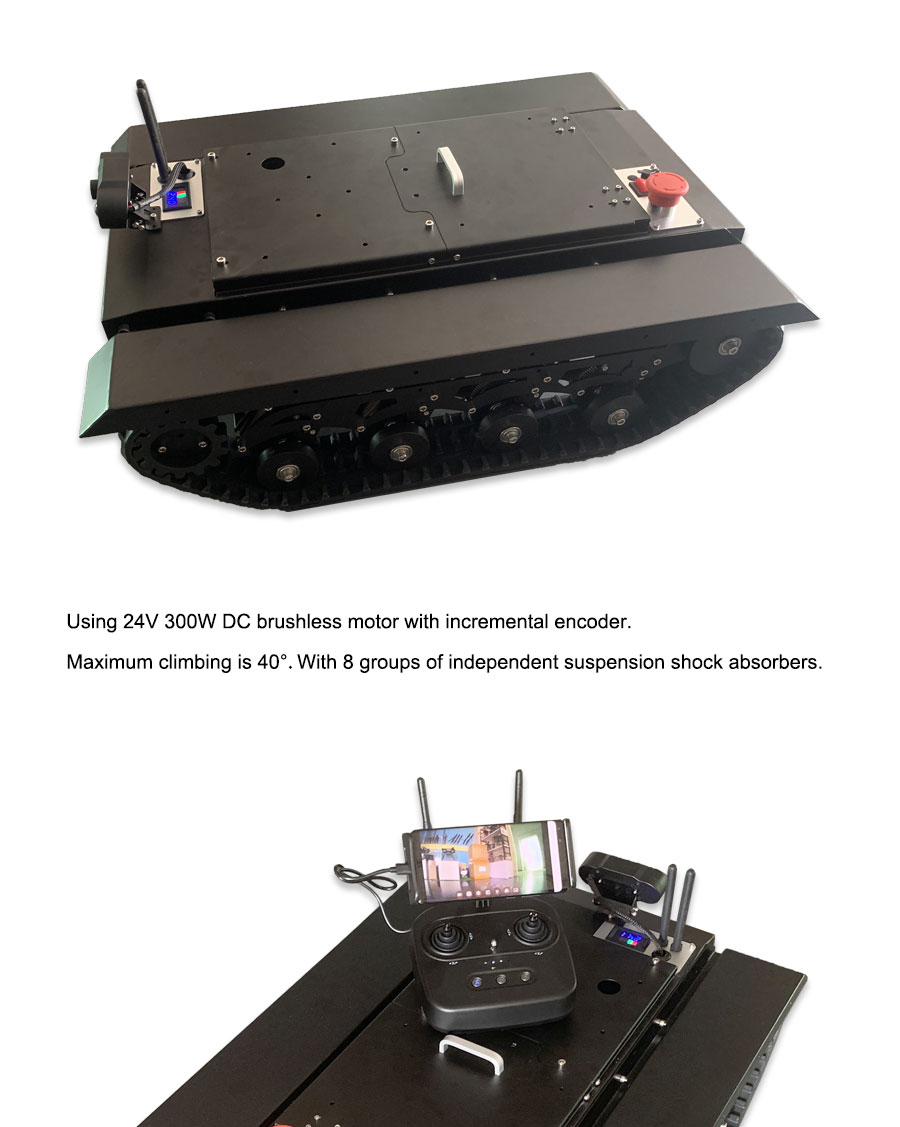

Tank motor: Brushless DC motor with incremental encoder
Running speed: 0-2m/s (The running speed depends on the motor speed and voltage.)
Rated power: 300W*2
Rated voltage: 22-26V
Rated current: 25A
Track width: 80mm
Track material: rubber track with built-in tension layer
Maximum obstacle crossing: 100mm
Surface treatment: anti-static coating
Maximum climbing: 40°
Shock absorption design: using 8 groups of independent suspension shock absorbers
Features:
- Light and easy to carry
- Track differential rotation
- Christy suspension
- Indoor and outdoor off-road driving
- Support secondary development
- High precision motor encoder
- Small size, large torque and high performance

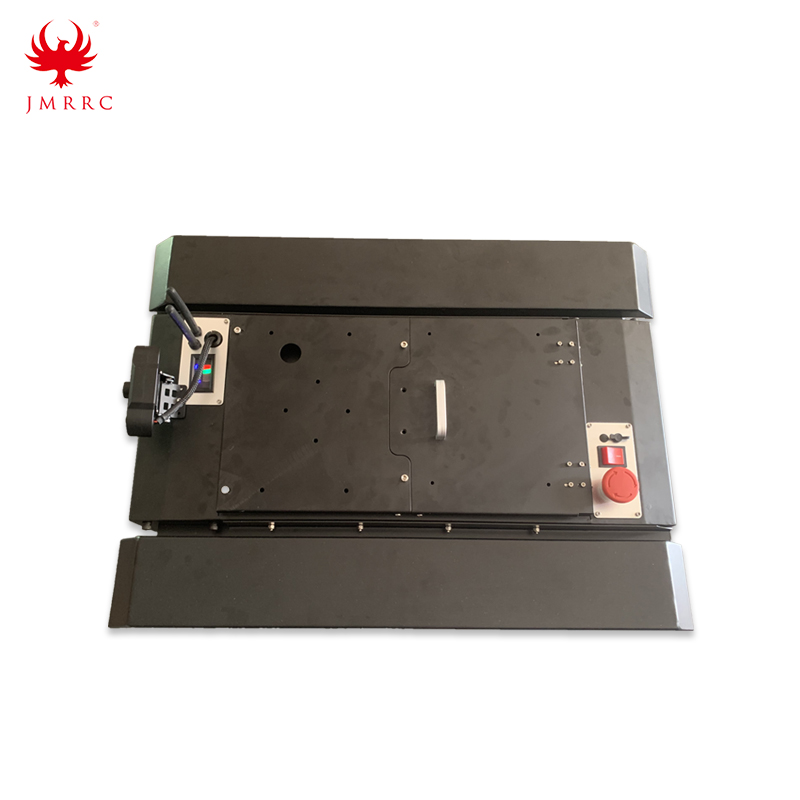

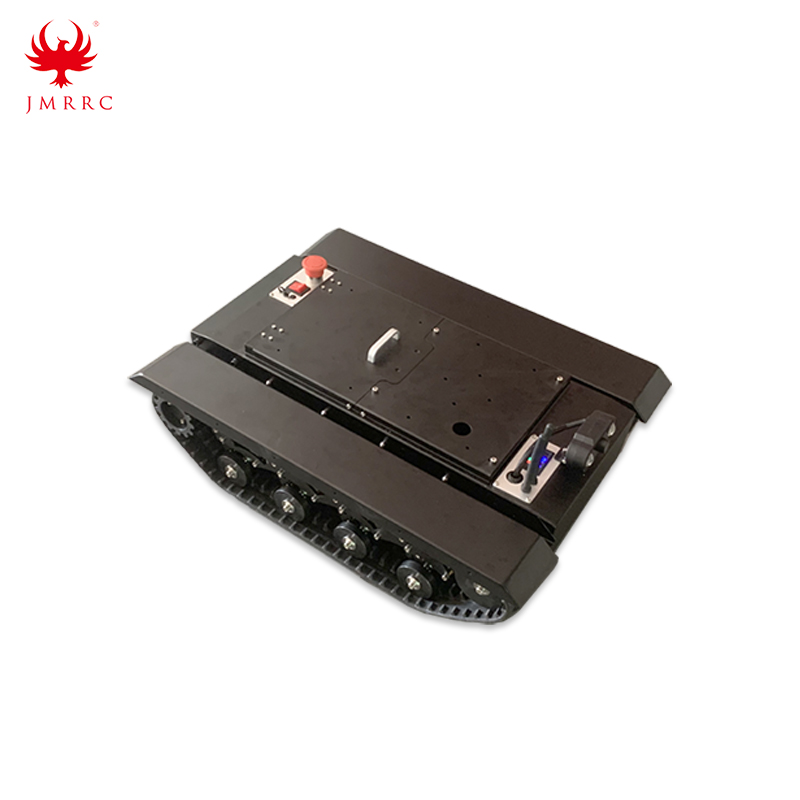

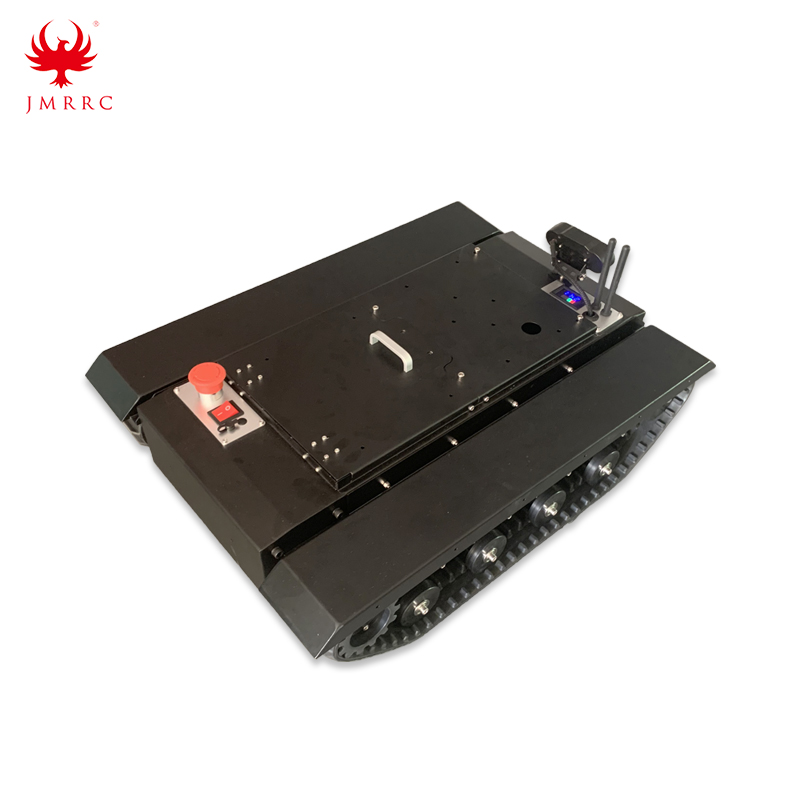

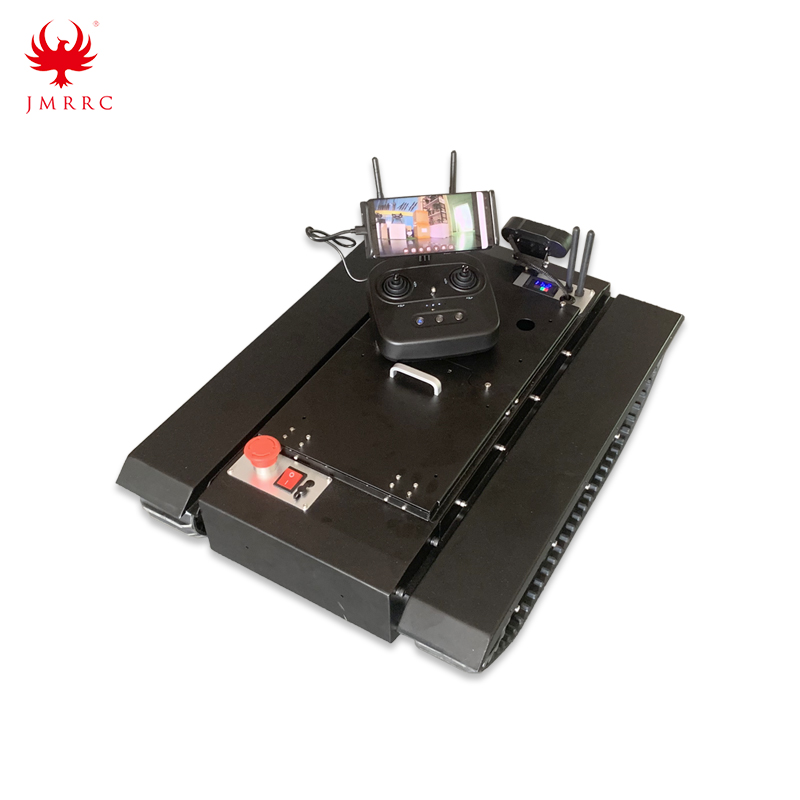

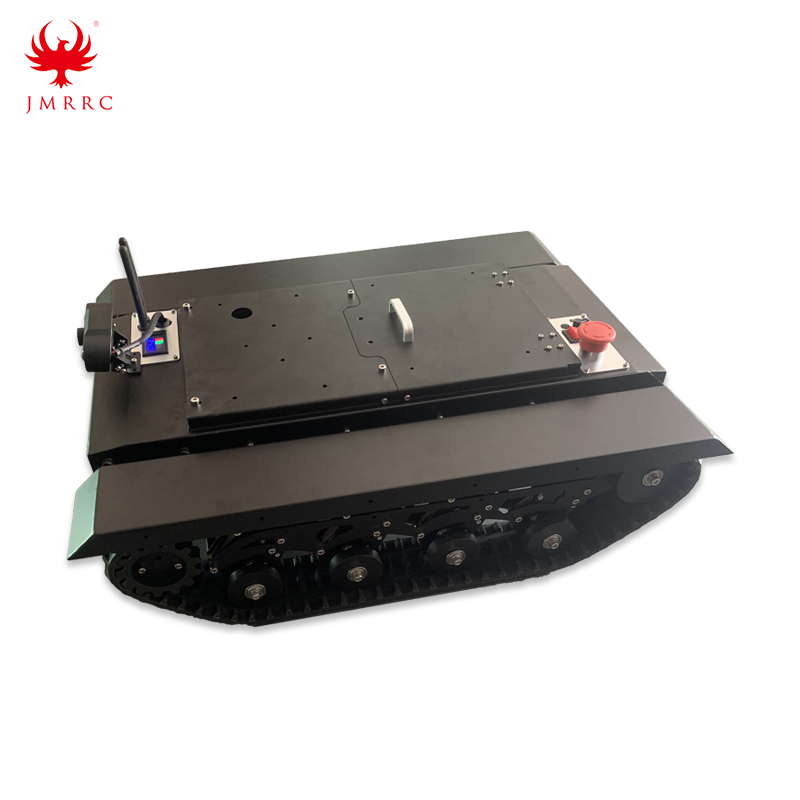

TK50 is a caterpillar chassis universal intelligent development. It uses the high carbon steel material, combined with the 8 groups of independent suspension shock absorption system, with high quality rubber tracks embedded tensile kevlar fiber layer, which makes TK50 have the advantages of small size, large torque and high performance. Its universal structure and rich expansion functions are favored and praised by the majority of development users.

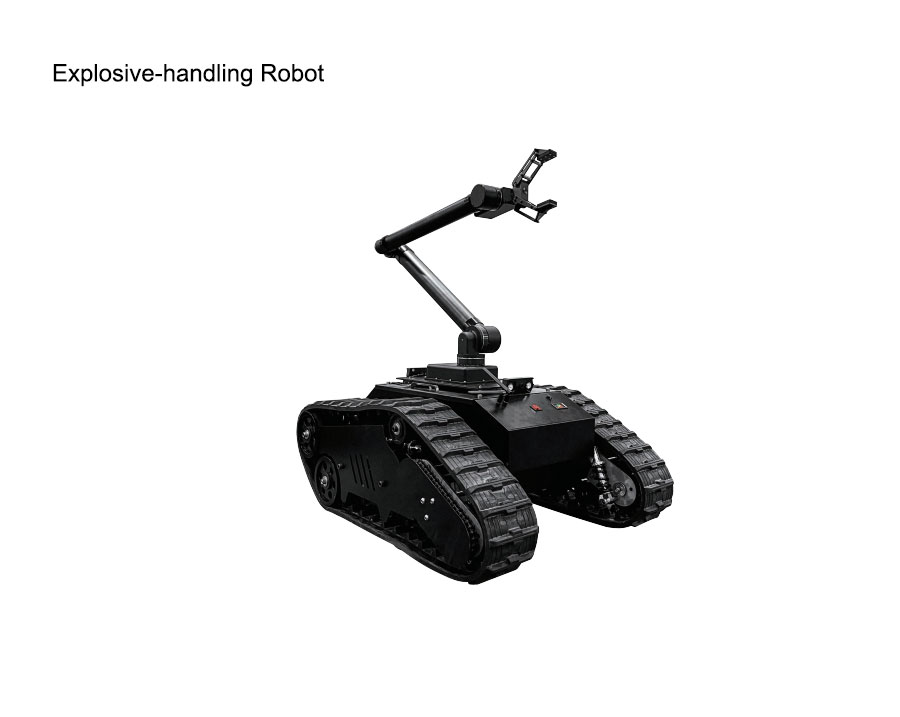

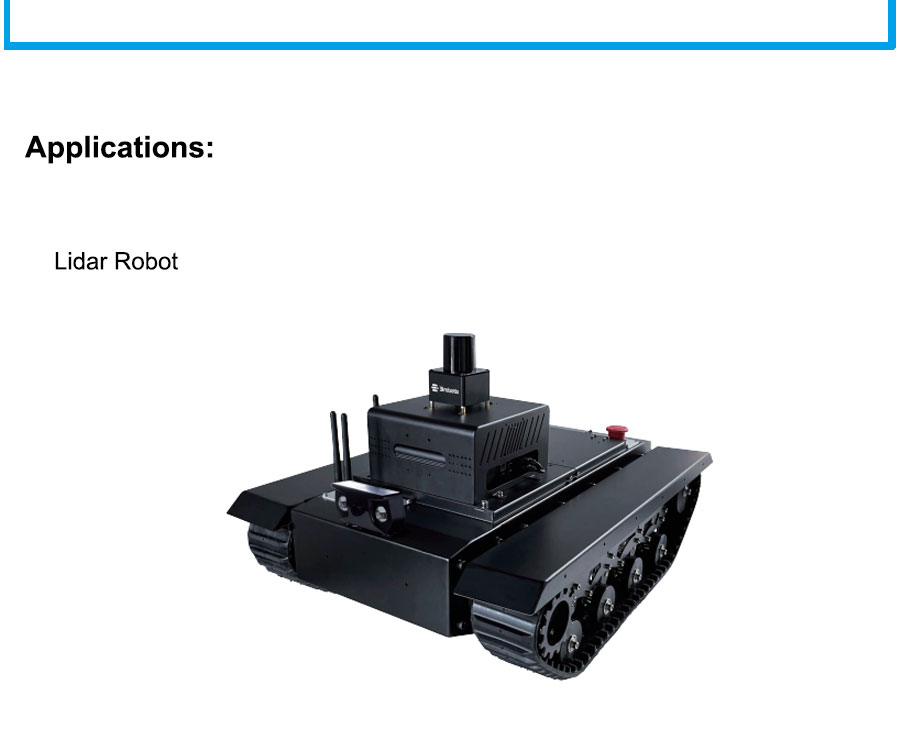

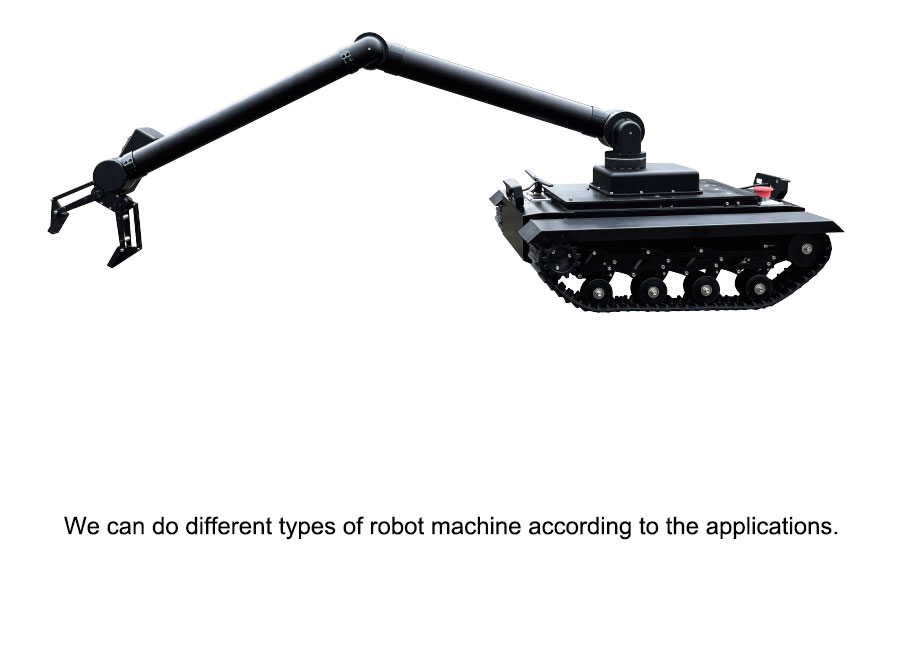

Applications: Outdoor autonomous cruise robot, outdoor off-road driving robot, security and explosive-handling robot, fire robot and industrial robot platforms such as shooting, cleaning, agricultural pesticide spraying, disinfection and epidemic prevention, scientific research, education and development.
