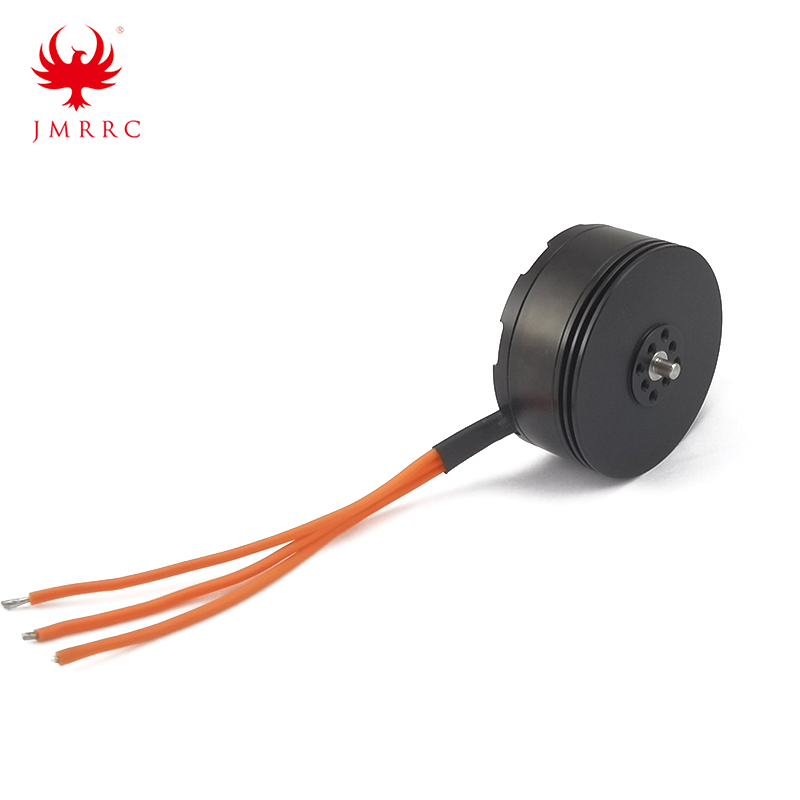

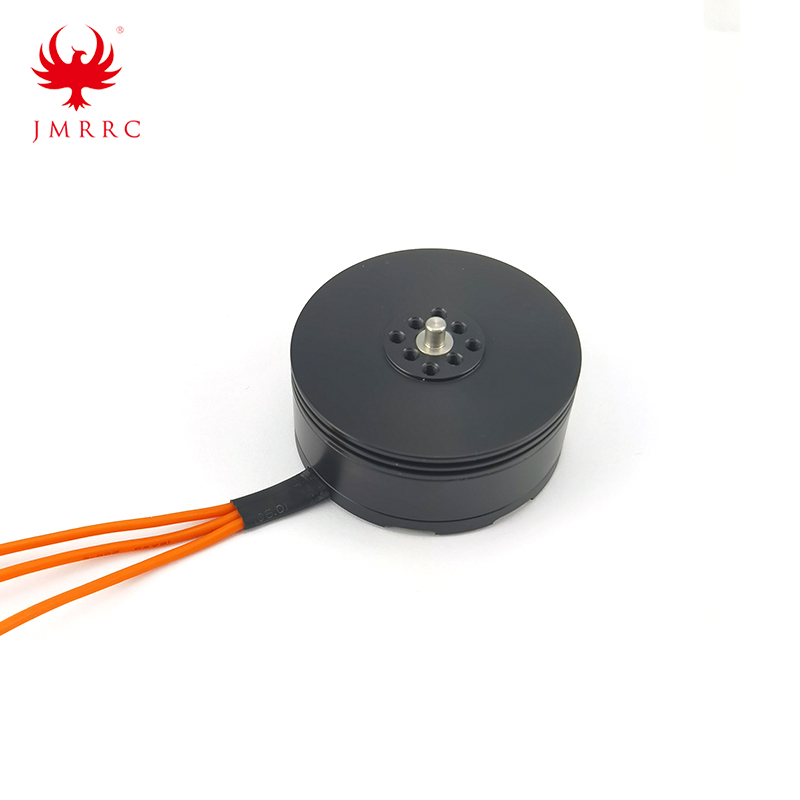

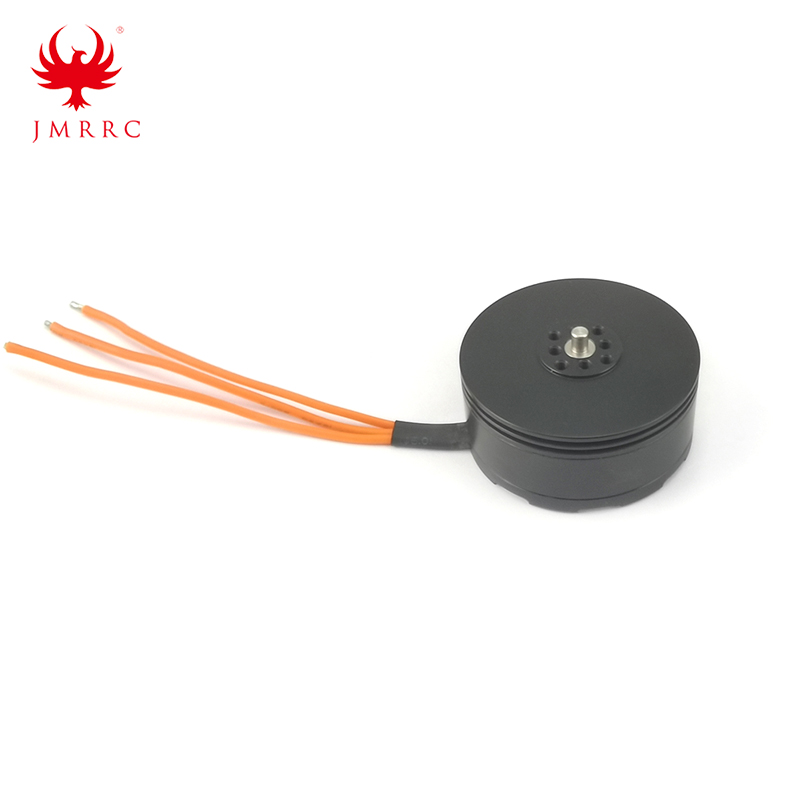

Z5s 5010 240KV / 140KV High Torque Brushless Motors For Multicopter Quadcopter Multi-Axis Aircraft

  • Model Number: Z5s 5010
  • N.W.: about 188g

  • Parameters
  • Model Number: Z5s 5010
  • N.W.: about 188g

Z5s 5010 240KV / 140KV High Torque Brushless Motors For Multicopter Quadcopter Multi-Axis Aircraft JMRRC

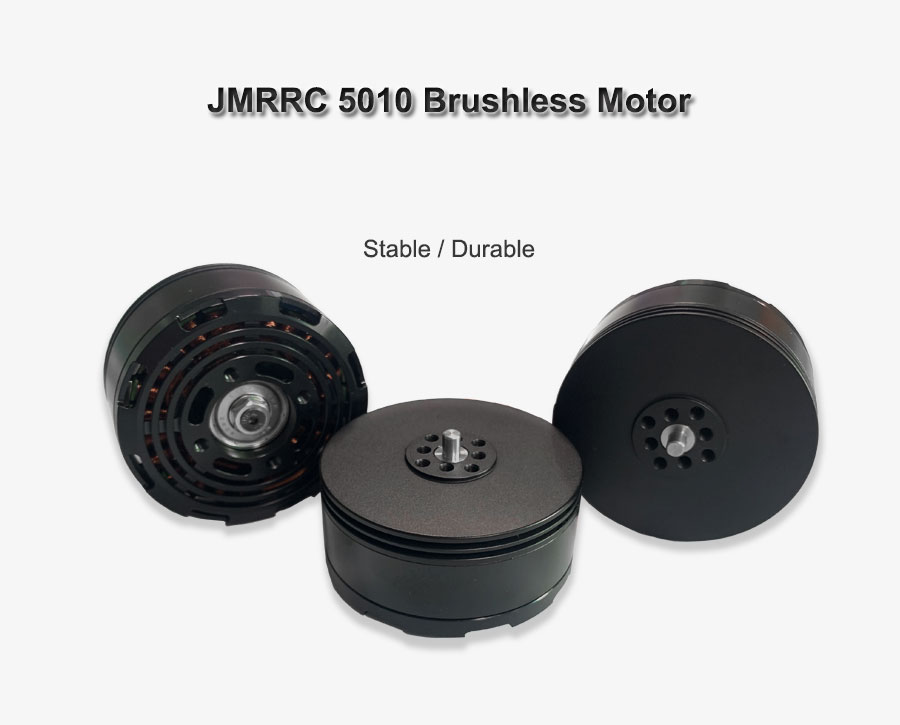

  • Z5S 5010 motor is a high efficiency brushless motor for industry drone and DIY drone.

  • Providing 0.8kg -2kg / rotor of rated load capacity. Different KV number matches different size propeller which can payload much more payload weight.

  • As quadcopter drone, if payload 1-2kg weight, the flight time can be up to 30-40 mitues. If for hexacopter drone, payload 2-5kg weight is also no problem, which can get a good performance.

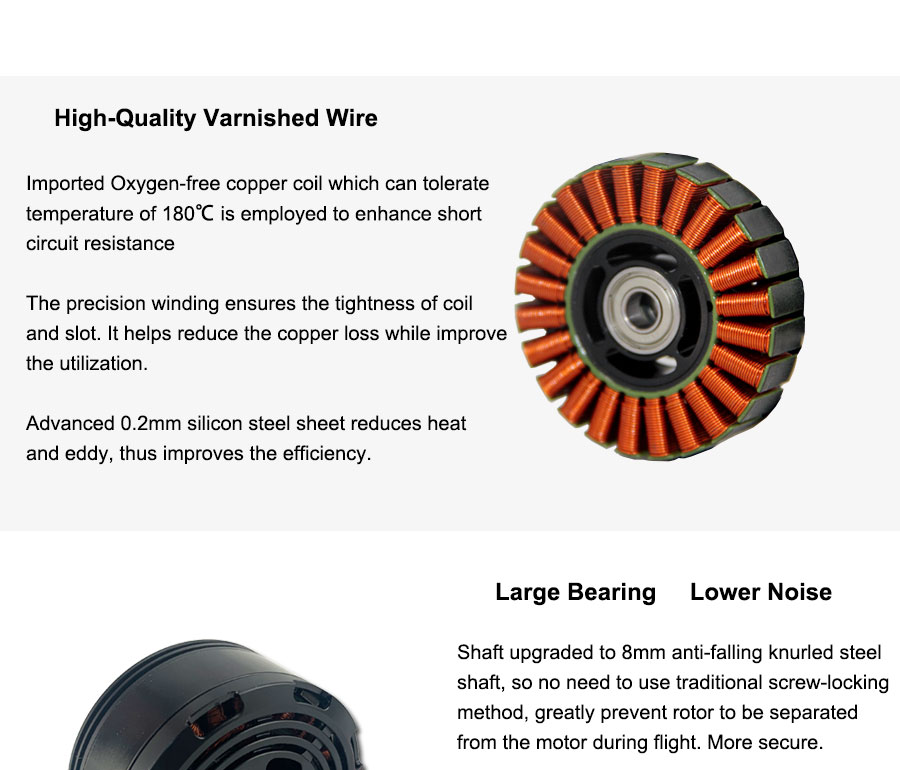

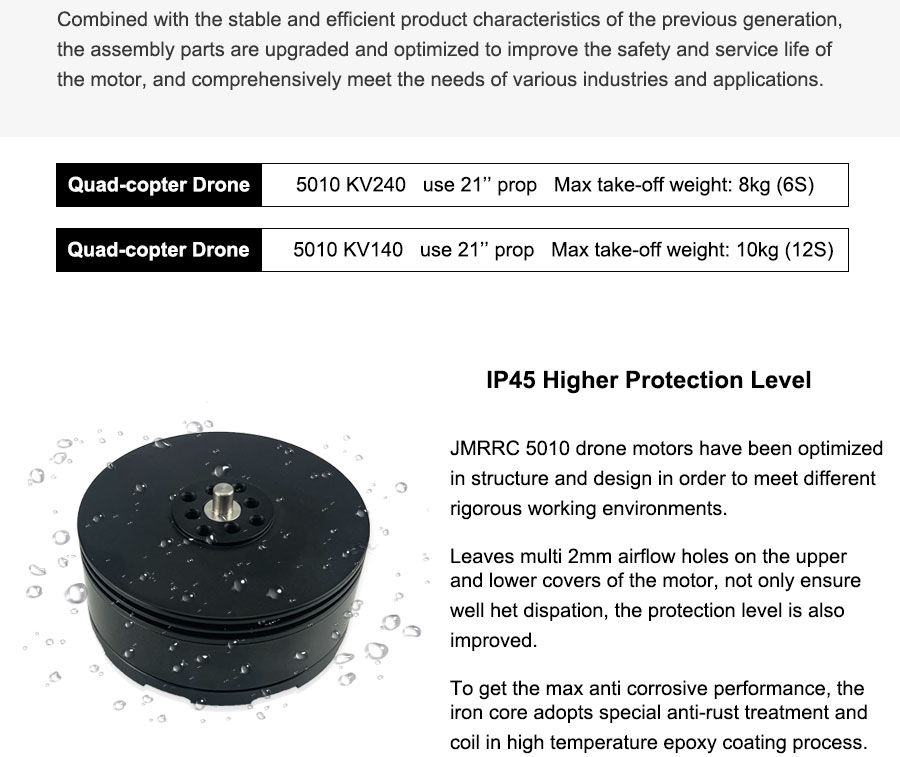

  • This motor is designed with waterproof, dustproof, which is better to use for many different application. The centrifudal cooling system brings a higher efficiency of heat sinking and with reliable performance for continue running.

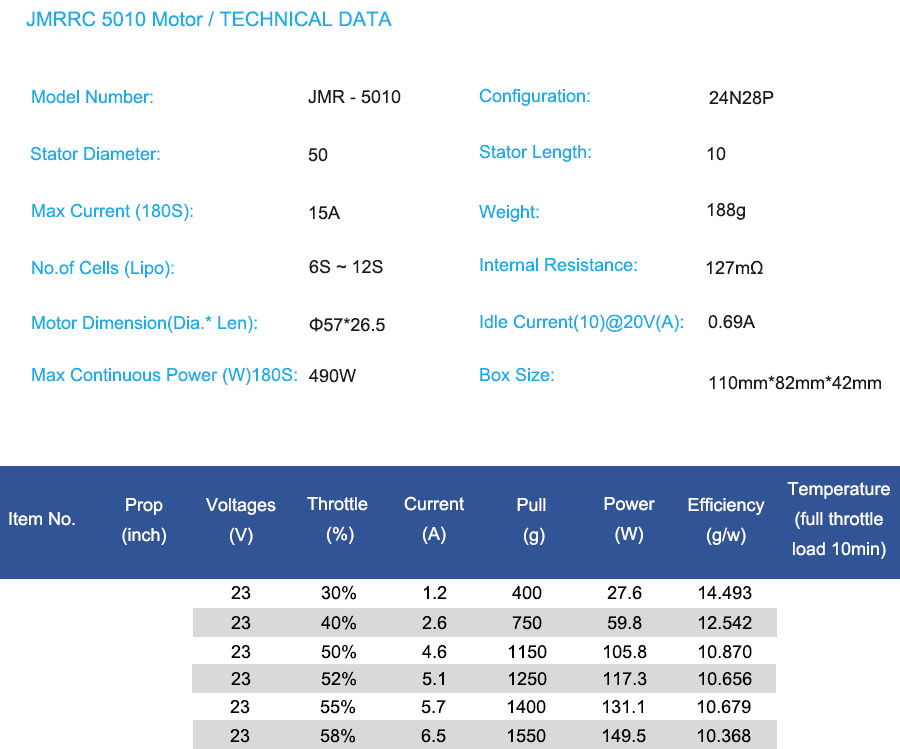

Techinical Data:

model number: Z5s 5010

Configuration: 24N28P

Stator Diameter: 50

Stator Length: 10

Max Current (180S): 15A

Weight: about 188g

No.of cells (Lipo): 6s - 12S

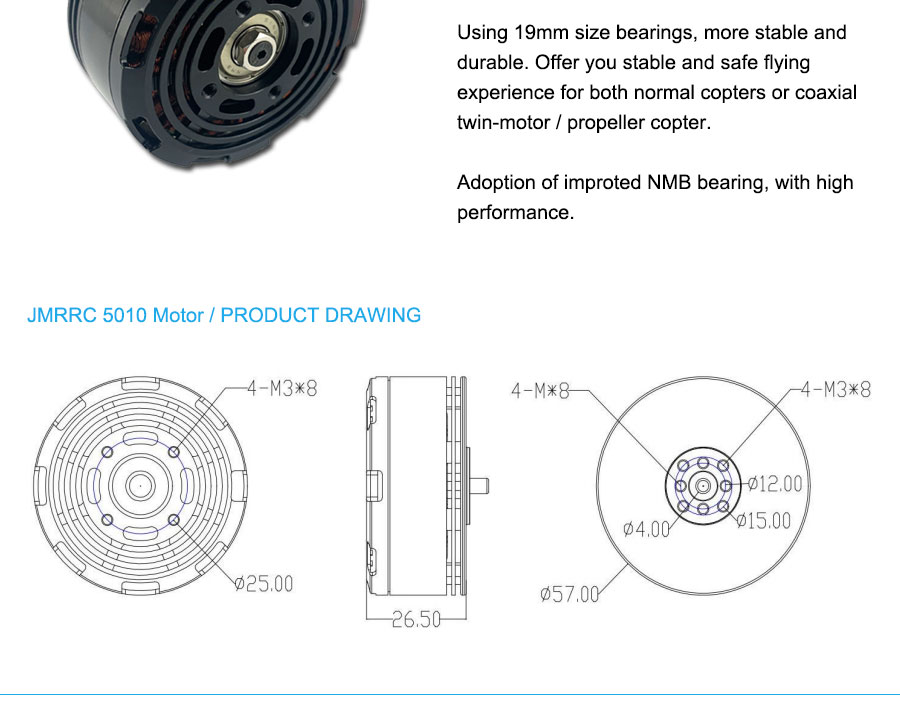

Motor Dimension(Dia.*Len): 57*26.5mm

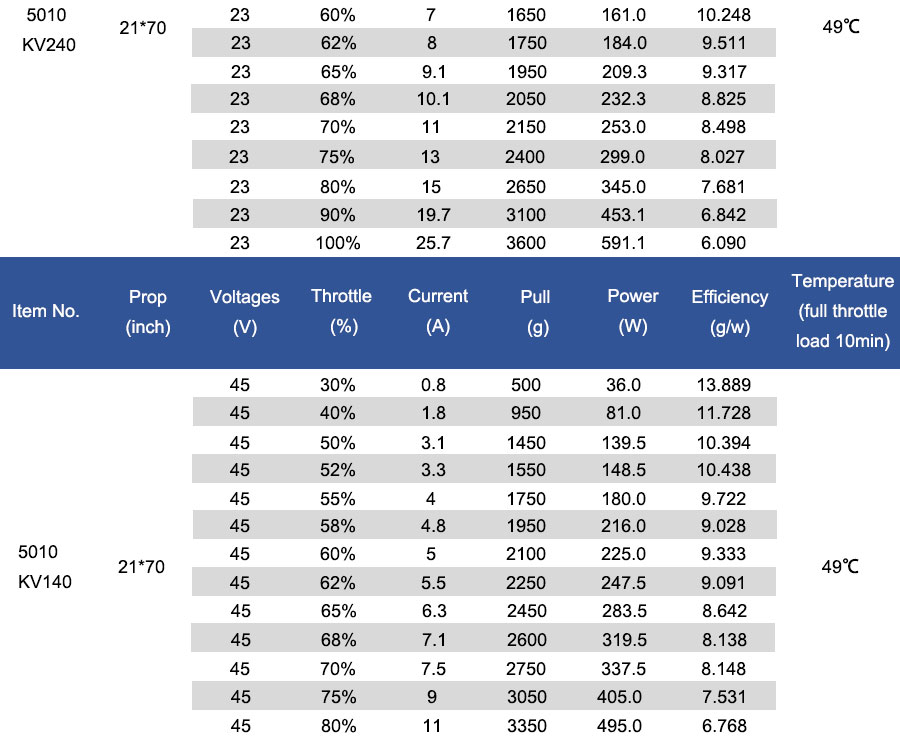

Real Testing Data on the Quadcopter Drone:

The Quadopter take-off weight is 3.78kg (with 1pcs of 6S 16000mAh battery), the hovering time is 72 mintues.

The Quadcopter take-off weight is 4.88kg (with payload weight 1.1kg and using 1pcs of 6S 16000mAh battery), the hovering time is 48 mintues.

The Quadcopter take-off weight is 7.78kg (with payload weight 4kg and using 1pcs of 6S 16000mAh battery), the hovering time is 24 mintues.





Z5s 5010 240KV / 140KV High Torque Brushless Motors For Multicopter Quadcopter Multi-Axis Aircraft
