Z5 PRO 12S Power System 150KV Brushless Motor For Multirotor Drone Quadcopter

  • Model Number: Z5 PRO
  • N.W.: 430g (with propeller)

  • Parameters
  • Model Number: Z5 PRO
  • N.W.: 430g (with propeller)

Z5 PRO 12S Power System 150KV Brushless Motor For Multirotor Drone Quadcopter Electronic Speed Regulator Combo JMRRC



Package Including:

Z5 PRO motor & ESC combo * 1pcs

22*7.0inch propeller with adaptor * 1pcs

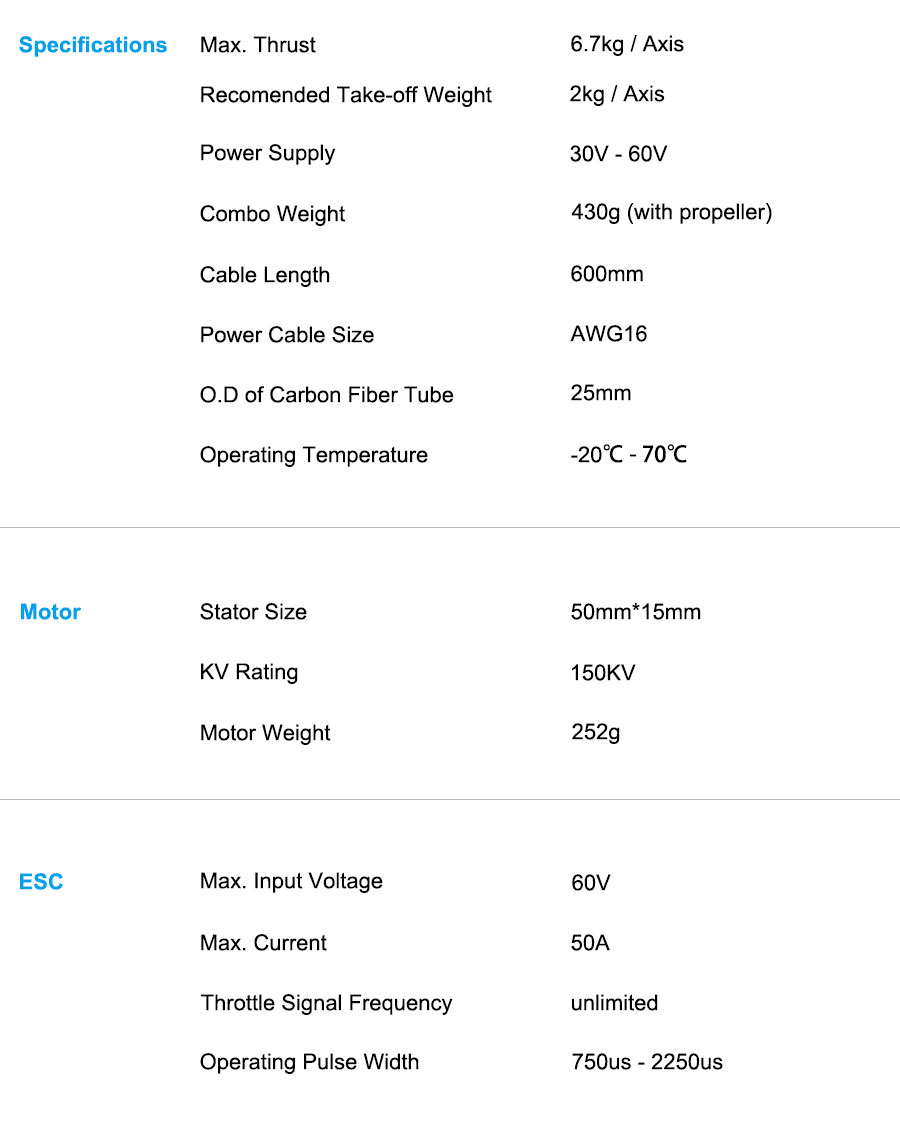

Power Combo Specification:

Max.Thrust: 6.7kg/Axis

Recommended take-off weight: 2kg/Axis

Power supply: 30V-60V

Combo weight: 430g (with propeller)

Cable length: 600mm

Power cable size: AWG16

O.D of carbon fiber tube: 25mm

Operating temperature: -20℃-70℃


Motor Specification:

Stator size: 50mm*15mm

KV rating: 150KV

Motor weight: 252g


ESC Specification:

Max. input voltage: 60V

Max. current: 50A

Throttle signal frequency: unlimited

Operating pulse width: 750us-2250us

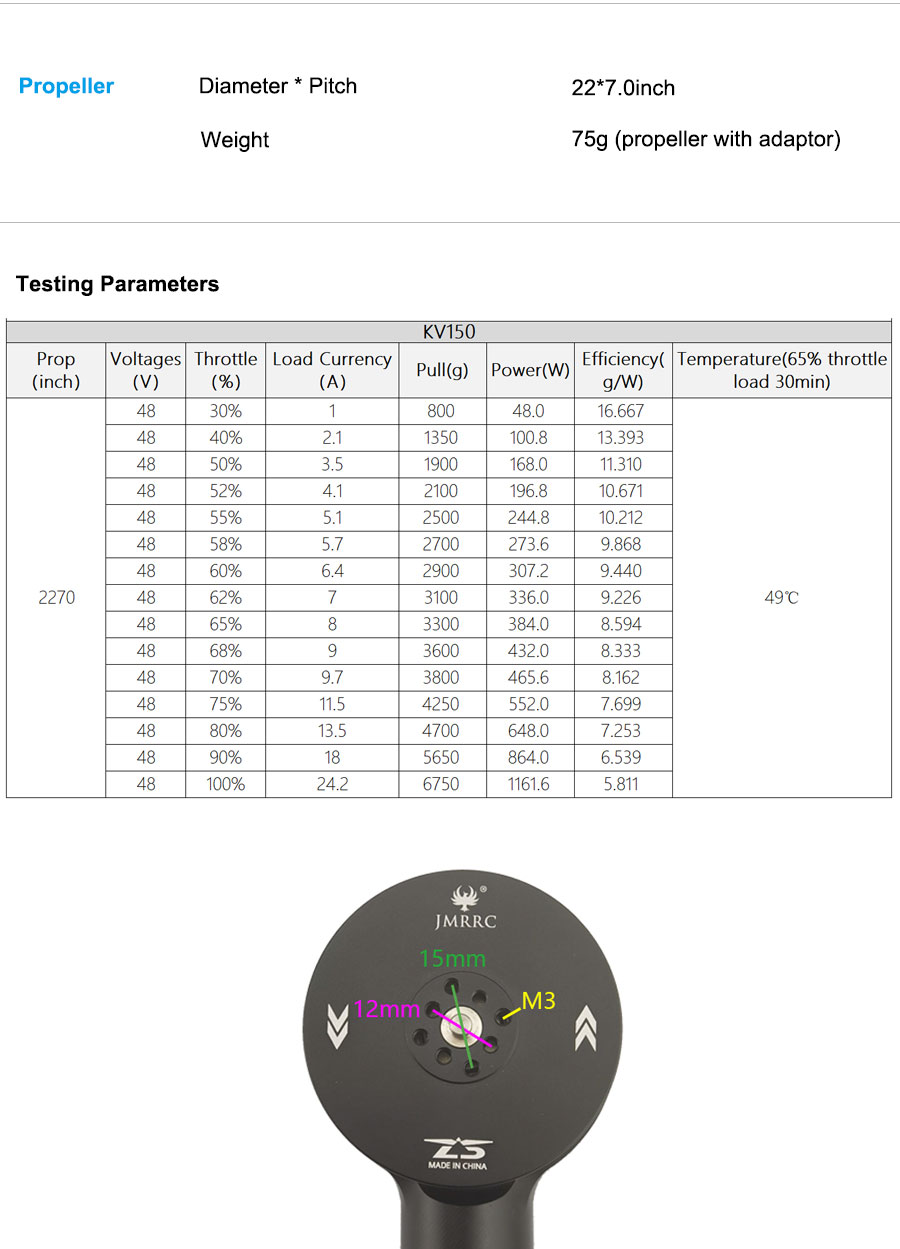

Propeller Specification:

Diameter*Pitch: 22*7.0inch

Weight: 75g (propeller with adaptor)







Z5 PRO 12S Power System 150KV Brushless Motor For Multirotor Drone Quadcopter
